Public Hands Free Service Emergency Phone Tower for Disable Person

Public Hands Free Service Emergency Phone Tower for Disable Person

Brand Name:	J&R
Model Number:	JR315
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Material:

SUS Steel

Customized:

Yes

Warranty:

2 Years

Weather Protection:

IP65

Camera:

Yes

Handsfree:

Yes

Vandal Resistant:

Yes

Unit Size:

650 *300 *60 (mm)

Weight:

45KG

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

campus emergency phones

telephone pillar

Emergency Phone Tower pillar mounting

Product Description

Vandal proof SOS Telephone Pillar with Video for Public/ the disabled

The Handsfree Telephone is designed to meet the needs of client who experience loss through vandalism. Ideal for campus, subway station, bus station, parking lots, prisons, railway/metro platforms, hospitals, police stations,outside building etc.

Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.

MAIN FEATURES

- SOS-Video Pillar

- Finished in contrasting colours, with a raised 32mm button. Raised text, Induction Loop facility for hearing impaired

- Hands-free loudspeaking communications for any public area,with Media converter

- Dual purpose design for surface or pillar mounting, simple installation

- Robust/Weather resistant: IP65

- Dual button autodial for emergency call

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- CE, FCC, RoHS compliant

APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Camera

Video Codec: H.264 HP,MPEG4 SP,MJPEG

Resolution Ratio: 1,280*720@20 fps

Sensitivity: 0.5Lux,1.0V/lux-sec (550nm)

Viewing angle: 135'(H),109'(V)

Video Compression Output: 16Kbps - 2Mbps

FPS: 10-30 fps

D-Range: 71dB(SNRMAX = 42.3dB)

Technical Specifications

Casing Material: Brushed Stainless steel help point and CRS structure for the pillar

Colors: Brushed Stainless Steel

Optional : RED, YELLOW, GREY

Handset Material: No handset

Keypad: No keypad

Temperature: Operating: -30°C to +70°C

Storing: -40°C to +75°C

Weather Resistance: IP65

Ringing Tone: Shrill warble tone 90 dBA @ 1 metre typical

Hook switch: Hands free Operation

M.T.B.F. : Calculated to have an M.T.B.F. in excess of 50,000 hours using

Weight: Up to 45kg depending on option

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

Package

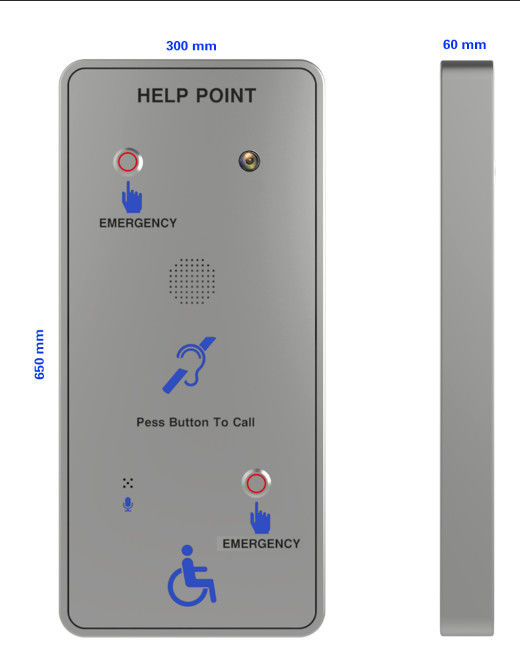

Help Point Unit Size: 650 *300 *60 (mm)

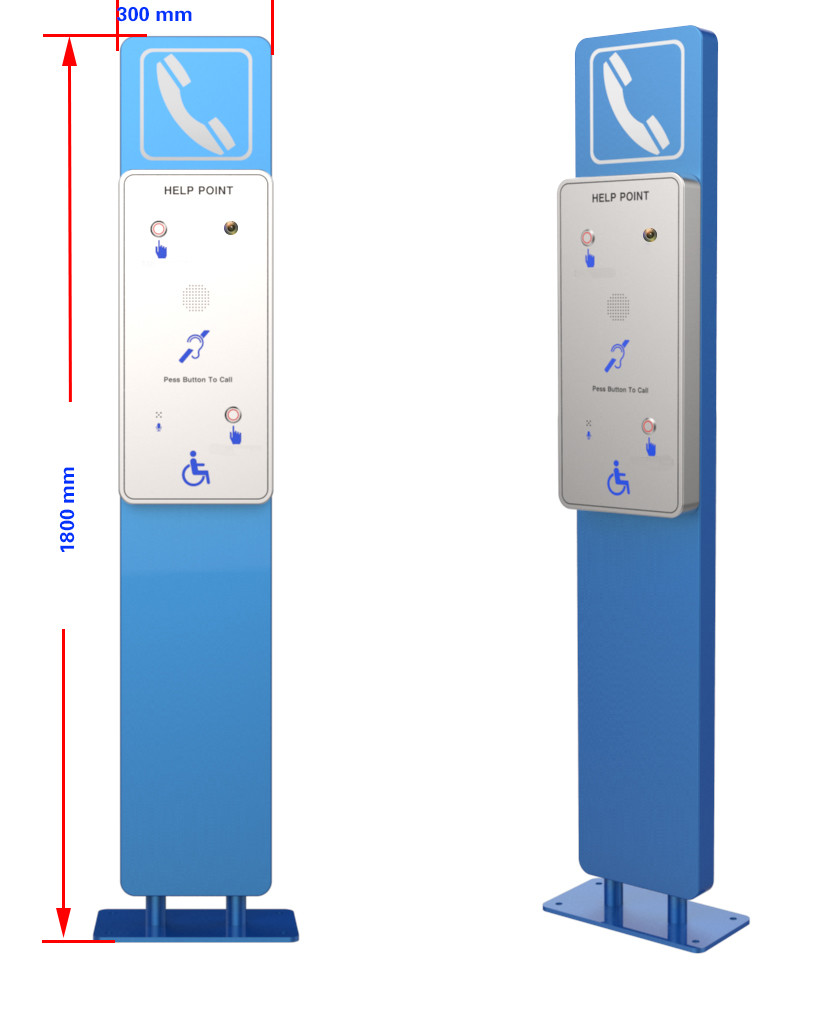

Pillar Size:1800 (H) *300 (W) ( mm )

Packaging materials: pearl cotton, carton

Net weight: 45 KG

Gross weight: 50 KG
