GSM / 3G / Wireless Emergency Phone Tower with Solar Powered For Highway Roadside

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR-306-SC-SP
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Detail Information
Material: Aluminum Alloy For Phone Unit, Cold Rolled Steel For Pillar Weather Resistant: IP67
Warranty: 2 Years Installation: Pillar Mounting
Color: Orange, Yellow, Red (or Optional) Size: 2400 X 436 X 306 Mm
Net Weight: 45 KG Vandal Resistant: Yes
High Light:

campus emergency phones


emergency call stations


Highway Roadside Emergency Phone Tower

Product Description

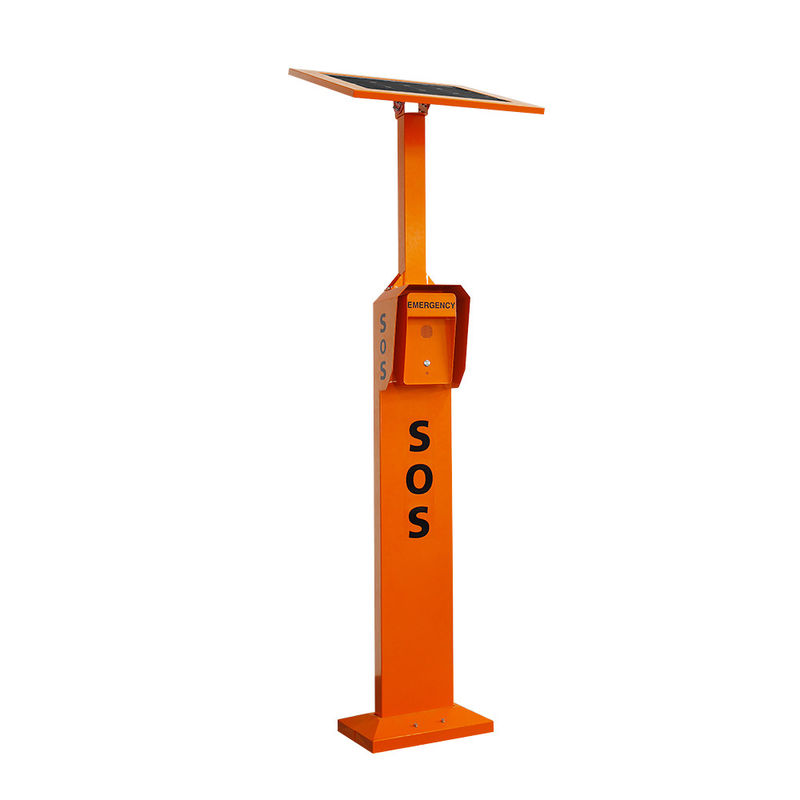

Vandal-proof GSM / 3G Emergency Phone Tower with Solar Powered for Highway


The Quad-band 3G module covers wireless ranges across most of the globe.

3G connection offers wireless communications to provide a completely standalone telephone installation. The 3G phone greatly reduces installations costs by eliminating running wires.


The unit can be mains, battery, or solar powered, and phone working in temperatures of -20 °C to +60 °C, ideal for hostile environments.


Typical installations include civil construction sites, bus or rail stations, highway, anywhere that laying cable is prohibitive.

Main Features

- Standard GSM/3G phone

- External Antenna with long cable

- Aluminum alloy die-casting body for phone, and cold rolled steel for pillar


- Weather resistant: IP65-IP67

- Built-in auto-dialer, 2-way hands-free communication with built-in speaker and microphone

- Vandal resistant metal button programmable for speed dial


- Support message function for low battery, door opening & low signal strength.

- Pole mounting, simple installation

- Standard or Customized units


- Supplied with 12VDC Power Supply or solar powered

- Solar panels and batteries are sized according to the installation location. A charger, batteries and other equipment mount inside the tower.


This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.


Technical Parameters

Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C


3G Version
Power Supply 12V DC
Power Consumption -Idle:0.3W
-Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS

A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz


Unit size: 2400 *436 *306 (mm)

Packaging materials: Pearl cotton, Wooden Box

Net weight: 45 KG

Gross weight: 50 KG


GSM / 3G / Wireless Emergency Phone Tower with Solar Powered For Highway Roadside 0

GSM / 3G / Wireless Emergency Phone Tower with Solar Powered For Highway Roadside 1

GSM / 3G / Wireless Emergency Phone Tower with Solar Powered For Highway Roadside 2
