Handfree Weatherproof Emergency Call Stations Analogue Sos Intercom Vandal Resistant

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR321
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Detail Information
Material: Aluminum Alloy For Phone Unit, Cold Rolled Steel For Pillar Weather Resistant: IP67
Warranty: 2 Years Installation: Pillar Mounting
Color: Blue, Orange, Yellow Size: 300 *220 *800 (mm)
Net Weight: 15 KG Vandal Resistant: Yes
Version: Analogue, SIP/VoIP, GSM/3G
High Light:

campus emergency phones


emergency call stations

Product Description

Handfree Weatherproof Phone, Analogue Sos Intercom, Vandal Resistant Emergency Telephone

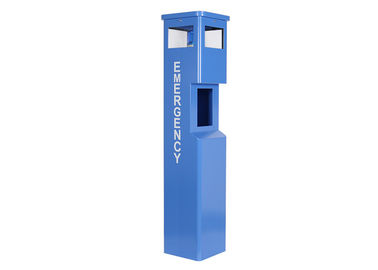

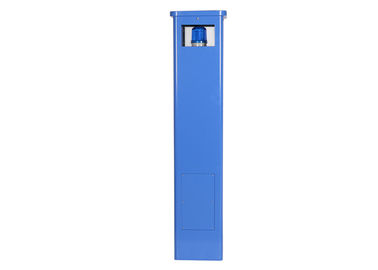

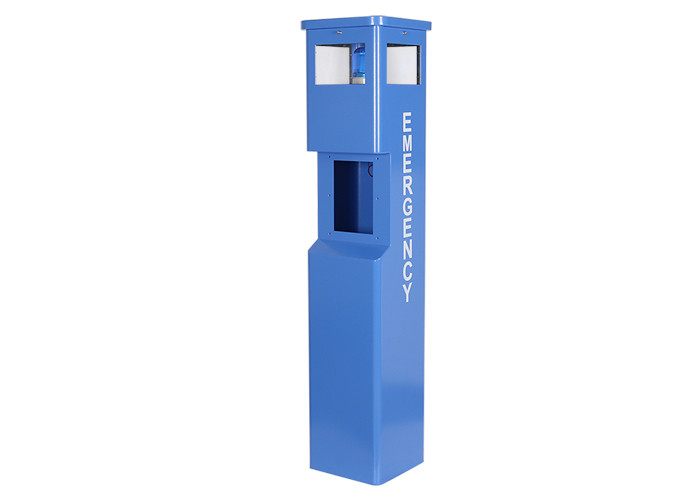

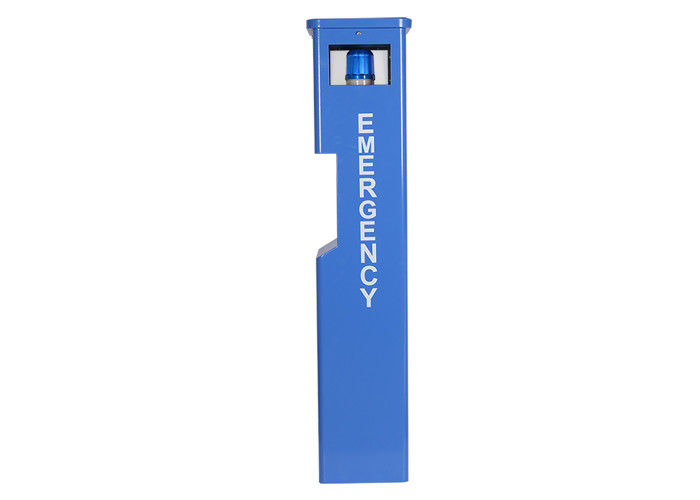

The Blue Light Emergency Help Point, is based on a cold rolled steel with powder coated body, and stainless faceplate, offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times. It is an ideal security solution for remote and high-risk areas.

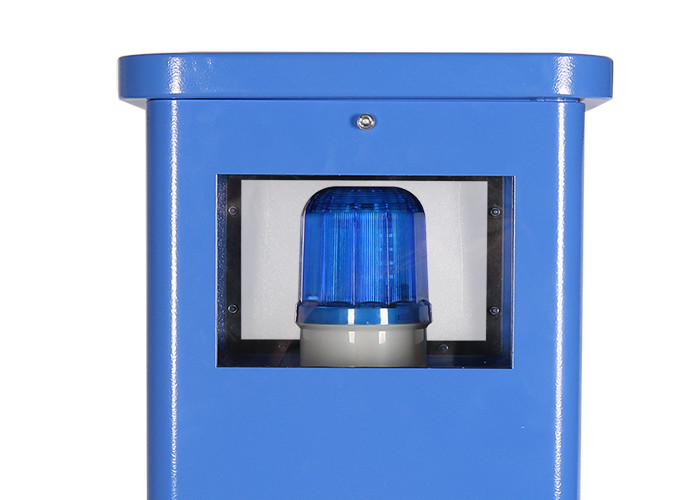

This vandal-resistant help point serves as a great deterrent to crime. An always-lit LED Blue Light mounted atop the tower provides high visibility and gives passers-by a sense of security. Emergency call can be placed with a simple push of a button.

Main Features:



l Vandal resistant metal button programmable for speed dial

l Support message function for low battery, door opening & low signal strength.

l Pole mounting, simple installation

l Standard or Customized units



l Standard SIP phone

l Aluminum alloy die-casting body for phone, and cold rolled steel for pillar

l Weather resistant: IP65-IP67

l Built-in auto-dialer, 2-way hands-free communication with built-in speaker and microphone


l CE, FCC, RoHS, ISO9001:2015 compliant

l External power supply or PoE (SIP-VoIP)

l RJ45 port for SIP phone

l Solar panels and batteries are sized according to the installation location. A charger, batteries and other equipment mount inside the tower.


This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.


Technical Parameters

SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)


Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Packaging Details

Unit size: 300 *220 *800 (mm)
Packaging materials: Pearl cotton, Wooden Box
Net weight: 20 KG
Gross weight: 30 KG


Our Company

J&R is a China-based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model available for Analogue version, IP/SIP version,GSM/3G version)
After well study your information, we sincerely hope to enter into partnership with your esteemed company. and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and cost-effective solution to support you with the project requirement and marketing proposal.
