| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR321-SC-SP |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets per month |
| Material: | Aluminum Alloy For Phone Unit, Cold Rolled Steel For Pillar | Weather Resistant: | IP67 |
|---|---|---|---|
| Warranty: | 2 Years | Installation: | Pillar Mounting |
| Color: | Blue, Orange, Yellow | Size: | 305 X 254 X 3249 Mm |
| Net Weight: | 130 Kg | Vandal Resistant: | Yes |
| Version: | Analogue, SIP/VoIP, GSM/3G | ||
| High Light: | emergency call stations,telephone pillar,Impact Resistant Emergency Telephone |
||

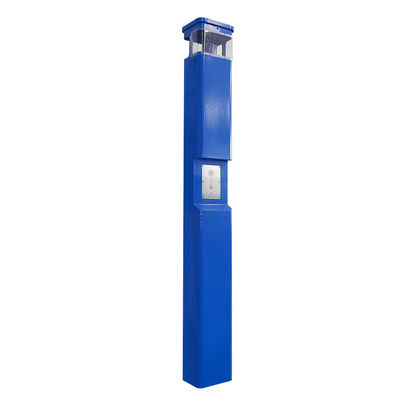

Vandal-proof VoIP Emergency Telephones for Highways, IP67 Roadside SIP SOS Call Boxes
Main Features:
- Standard SIP phone
- Aluminum alloy die-casting body for phone, and cold rolled steel for pillar
- Weather resistant: IP65-IP67
- Built-in auto-dialer, 2-way hands-free communication with built-in speaker and microphone
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- Solar panels and batteries are sized according to the installation location
- A charger, batteries and other equipment mount inside the tower
- Vandal resistant metal button programmable for speed dial
- Support message function for low battery, door opening & low signal strength
- Pole mounting, simple installation
- Standard or Customized units
- CE, FCC, RoHS, ISO9001:2015 compliant
Applications

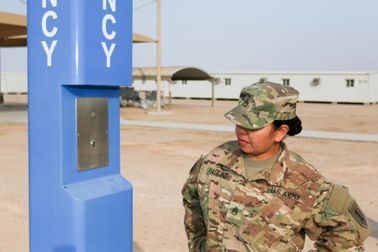

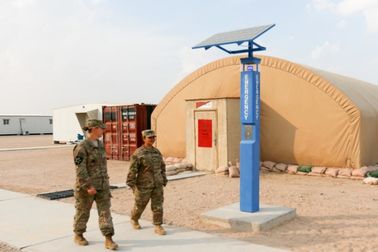

This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.
Technical Parameters
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package
Unit size: 2703 *340 *330 (mm)
Packaging materials: pearl cotton, wooden box
Net weight: 120 KG
Gross weight: 130 KG
