Vandal Proof Hands Free SOS Telephone With Camera

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001:2015
Model Number: JR315-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Detail Information
Material: Stainless Steel For Phone Unit, Cold Rolled Steel For Pillar Weather Resistant: IP65
Warranty: 2 Years Installation: Pillar Mounting
Color: Grey Size: 1800*300 *90 (mm)
Net Weight: 45 KG Vandal Resistant: Yes
Power Supply: PoE
High Light:

Vandal Proof SOS Telephone

,

Hands Free SOS Telephone With Camera

,

Vandal Proof Telephone With Camera


Product Description

Vandal Proof Hands Free SOS Telephone, With Camera for and Public





The Handsfree SOS Telephone with camera is designed to meet the needs of client who experience loss through vandalism.

Emergency Video Help Point, Brushed stainless steel body, 2 Buttons,with built-in induction loop

Unit size:300*60*650(mm)

Housed in a weatherproof, SUS enclosure, wall-mounting or Pillar mounting

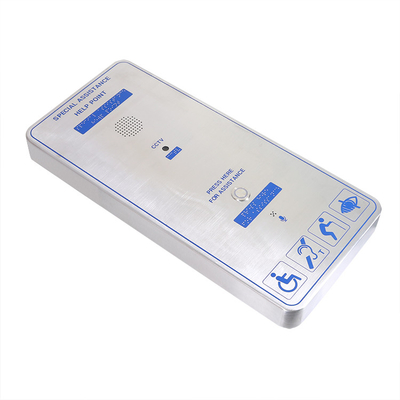

Vandal Proof Hands Free SOS Telephone With Camera 0






Main Features:



- SOS-Video Pillar

- Standard SIP Phone

- Finished in contrasting colours, with a raised 32mm button. Raised text, Induction Loop facility for hearing impaired

- Hands-free loudspeaking communications for any public area,with Media converter

- Dual purpose design for surface or pillar mounting, simple installation

- Robust/Weather resistant: IP65

- Dual button autodial for emergency call

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- CE, FCC, RoHS, ISO9001 compliant





Technical Specifications



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)






Camera Features of Intrinsically Safe Telephone

Video Codec:                                H.264 HP,MPEG4 SP,MJPEG

Resolution Ratio:                         1,280*720@20 fps

Sensitivity:                                    0.5 Lux,1.0V/lux-sec (550nm)

Viewing Angle:                             135'(H),109'(V)

Video Compression Output:       16Kbps - 2Mbps

FPS:                                               10-30 fps

D-Range:                                        71dB (SNRMAX = 42.3dB)





Applications


This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations,

outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.

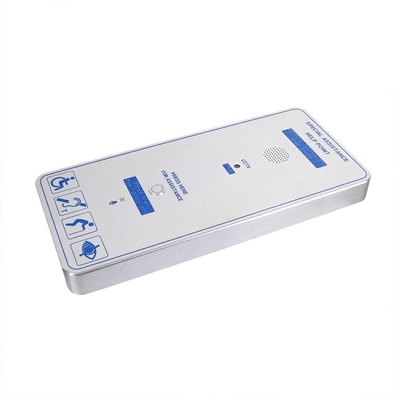

Vandal Proof Hands Free SOS Telephone With Camera 1





Package



Help Point Unit Size: 650 *300 *60 (mm)

Pillar Size:1800 (H) *300 (W) ( mm )

Packaging materials: pearl cotton, carton

Net weight: 45KG

Gross weight: 50KG

Vandal Proof Hands Free SOS Telephone Pillar With Camera And Dual Auto Dial Button 1
