Solar Powered Roadside Emergency Phone With Pillar Mounting

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR-TP-04
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Detail Information
Material: Aluminum Alloy For Phone Unit, Cold Rolled Steel For Pillar Weather Resistant: IP67
Power Supply: PoE Warranty: 2 Years
Color: Orange, Yellow, Red (or Optional) Size: 2400 *436 *306 (mm)
Net Weight: 45 KG Vandal Resistant: Yes
Installation: Pillar Mounting
High Light:

Solar Powered Roadside Emergency Phone

,

Pillar Mounting Roadside Emergency Phone

,

Pillar Mounting Solar Powered Emergency Phone


Product Description

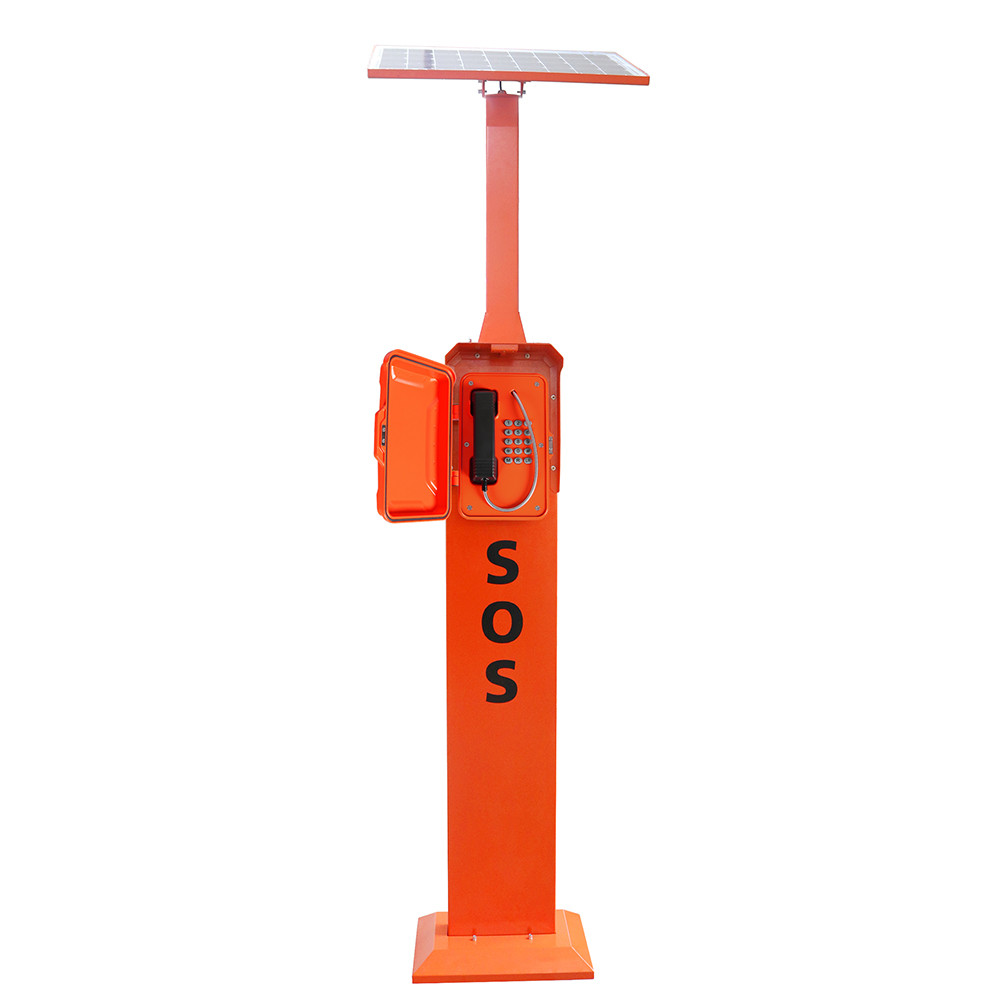

Roadside Emergency Telephone Tower Pillar Mounting

This Solar Powered Roadside Emergency Telephone Tower is an ideal security solution for remote and high-risk areas. Painted for outdoor use, this vandal-resistant emergency telephone tower serves as a great deterrent to crime.



To use this emergency telephone, simply press the button and the safety&security will be dialed automatically. With solar powered, it is very cost-effective. And the emergency phone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.





APPLICATIONS

They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.

Roadside SOS Call Points.png





MAIN FEATURES



- There are 3 options for the connecting (analogue, VoIP, GSM/3G)

- Programmable for speed-dialing (PPT)

- Weather protection IP65-IP67

- Can be programmed remotely

- Telephone line powered for analogue phone

- Additional power supply required for VoIP or GSM type

- The material of the tower is cold rolled steel with powder coated body.

- Solar panels and batteries are sized according to the installation location. A charger, batteries and other equipment mount inside the tower.

- Vandal-resistant structure and coating designed to resist extreme weather conditions

- A variety of signage, graphics and colors choices are available

- CE, FCC, RoHS, ISO9001 Compliant




TECHNICAL SPECIFICATIONS



SIP Version
Power Supply PoE or 12V DC
Power Consumption - Idle:1.5W
- Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



3G Version
Power Supply 12V DC
Power Consumption - Idle:0.3W
- Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency

A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C





PACKAGE & DIMENSIONS

Unit size: 2400 *436 *306 (mm)

Packaging materials: pearl cotton, wooden box

Net weight: 40 KG

Gross weight: 50 KG
