Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel

China Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel supplier
Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel supplier Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel supplier Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel supplier Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel supplier

Large Image :  Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR-306-SC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Material: Aluminum Alloy For Phone Unit, Cold Rolled Steel For Pillar Weather Resistant: IP67
Power Supply: PoE Warranty: 2 Years
Color: Orange, Yellow, Red (or Optional) Size: 2400 *436 *306 (mm)
Net Weight: 45 KG Vandal Resistant: Yes
Installation: Pillar Mounting

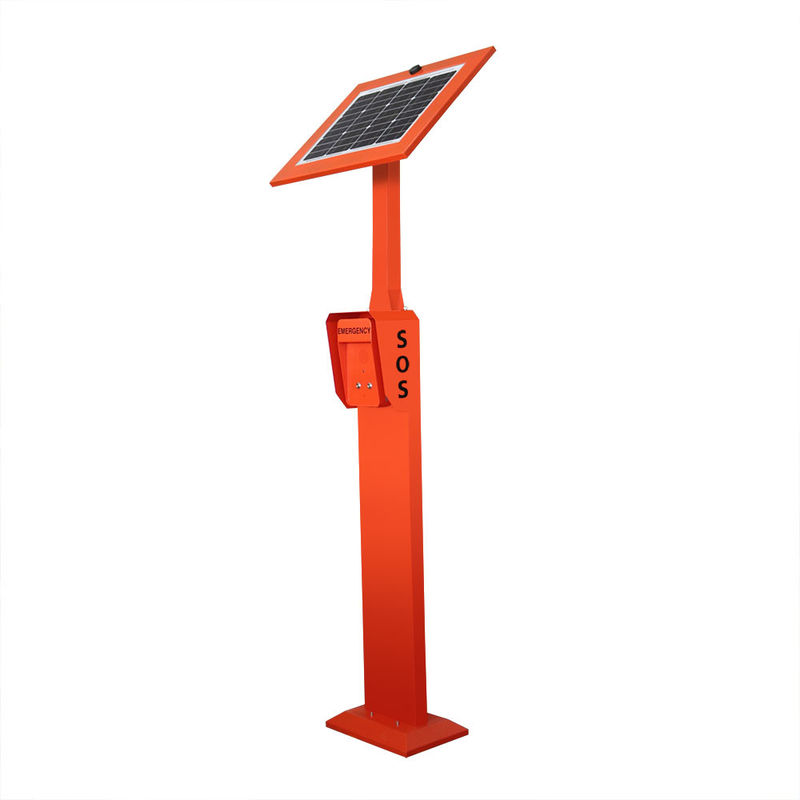

Solar Powered Highway Emergency Telephone, Roadside Emergency Call Box with Solar Panel

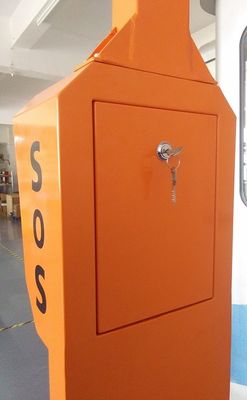

This Highway VoIP Emergency Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.





Solar Powered Highway Emergency Telephone Applications
This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.

Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel

Solar Powered Highway Emergency Telephone Main Features:

l Standard GSM,3G phone

l External Antenna with long cable

l Aluminum alloy die-casting body for phone, and cold rolled steel for pillar

l Weather resistant: IP65-IP67



l Built-in auto-dialer, 2-way hands-free communication with built-in speaker and microphone

l Vandal resistant metal button programmable for speed dial

l Support message function for low battery, door opening & low signal strength

l Pole mounting, simple installation



l Standard or Customized units

l Supplied with 12V DC Power Supply or solar powered

l Solar panels and batteries are sized according to the installation location. A charger, batteries and other equipment mount inside the tower.

l CE, FCC, RoHS, ISO9001:2015 compliant





Technical Parameters

3G Version
Power Supply  12V DC
Power Consumption  -Idle:0.3W
 -Active: 1.5W
Communication Type  Full duplex
Ringer volume  90~95dB(A) at a distance of 1 m
Program Method  Remote programming by SMS
Frequency

 A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C




Package

Unit size: 2400 *436 *306 (mm)

Packaging materials: Pearl cotton, Wooden Box

Net weight: 45 KG

Gross weight: 50 KG



Highway Roadside Solar Powered Emergency Phone Call Box IP67 With Solar Panel



Our Company

J&R is a China-based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model available for Analogue version, IP/SIP version,GSM/3G version)
After well study your information, we sincerely hope to enter into partnership with your esteemed company. and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and cost-effective solution to support you with the project requirement and marketing proposal.
