Solar Powered Emergency Phone
Created with Pixso.

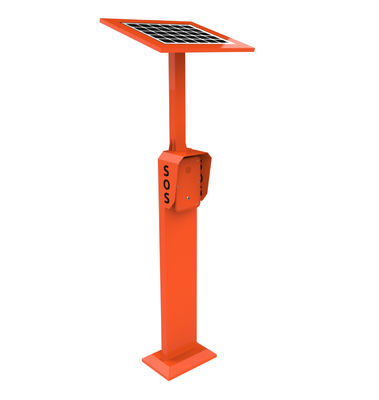

Rugged Hands Free 3G Solar Powered Emergency Phone For Shopping Malls / Streets

Rugged Hands Free 3G Solar Powered Emergency Phone For Shopping Malls / Streets

Brand Name: J&R
Model Number: JR-TP-04
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, IP67, ISO9001:2015
Material:
Aluminum Alloy For Phone Unit, Cold Rolled Steel For Pillar
Weather Resistant:
IP67
Power Supply:
PoE
Warranty:
2 Years
Color:
Orange, Yellow, Red (or Optional)
Size:
2400 *436 *306 (mm)
Net Weight:
45 KG
Vandal Resistant:
Yes
Installation:
Pillar Mounting
Packaging Details:
pearl cotton, carton
Supply Ability:
1000 sets per month
Highlight:

highway call box

,

outdoor emergency phone

,

3G Solar Powered Emergency Phone

Product Description

Rugged Handsfree 3G Emergency Telephone with Solar Powered for Roadside



This Highway VoIP Emergency Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.





Applications
This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.



Main Features:

l Standard GSM,3G phone

l External Antenna with long cable

l Aluminum alloy die-casting body for phone, and cold rolled steel for pillar

l Weather resistant: IP65-IP67



l Built-in auto-dialer, 2-way hands-free communication with built-in speaker and microphone

l Vandal resistant metal button programmable for speed dial

l Support message function for low battery, door opening & low signal strength

l Pole mounting, simple installation



l Standard or Customized units

l Supplied with 12V DC Power Supply or solar powered

l Solar panels and batteries are sized according to the installation location. A charger, batteries and other equipment mount inside the tower.

l CE, FCC, RoHS, ISO9001:2015 compliant





Technical Parameters

3G Version
Power Supply  12V DC
Power Consumption  -Idle:0.3W
 -Active: 1.5W
Communication Type  Full duplex
Ringer volume  90~95dB(A) at a distance of 1 m
Program Method  Remote programming by SMS
Frequency

 A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C




Package

Unit size: 2400 *436 *306 (mm)

Packaging materials: Pearl cotton, Wooden Box

Net weight: 45 KG

Gross weight: 50 KG
