| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001:2015 |
| Model Number: | JR321-SC |
| Minimum Order Quantity: | 1 set |
| Price: | US$299-US$499 |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets per month |
| Material: | Stainless Steel For Phone Unit, Cold Rolled Steel For Pillar | Weather Resistant: | IP65 |
|---|---|---|---|
| Warranty: | 2 Years | Installation: | Pillar Mounting |
| Color: | Bule, Orange, Yellow (or Optional) | Size: | 2703 *340 *300 (mm) |
| Net Weight: | 130 KG | Vandal Resistant: | Yes |
| Power Supply: | 12V DC, Or Solar Powered | ||
| High Light: | highway call box,emergency call box,Roadside Campus emergency call box |
||
⊢ Product Description ⊣

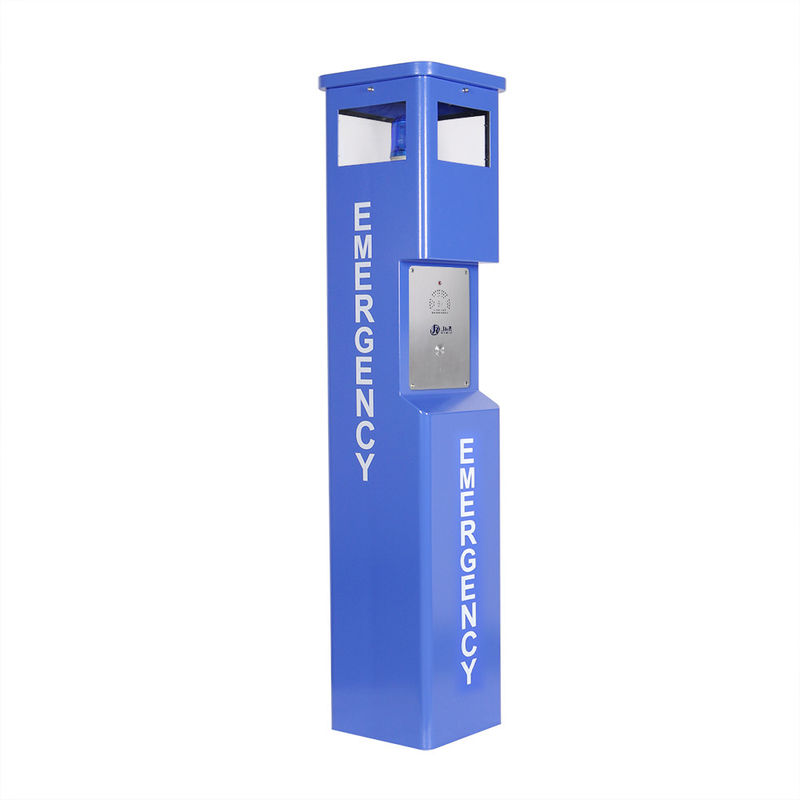

Blue Light Emergency Phones and Call Boxes for Roadside, Park, Campus
JR321-SC Emergency Phone Tower is an ideal security solution for remote and high-risk areas.
Standing over nine feet tall, this vandal-resistant tower serves as a great deterrent to crime.
An always-lit LED Blue Light mounted atop the tower provides high visibility and gives passers-by a sense of security.
At the same time, the LED Blue Light begins to flash, attracting attention to the location.
The Emergency Phone faceplate is illuminated at all times for clear visibility during the night.
Patrons can call emergency personnel with a simple push of a button.
| Telephone Versions | Analogue,SIP,GSM,3G,4G Optional |
| Operating Temperature | -30°C to +65°C |
| Storing Temperature | -40°C to +75°C |
| Ringing Tone | 80 dBA at 1 metre typical |
| M.T.B.F. | excess of 50,000 hours using |
| Power Supply | telephone line or DC or solar powered |
| Weather Resistance | IP65 |
| Casing Material | cold rolled steel |
⊢ Technical Specification ⊣
Blue Light Emergency Phones and Call Boxes for Roadside, Park, Campus
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +75°C |
⊢ Selling Points ⊣
Blue Light Emergency Phones and Call Boxes for Roadside, Park, Campus
✦ Power over Ethernet
✦ DTMF control of relays
✦ Fast-fit terminal connection
✦ Weather proof protection to IP65
✦ Vandal-proof cold rolled steel body with stainless steel face plate
✦ Attention-getting LED Blue Light is included and mounted atop the unit
⊢ Packing & Delivery ⊣
Blue Light Emergency Phones and Call Boxes for Roadside, Park, Campus
| Unit Size | 300 *340 *2703(mm) |
| Carton Size | 370 *330 *2900 (mm) |
| Packaging Materials | Pearl cotton, Woonden box |
| Net Weight | 130 KG |
| Gross Weight | 150 KG |
| Port | Shenzhen, Guangdong | |||
|
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated |
|
⊢ Our Services ⊣
Blue Light Emergency Phones and Call Boxes for Roadside, Park, Campus
◈ ODM & OEM products or solutions
◈ Sample order is greatly welcomed
◈ We will reply your inquiry within 12 hours
◈ Update the productive process and show the packing details
◈ After delivered the goods, we will track the products for you once every two days, until you get the products.
◈ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
⊢ Our Company ⊣
Blue Light Emergency Phones and Call Boxes for Roadside, Park, Campus
J&R is China based design and manufacturer of rugged communications equipment.
Our telephones and systems work, and last, in environments where regular products wouldn’t.
(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Versio,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay
and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
⊢ FAQ ⊣
Blue Light Emergency Phones and Call Boxes for Roadside, Park, Campus
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
