GSM / 3G Solar Powered Speed Dial Emergency Phone For Expressway / Highway

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR306-SC-SP
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Detail Information
Material: Cold Rolled Steel Weather Resistant: IP67
Power Supply: Solar Powered Color: Orange, Yellow (or Optional)

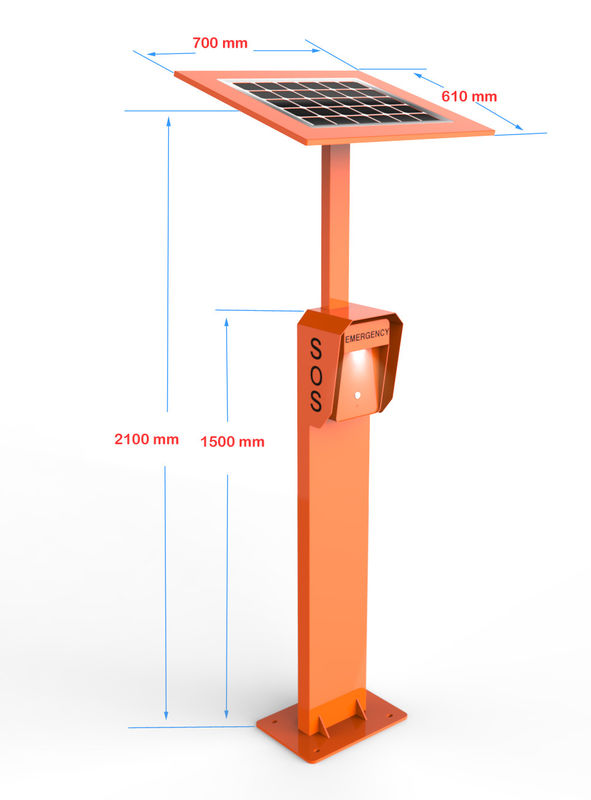

Net Weight: 45 KG Size: 2100 *436 *306 (mm)
Warranty: 2 Years Installation: Pillar Mounting
High Light:

highway call box

,

emergency call box


Product Description

Corrosion Resistant GSM/3G Emergency Call Box for Expressway



Housed in cold rolled steel box and manufactured to a high standard, this Roadside Emergency Telephone offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.







Applications
This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.




Main Features:

l Standard GSM,3G phone

l External Antenna with long cable

l Aluminum alloy die-casting body for phone, and cold rolled steel for pillar

l Weather resistant: IP65-IP67



l Built-in auto-dialer, 2-way hands-free communication with built-in speaker and microphone

l Vandal resistant metal button programmable for speed dial

l Support message function for low battery, door opening & low signal strength

l Pole mounting, simple installation



l Standard or Customized units

l Supplied with 12V DC Power Supply or solar powered

l Solar panels and batteries are sized according to the installation location. A charger, batteries and other equipment mount inside the tower.

l CE, FCC, RoHS, ISO9001:2015 compliant






Technical Parameters

3G Version
Power Supply  12V DC
Power Consumption  -Idle:0.3W
 -Active: 1.5W
Communication Type  Full duplex
Ringer volume  90~95dB(A) at a distance of 1 m
Program Method  Remote programming by SMS
Frequency

 A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz



Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C



Package

Unit size: 2100 *436 *306 (mm)

Packaging materials: Pearl cotton, Wooden Box

Net weight: 45 KG

Gross weight: 50 KG
