3G / 4G Roadside Hands Free SOS Call Box , Vandal Proof Highway Emergency Phone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR330-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Cold Rolled Steel Color: Yellow , Red
Warranty: 2 Years Weather Protection: IP65
Lockable: Yes, With Key Vandal Resistant: Yes
Unit Size: 530 *280 *200(mm) Gross Weight: 10 KG
High Light:

Vandal Proof Highway Emergency Phone

,

Roadside Hands Free SOS Call Box

,

Vandal Proof SOS Call Box


Product Description

Roadside Hands-free 3G/4G SOS Call Box, Vandal-proof Highway Emergency Phone



This roadside emergency 3G/4G telephone is designed for outdoor use, based on a cold rolled steel with powder coated body, and stainless faceplate, offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.



GSM/ 3G connection offers wireless communications to provide a completely standalone telephone installation. The GSM phone greatly reduces installations costs by eliminating running wires.





APPLICATIONS

It is ideal for Highway side use, other than that, it is often used at university and college campuses, streets, public square, car-parks, police stations, outside buildings, shopping malls, industrial areas and remote areas.

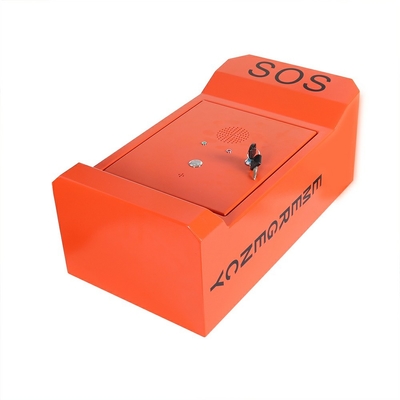

3G / 4G Roadside Hands Free SOS Call Box , Vandal Proof Highway Emergency Phone 0





MAIN FEATURES

- Standard SIP/VoIP, GSM/3G telephone

- Robust housing, constructed of cold rolled steel

- Vandal resistant metal button

- Hands free operation

- Wall/ Pillar mounting, simple installation

- Weather proof protection: up to IP65

CE, FCC, RoHS, ISO9001 compliant

- Supplied with 12VDC Power Supply (GSM/3G version)

- External power supply or PoE (SIP version)

- RJ45 Port for SIP connection

- Compatible with standard SIP protocol, independently accessible to VOIP phone system.

  (Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX)

- One button programmable for speed dial

- Single or Dual button auto-dial options with remote programming

- Two indicators: one for power supply; one for phone state

- Support message function for low battery, door opening & low signal strength





OPTIONAL

- Add Horn & Lamp on the top

- Key lockable latch

- Upper & lower internal mounting plates

- Flat label area or custom embossed logo on door

- Vandal resistant screws for upper mounting plate





TECHNICAL PARAMETERS

3G Version
Power Supply 12V DC
Power Consumption -Idle:0.3W
-Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency

A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)





Package

unit size: 530 *280*200(mm)
Carton size: 600*320 *240 (mm)
Packaging materials: pearl cotton, carton
Gross weight: 9.5 KG
Net weight: 8.5 KG

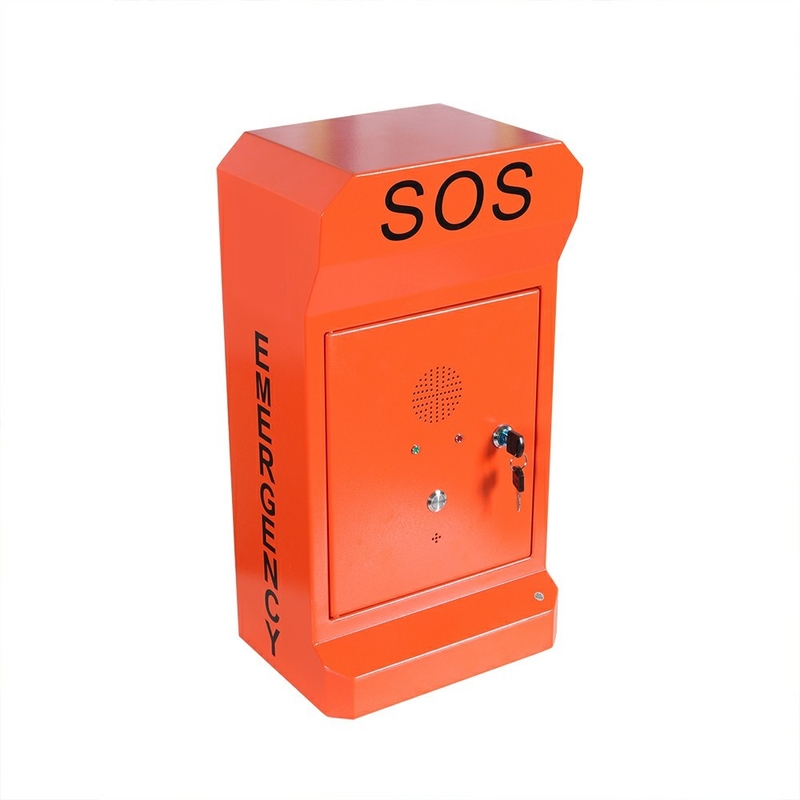

3G / 4G Roadside Hands Free SOS Call Box , Vandal Proof Highway Emergency Phone 1

3G / 4G Roadside Hands Free SOS Call Box , Vandal Proof Highway Emergency Phone 2
