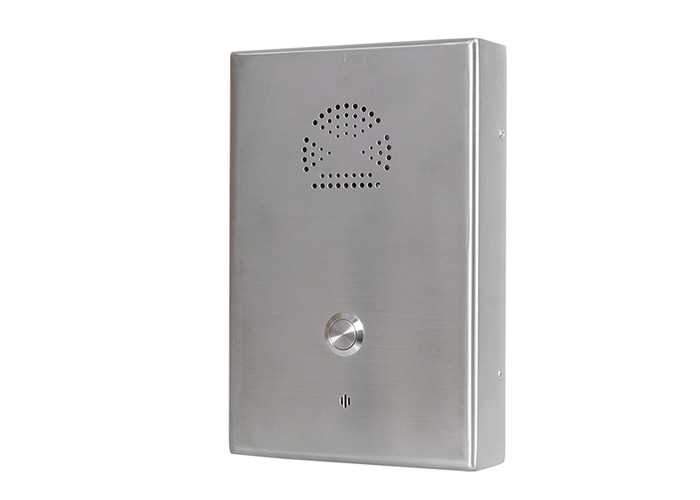

Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR302-SC-OW
Minimum Order Quantity: 1 Piece
Price: US$198~US$300
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Size: 210 *140 *50(mm) Color: Customized
Material: Stainless Steel Function: Communication
Installation: Wall Or Post Mounting Ringer Volume: Shrill Warble Tone 90 DBA @ 1 Metre
Temperature: Operating: -30°C To +65°C Ingress Protection Rating: IP55
Warranty: 2 Years Net Weight: 2 Kg
Gross Weight: 3 Kg Feature1: Waterproof
Feature: Speed Dial Version: Analogue/SIP/GSM/3G
High Light:

outdoor sip phone

,

sip outdoor intercom


Product Description



 Product Description

The Vandal Resist Emergency Telephone is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism. Ideal for schools, streets, public square, court houses, rail platforms, car-parks, police stations, hospitals,outside buildings, gate entry, etc.
Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure 0

 Telephone Versions Analog,SIP,GSM,3G optional
 Operating Temperature -30°C to +65°C
 Storing Temperature -40°C to +75°C
 Ringing Tone 80 dB at 1 meter typical
 M.T.B.F. excess of 50,000 hours using
 Power Supply telephone line or DC or solar powered
 Weather Resistance IP54-IP65
 Casing Material vandal proof steel body









Technical Specification

Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure 1

Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure 2



 SIP Version
 Power Supply PoE or 12V DC
 Power Consumption -Idle:1.5W
-Active:1.8W
 SIP Protocol SIP 2.0 (RFC3261)
 Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
 Communication Type Full duplex
 Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)





 Ambient conditions
 Protection type IP55-IP65 as per EN60529
 Operating temperature -25°C to +70°C
 Storage temperature -25°C to +85°C





 Analogue Version
 Power Supply From the analogue telephone network
 Supply Voltage 24 VDC to 65 VDC
 Supply Current 20 mA DC to 100 mA DC
 Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
 Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.





 3G Version
 Power Supply 12V DC
 Power Consumption -Idle:0.3W
-Active: 1.5W
 Communication Type Full duplex
 Ringer volume 90~95dB(A) at a distance of 1 m
 Program Method Remote programming by SMS
 Frequency A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz









Features





 Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure 3

             ⎋ Standard SIP phone

             ⎋ Robust housing, constructed of stainless steel

             ⎋ Vandal resistant metal button

             ⎋ Hands free operation

             ⎋ On wall mounting, simple installation

             ⎋ Weather proof protection: up to IP55

             ⎋ 4 X Tamper proof screws for mounting









Packing & Delivery

Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure 4



 Unit size 210 *140 *50(mm)
 Carton size 340 *235 *165(mm)
 Packaging materials pearl cotton, carton
 Gross weight 3KG
 Net weight 2KG



















Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure 5





 Port Shenzhen

 Lead Time

 (If you finish the payment today, your order will ship out within the delivery date.)

 Quantity(Pieces) 1 2-500 >500
  Est. Time(days) 2 25 To be negotiated













Our Company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.

 Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure 6

Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure 7



Our Services

Waterproof Dustproof Clean Room Telephone with Stainless Steel Enclosure 8

1. ODM & OEM products or solutions

2. Sample order is greatly welcomed.

3. We will reply your inquiry within 12 hours

4. Update the productive process and show the packing details

5. After delivered the goods, we will track the products for you once every two days, until you get the products.

6. When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.





 FAQ



       Q: Do you have any MOQ limit?
       A: Low MOQ, 1pc is available



       Q: Can I have a sample order ?
       A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



       Q: What about the lead time?
       A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



       Q: What’s the quality standard of your products?

       A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



       Q: Is it OK to print my logo on the products?
       A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



      Q: Can you produce a product in a color of my choosing?

      A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



      Q: Do you provide an installation service?

      A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



      Q: When can I receive your quotation?

      A: Within 12 hours



      Q: How can I pay you?

      A: Many convenient methods for choose: Paypal, T/T, L/C.
