Rugged SIP Telephone for Elevator with Hands-free Emergency VoIP Call Box

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR505-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Stainless Steel Customized: Support
Warranty: 2 Years Weather Protection: IP55-IP65
Handsfree: Yes Vandal Resistant: Yes
Unit Size: 135 *75 *25 (mm) Weight: 0.5 KG
High Light:

outdoor sip phone


sip outdoor intercom

Product Description

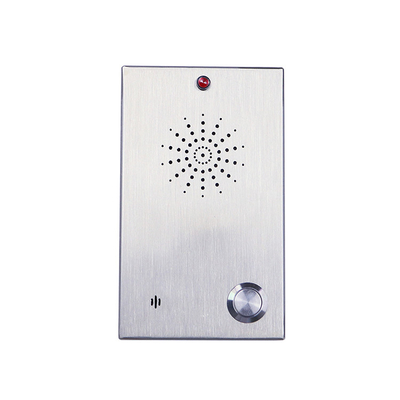

Rugged SIP Telephone for Elevator, Hands free Emergency VoIP Call Box


The Rugged Elevator Call Box is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.




Ideal for schools, streets, public square, court houses, rail platforms, car-parks, police stations, hospitals, outside buildings, gate entry, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.




- Standard VoIP/SIP Phone
- Robust housing, constructed of stainless steel
- Mini size, easy installation
- Vandal resistant metal button

- Hands free operation
- Programmable for speed-dialing (PPT)
- Can set a service number to receive service calls
- Non-volatile memory

- On wall mounting, simple installation
- Weather protection IP54-IP65
- 4 X Tamper proof screws for mounting
- Fast-fit terminal connection


- External Power supply or PoE (SIP phone)

- RJ45 port for SIP phone

- CE, FCC, RoHS, ISO9001 compliant




Voice Features

       - Support 2 lines SIP, SIP 2.0 (RFC3261)

- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

- Echo cancellation: Support G.168 and hand-free can support 96ms

- Supports full duplex.

- SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer

- SIP support 2 servers, user can through each server to calling in and out


Network Features

- WAN/LAN: support Bridge mode

- Support PPPoE for xDSL

- Support VLAN

- Support Stun penetration

       - Support DHCP get IP on WAN port


Ambient conditions
Protection type  IP 55 as per EN60529
Operating temperature  -20°C to +65°C
Storage temperature  -30°C to +75°C



Unit size: 135 *75 *25 (mm)
Carton size: 180*100*50 (mm)
Packaging materials: pearl cotton, carton
Net weight: 0.5 KG
Gross weight: 1 KG

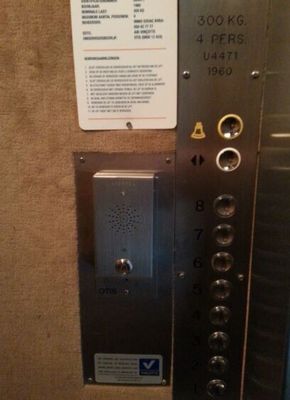

Rugged SIP Telephone for Elevator with Hands-free Emergency VoIP Call Box 0
