Vandal Proof Emergency SOS Telephone 65VDC Marine Emergency Call Intercom

China J&R Technology Limited certification
China J&R Technology Limited certification
I'm Online Chat Now

Vandal Proof Emergency SOS Telephone 65VDC Marine Emergency Call Intercom

Vandal Proof Emergency SOS Telephone 65VDC Marine Emergency Call Intercom
Vandal Proof Emergency SOS Telephone 65VDC Marine Emergency Call Intercom Vandal Proof Emergency SOS Telephone 65VDC Marine Emergency Call Intercom

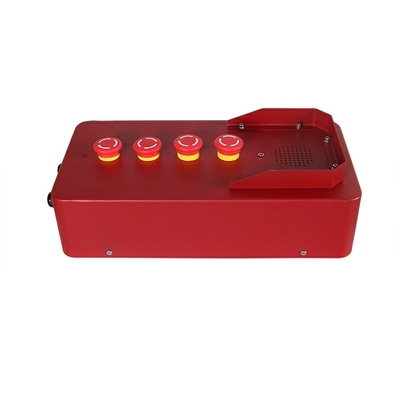

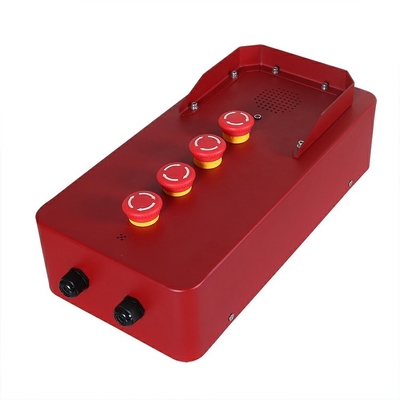

Large Image :  Vandal Proof Emergency SOS Telephone 65VDC Marine Emergency Call Intercom

Product Details:
Place of Origin: Shenzhen, Guangdong, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR316-4B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$349 - US$499
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 3000 sets per month
Detailed Product Description
Material: Cold Rolled Steel Color: Yellow, Orange, Blue Or Customization
Warranty: 2 Years Weather Protection: IP66
Button: 4 Vandal-proof Buttons Version: SIP/VoIP (Analog, GSM/3G/4G Available)
Power Supply: PoE Or DC12V Or Telephone Line Powered Unit Size: 400 *200 *130 (mm)
High Light:

Vandal Proof Emergency SOS Telephone

,

65VDC Emergency SOS Telephone

,

Marine Emergency Call Intercom

Waterproof Emergency SOS Telephone for Marine Emergency Call Intercom Box



The weatherproof call station JR316-4B with four-wire technology is designed for use in harsh environments. The housing is resistant to many chemicals and can be used in a range of temperatures from -40 °C to +70 °C.





Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply 12V DC
Power Consumption - Idle:0.3W
- Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature - 40°C to +70°C
Storage temperature - 40°C to +85°C









Waterproof Emergency SOS Telephone for Marine Emergency Call Intercom Box Features






★ Robust housing, constructed of CRS



★ Comes standard with built-in 25 Watt booster amplifier



★ Four button autodail options with remote programming



★ Simple installation, Available for wall mounting type and pillar mounting type


★ Can be programmed remotely by tone phone or locally via keypad



★ External horn and beacon are optional, loudness of sound can be 110~120 DB (Optional )


★ CE, FCC, RoHS, ISO9001 compliant
