Place of Origin: | Shenzhen, Guangdong, China |
---|---|
Brand Name: | J&R |
Certification: | CE, FCC, RoHS, ISO9001 |
Model Number: | JR313-2B |
Minimum Order Quantity: | 1 set |
Price: | Reconsideration |
Packaging Details: | pearl cotton, carton |
Delivery Time: | 2-5 working days |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 3000 sets per month |
Color: | Red, Yellow Or Customization | Material: | Cold Rolled Steel |
---|---|---|---|
Weather Protection: | IP65 | Button: | Stainless Steel |
Handsfree: | Yes | Vandal Resistant: | Yes |
High Light: | Stainless Steel Sos Handsfree Telephone,Ip65 Sos Handsfree Telephone,SIP DTMF Waterproof Telephone Intercom |

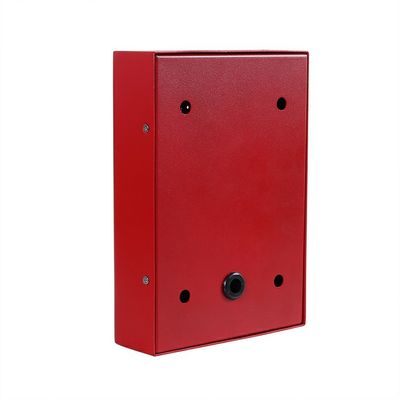

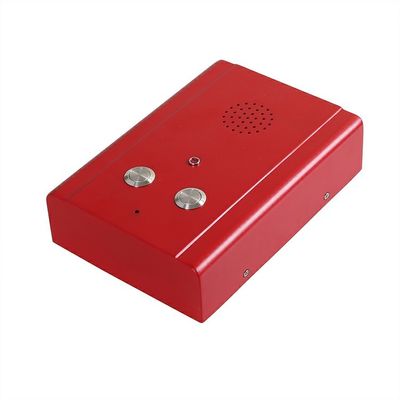

JR313-2B Handsfree Telephone SOS Outdoor Telephone IP65 Emergency Phones
Product Description
The Emergency Telephone are based on a stainless steel panel and provide a clear hands-free, loud-speakingoperation for any public area.
Manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
The Emergency Telephones has been designed to meet the needs of clients who experience loss through vandalism. However, the telephone is extremely simple to install and offers a convenience solution to a range of telephone siting problems.
Ideal for prisons, court houses, rail platforms, car-parks, police stations, outside buildings, gate entry, etc.
Casing Material |
Cold rolled steel body |
Colors |
RED, YELLOW, GREY |
Handset Material |
No handset |
Keypad |
No keypad |
Temperature |
Operating: -30°C to +70°C Storing: -40°C to +75°C |
Weather Resistance |
IP65 |
Ringing Tone |
Shrill warble tone 80 dBA @ 1 metre typical |
Hook switch |
Electronic / magnetic with no visible moving parts |
M.T.B.F. |
Calculated to have an M.T.B.F. in excess of 50,000 hours using |
Weight |
Up to 1 kg depending on option |
Features
JR313-2B handsfree telephone sos outdoor telephone ip65 emergency phones
►Constructed in robust steel, vandal and mark resistant
►Can be used on most PBX system as an extension phone
►Voice-switched (VOX) semi-duplex or full-duplex operation
►Tone dialling (DTMF)
►Speech optimisation in noisy environment
►External power supply or PoE (SIP)
JR313-2B Handsfree Telephone SOS Outdoor Telephone IP65 Emergency Phones
Analogue Version | |
Power Supply | Telephone Line Powered |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
Ringer Volume | 80 dB (A) at 1m distance |
Dialing Method |
DTMF mode in accordance with ITU-T recommendation Q.23. |
Communication Type | Full duplex |
SIP Version | |
Power Supply | PoE or 12V DC |
Power Consumption | Idle: 1.5w -Active: 1.8W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer Volume | 90~95dB (A) at 1m distance |
3G Version | |
Power Supply | 12V DC |
Power Consumption | Idle: 0.3W -Active: 1.5W |
Communication Type | Full deplex |
Ringer Volume | 90~95dB (A) at 1m distance |
Program Method | Remote programming by SMS |
Packing
JR313-2B handsfree telephone sos outdoor telephone ip65 emergency phones
Unit size |
170 *130 *60(mm) |
Carton size |
200 *140 *100( mm ) |
Packaging materials |
pearl cotton, carton |
Net weight |
0.8 KG |
Gross weight |
1 KG |
