Speed Dial SS IP55 Waterproof Telephone Intercom

Speed Dial SS IP55 Waterproof Telephone Intercom
Speed Dial SS IP55 Waterproof Telephone Intercom Speed Dial SS IP55 Waterproof Telephone Intercom Speed Dial SS IP55 Waterproof Telephone Intercom Speed Dial SS IP55 Waterproof Telephone Intercom Speed Dial SS IP55 Waterproof Telephone Intercom Speed Dial SS IP55 Waterproof Telephone Intercom

Large Image :  Speed Dial SS IP55 Waterproof Telephone Intercom

Product Details:
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR302-SC-OW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: US$198~US$300
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detailed Product Description
Size: 210 *140 *50(mm) Color: Customized
Material: Stainless Steel Function: Communication
Installation: Wall Or Post Mounting Ringer Volume: Shrill Warble Tone 90dBA @ 1 Metre
Temperature: Operating: -30°C To +65°C Ingress Protection Rating: IP55
Warranty: 2 Years Net Weight: 2 Kg
Gross Weight: 3 Kg Feature1: Waterproof
Feature: Speed Dial Version: Analogue/SIP/GSM/3G
High Light:

SS IP55 Waterproof Telephone Intercom

,

Speed Dial Waterproof Telephone Intercom

,

90dBA SIP Stainless Steel SIP Call



Product Description

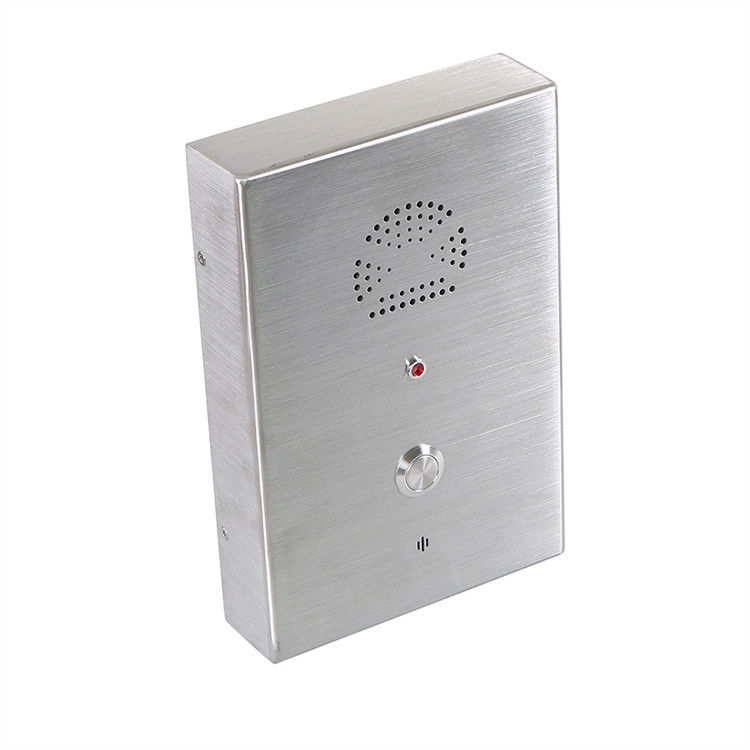

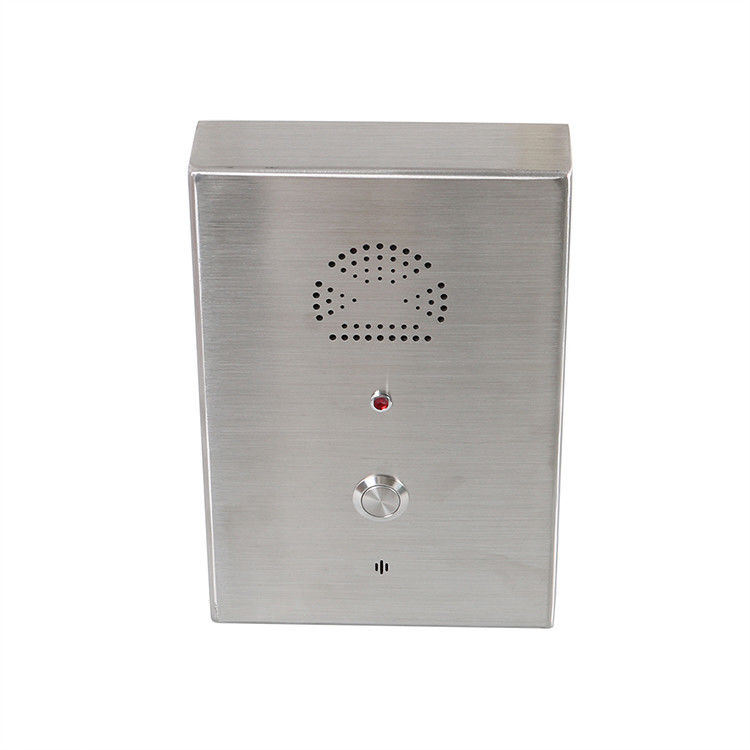

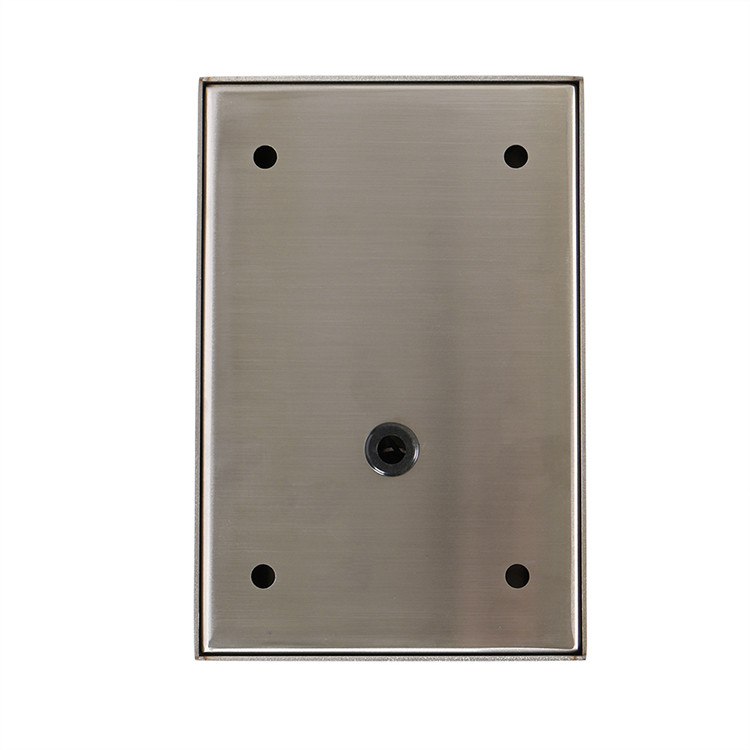

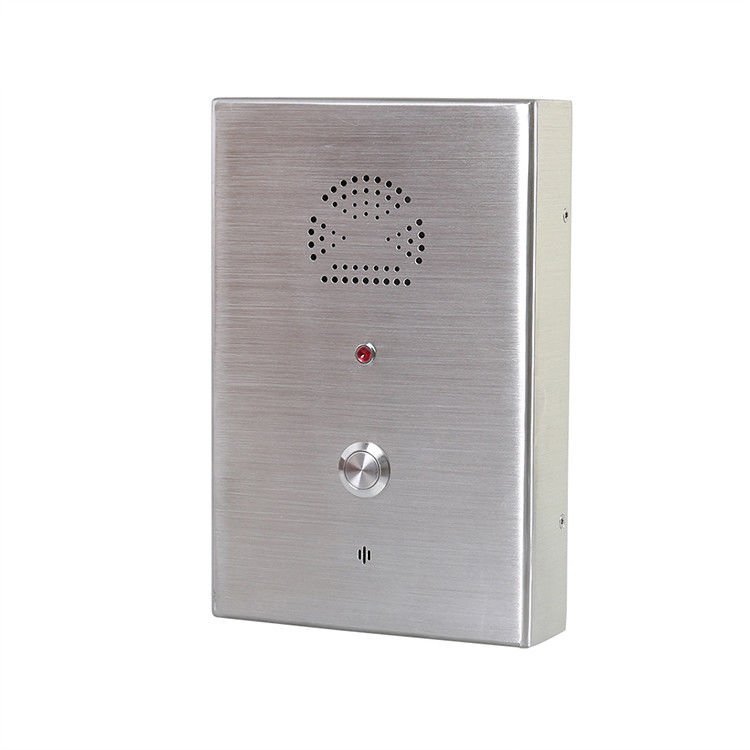

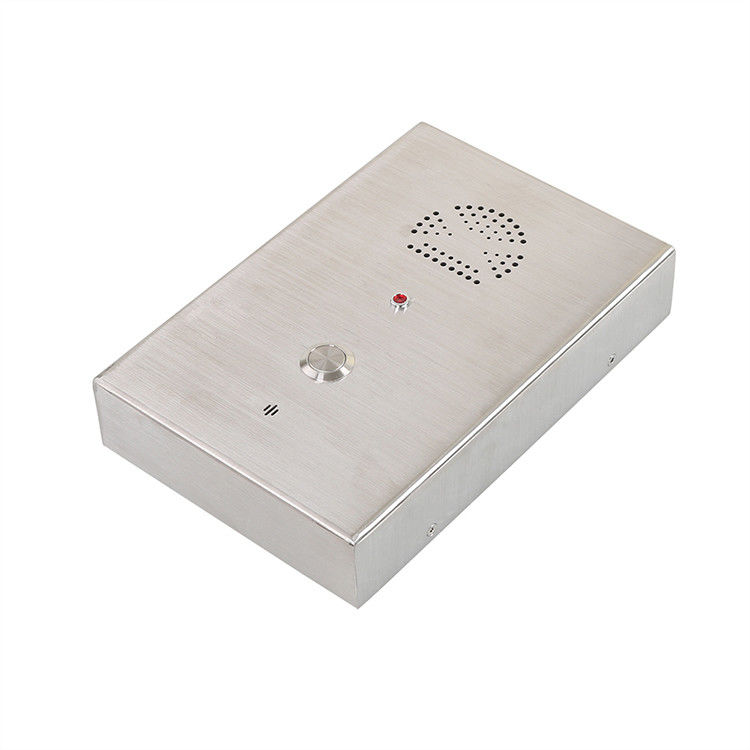

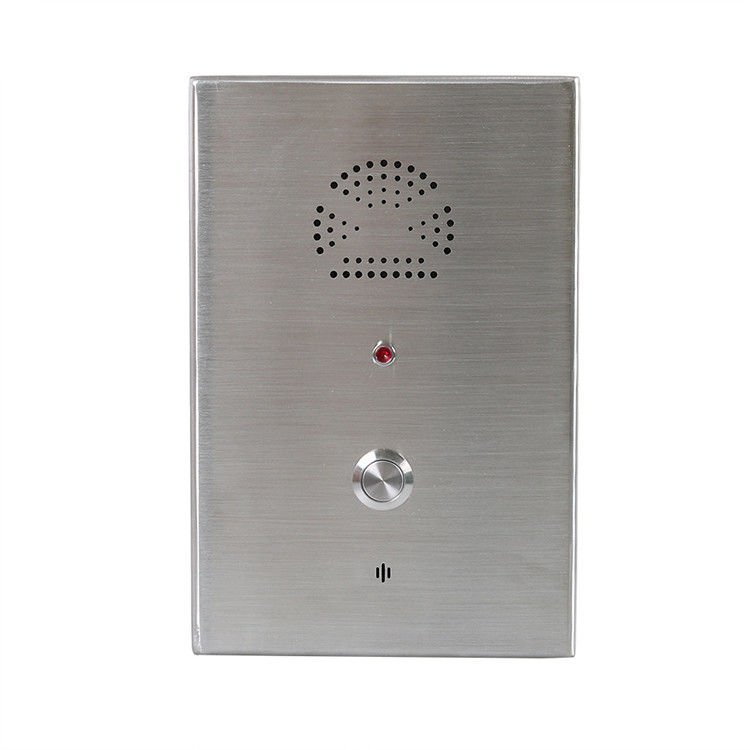

JR302-SC-OW Waterproof Telephone Intercom System

≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖

Waterproof Telephone Intercom System is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism. Ideal for schools, streets, public square, court houses, rail platforms, car-parks, police stations, hospitals,outside buildings, gate entry, etc.
Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.





 Telephone Versions Analog,SIP,GSM,3G optional
 Operating Temperature -30°C to +65°C
 Storing Temperature -40°C to +75°C
 Ringing Tone 80 dB at 1 meter typical
 M.T.B.F. excess of 50,000 hours using
 Power Supply telephone line or DC or solar powered
 Weather Resistance IP54-IP65
 Casing Material vandal proof steel body









Technical Specification

Waterproof Telephone Intercom System

≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖

Speed Dial SS IP55 Waterproof Telephone Intercom 0

Speed Dial SS IP55 Waterproof Telephone Intercom 1



 SIP Version
 Power Supply PoE or 12V DC
 Power Consumption -Idle:1.5W
-Active:1.8W
 SIP Protocol SIP 2.0 (RFC3261)
 Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
 Communication Type Full duplex
 Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)





 Ambient conditions
 Protection type IP55-IP65 as per EN60529
 Operating temperature -25°C to +70°C
 Storage temperature -25°C to +85°C





 Analogue Version
 Power Supply From the analogue telephone network
 Supply Voltage 24 VDC to 65 VDC
 Supply Current 20 mA DC to 100 mA DC
 Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
 Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.





 3G Version
 Power Supply 12V DC
 Power Consumption -Idle:0.3W
-Active: 1.5W
 Communication Type Full duplex
 Ringer volume 90~95dB(A) at a distance of 1 m
 Program Method Remote programming by SMS
 Frequency A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz





Speed Dial SS IP55 Waterproof Telephone Intercom 2









Features

Waterproof Telephone Intercom System

≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖



 Speed Dial SS IP55 Waterproof Telephone Intercom 3

             ⎋ Standard SIP phone

             ⎋ Robust housing, constructed of stainless steel

             ⎋ Vandal resistant metal button

             ⎋ Hands free operation

             ⎋ On wall mounting, simple installation

             ⎋ Weather proof protection: up to IP55

             ⎋ 4 X Tamper proof screws for mounting









Packing & Delivery

Waterproof Telephone Intercom System

≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖

Speed Dial SS IP55 Waterproof Telephone Intercom 4



 Unit size 210 *140 *50(mm)
 Carton size 340 *235 *165(mm)
 Packaging materials pearl cotton, carton
 Gross weight 3KG
 Net weight 2KG

Speed Dial SS IP55 Waterproof Telephone Intercom 5

 Port Shenzhen

 Lead Time

 (If you finish the payment today, your order will ship out within the delivery date.)

 Quantity(Pieces) 1 2-500 >500
  Est. Time(days) 2 25 To be negotiated









Our Company

Waterproof Telephone Intercom System

≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.


Speed Dial SS IP55 Waterproof Telephone Intercom 6






Applications

Waterproof Telephone Intercom System

≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖≖

Speed Dial SS IP55 Waterproof Telephone Intercom 7

Waterproof Telephone Intercom System is ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
