Place of Origin: | Shenzhen, Guangdong, China |
---|---|
Brand Name: | J&R |
Certification: | CE, FCC, RoHS, ISO9001 |
Model Number: | JR316-4B |
Minimum Order Quantity: | 1 set |
Price: | US$349 - US$499 |
Packaging Details: | pearl cotton, carton |
Delivery Time: | 2-5 working days |
Payment Terms: | L/C, T/T, Western Union,paypal |
Supply Ability: | 3000 sets per month |
Material: | Cold Rolled Steel | Color: | Yellow, Orange, Blue Or Customization |
---|---|---|---|
Warranty: | 2 Years | Weather Protection: | IP66 |
Button: | 4 Vandal-proof Buttons | Version: | SIP/VoIP (Analog, GSM/3G/4G Available) |
Power Supply: | PoE Or DC12V Or Telephone Line Powered | Unit Size: | 400 *200 *130 (mm) |
Highlight: | outdoor sip phone,sip outdoor intercom |

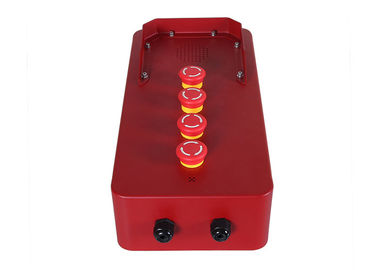

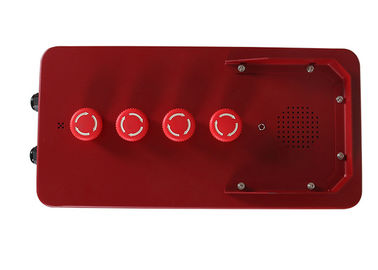

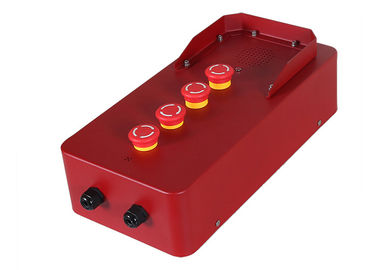

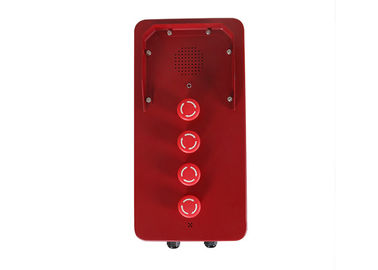

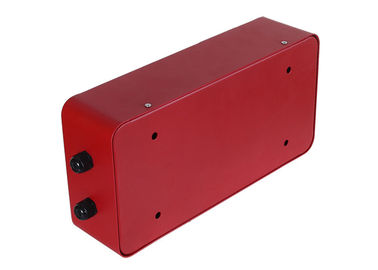

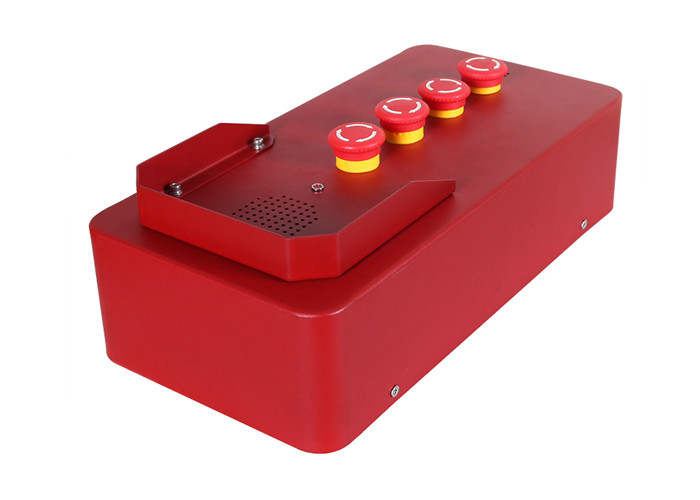

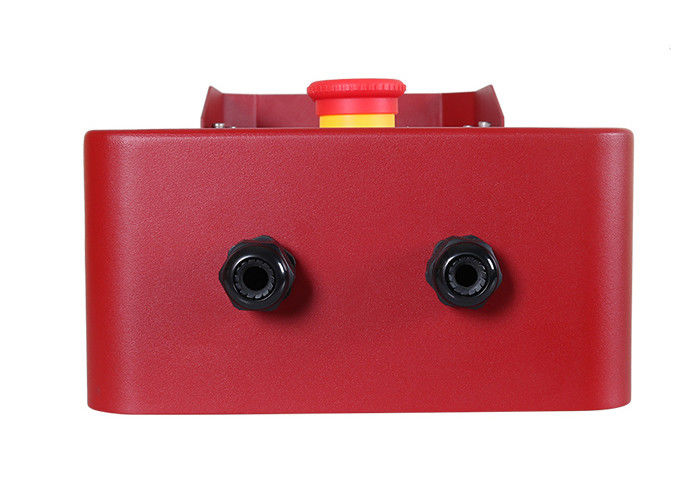

EMS Emergency Telephones For Marine / Metro / Highway
JR315-4B is designed for all types of vessels and rigs (cruise ships, workboats, military, oil rigs, transport vessels, etc.). As a standard VoIP phone, it also integrate completely with any standard SIP protocol to create the easiest way to communicate on board via press the buttons.
¶ Product Detials
JR316-4B.pdf EMS Emergency Telephones For Marine / Metro / Highway
This weatherproof shipboard emergency telephone can equiped with horn and beacon, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. horn works after 1-9 rings, shut when handset lifted or call finished. The LED Red beacon begins to flash when ringing or in use, attracting attention to the phone when call comes, it could be very useful in the noisy environments.
Casing Material |
Cold rolled steel body |
Handset Material |
Handsfree Operation,No handset |
Keypad |
With built-in mini keypad for programing |
Hook switch |
No hook switch |
Push button |

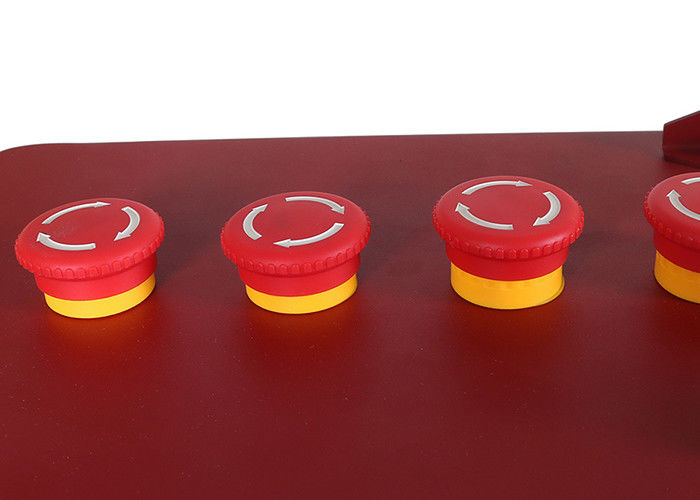

Big mushroom switch button |
Color |
Orange as standard,optional for blue,yellow,gray |
Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
Weather Resistance |
IP66 |
Ringing Tone |
Shrill warble tone 90 dBA @ 1 metre typical |
M.T.B.F. |
Calculated to have an M.T.B.F. in excess of 50,000 hours using |
Weight |
Up to 10kgs depending on option |
¶ Technical Specification
EMS Emergency Telephones For Marine / Metro / Highway
Analogue Version | |
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
Ringer Volume | - 80dB(A) at a distance of 1 m |
- 110dB(A) at a distance of 1 m (for external horn speaker) | |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version | |
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W -Active:1.8W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
3G Version | |
Power Supply | 12V DC |
Power Consumption |
-Idle:0.3W -Active: 1.5W
|
Communication Type | Full duplex |
Ringer volume | 90~95dB(A) at a distance of 1 m |
Program Method | Remote programming by SMS |
Frequency | A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
Ambient conditions | |
Protection type | IP 66 as per EN60529 |
Operating temperature | -25°C to +70°C |
Storage temperature | -25°C to +85°C |
¶ Features
EMS Emergency Telephones For Marine / Metro / Highway
★ Robust construction, Vandal resistant
★ Handsfree Operation, with 4 big mushroom call buttons
★ Comes standard with built-in 25 Watt booster amplifier
★ Weatherproof design (protection rating IP65)
★ Large temperature range (-30 °C to +70 °C)
★ Resistant to many chemicals, Flame resistant
★ Simple installation
★ Available for wall mounting type and pillar mounting type
★ Fast-fit terminal connection
★ Can be programmed remotely by tone phone or locally via keypad
¶ Packing & Delivery
EMS Emergency Telephones For Marine / Metro / Highway
Unit size |
400 *200 *130(mm) |
Carton size |
420 *220 *150(mm) |
Packaging materials |
Pearl cotton, Carton |
Gross weight |
15 KG |
Net weight |
12 KG |
Port | Shenzhen | ||||
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Units) | 1-50 | 51-100 | 101-200 | >200 |
Est. Time(days) | 5 | 8 | 15 | To be negotiated |
¶ Our Services
EMS Emergency Telephones For Marine / Metro / Highway
♦ ODM & OEM products or solutions
♦ Sample order is greatly welcomed.
♦ We will reply your inquiry within 12 hours
♦ Update the productive process and show the packing details
♦ After delivered the goods, we will track the products for you once every two days, until you get the products.
♦ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
¶ Our Company
EMS Emergency Telephones For Marine / Metro / Highway
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G/4G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
¶ Certification
EMS Emergency Telephones For Marine / Metro / Highway
¶ Cooperation Partner
EMS Emergency Telephones For Marine / Metro / Highway
¶ FAQ
EMS Emergency Telephones For Marine / Metro / Highway
Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available
Q: Can I Have A Sample Order?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Once learn your detail requirements.
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days
2.Send by Air: Arrive at destination Airport fast then pick it up by yourself
3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
