Emergency Intercom SIP Call Box Telephone Cold Rolled Steel Material For Highway

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR316-4B
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 3000 sets per month
Detail Information
Material: Cold Rolled Steel Color: Yellow, Orange, Blue
Warranty: 2 Years Weather Protection: IP66
Button: 4 Vandal-proof Buttons Version: SIP/VoIP (Analog, GSM/3G Available)
Power Supply: PoE Or DC12V Or Telephone Line Powered Unit Size: 400 *200 *130 (mm)
Weight: 7 KG Product Name: SIP Emergency Intercom Weatherproof Call Box Telephone For Highway
High Light:

outdoor sip phone

,

sip outdoor intercom


Product Description



Product Description

SIP Emergency Intercom Weatherproof Flameproof Corrosion Resistant Telephone for Highway

This weatherproof shipboard emergency telephone is designed for all types of vessels and rigs (cruise ships, workboats, military, oil rigs, transport vessels, etc.). As a standard VoIP phone, it also integrate completely with any standard SIP protocol to create the easiest way to communicate on board via press the buttons.
This weatherproof shipboard telephone is available in a ruggedized configuration for vessels that need communications in especially rough seas.
Can Equiped with horn and beacon, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. horn works after 1-9 rings, shut when handset lifted or call finished. The LED Red beacon begins to flash when ringing or in use, attracting attention to the phone when call comes, it could be very useful in the noisy environments.

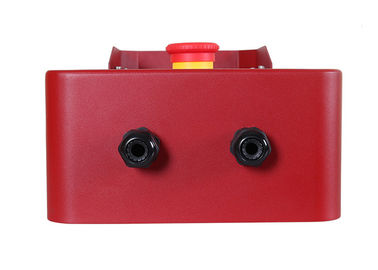

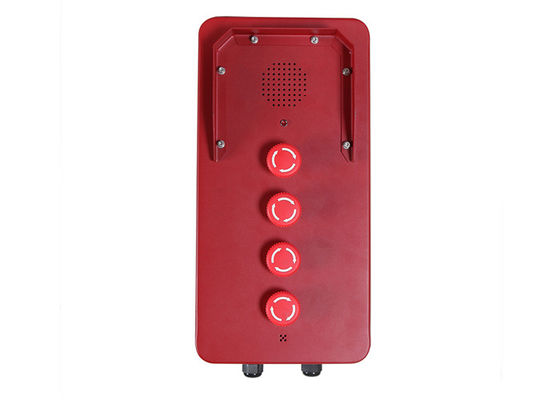

Emergency Intercom SIP Call Box Telephone Cold Rolled Steel Material For Highway 0

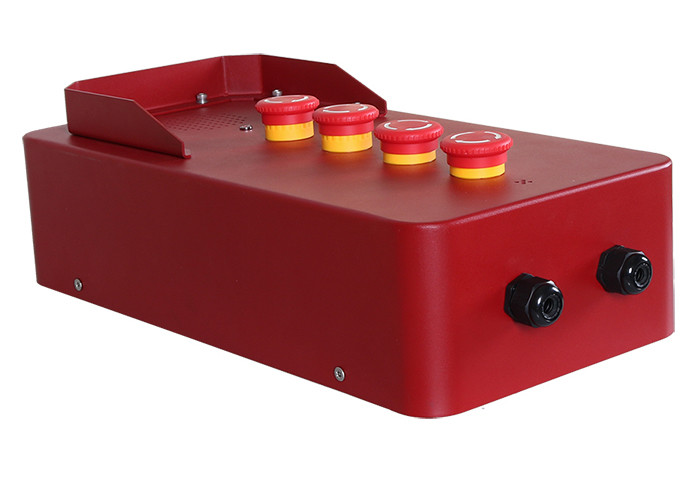

Emergency Intercom SIP Call Box Telephone Cold Rolled Steel Material For Highway 1

Main Features

SIP Emergency Intercom Weatherproof Flameproof Corrosion Resistant Telephone for Highway

- Standard IP version telephone
- Power supply: Power over Ethernet (PoE), or 12V DC for IP version

- Compatible with standard SIP protocol, independently accessible to VOIP phone system
(Asterisk, Elastix, Grandstream, Cisco, Yeastar etc. mainstream IP-PBX)
- Robust construction, Vandal resistant
- Handsfree Operation, with 4 big mushroom call buttons
- Comes standard with built-in 25 Watt booster amplifier
- Weatherproof design (protection rating IP65)
- Large temperature range (-30 °C to +70 °C)
- Resistant to many chemicals, Flame resistant
- Simple installation
- Available for wall mounting type and pillar mounting type
- Fast-fit terminal connection
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory

- Tamper resistant fixings
- External horn and beacon are optional, loudness of sound can be 110~120 DB (Optional )
- CE, FCC, RoHS, ISO9001 compliant





Specification

SIP Emergency Intercom Weatherproof Flameproof Corrosion Resistant Telephone for Highway

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.



Analogue Version
Power Supply
From the analogue telephone network
Supply Voltage
24 VDC to 65 VDC
Supply Current
20 mA DC to 100 mA DC
Ringer Volume
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method
DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply
PoE or 12V DC
Power Consumption
-Idle:1.5W
-Active:1.8W
SIP Protocol
SIP 2.0 (RFC3261)
Support Codec
G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type
Full duplex
Ringer volume
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply
12V DC
Power Consumption
-Idle:0.3W
-Active: 1.5W
Communication Type
Full duplex
Ringer volume
90~95dB(A) at a distance of 1 m
Program Method
Remote programming by SMS
Frequency
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type
IP 66 as per EN60529
Operating temperature
-25°C to +70°C
Storage temperature
-25°C to +85°C


Application

SIP Emergency Intercom Weatherproof Flameproof Corrosion Resistant Telephone for Highway

This weatherproof shipboard telephone is very popular for Cruise ships, Workboats, Military, Oil rigs, Transport vessels, Tunnels, Mining, Underground, Metro stations, Railway platform, Factory, Power station, Chemical plants, Construction sites, Steel Plants, and related heavy duty industrial application, etc.
