Broadcast Public Address Weatherproof Emergency Telephone With Loudspeaker

China Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker supplier
Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker supplier Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker supplier Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker supplier Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker supplier Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker supplier Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker supplier

Large Image :  Broadcast Public Address Weatherproof Emergency Telephone With Loudspeaker

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-FK-H

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Product Name: Broadcast Telephone Public Adress Weatherproof Emergency Telephone With Loudspeaker Material: Die-casting Aluminum Alloy
Version: Analogue, SIP/VoIP, GSM/3G Installation: Wall Mounting Or Pillar Mounting
Powered: Telephone Line Powered Or DC12V/POE Powered Warranty: 2years
Ringing Volume: 95-120db Protection Type: IP65-IP67
SIP Protocol: SIP2.0 Application: Metro, Railway, Highway Side,Tunnel,Roadside Etc

Product Description

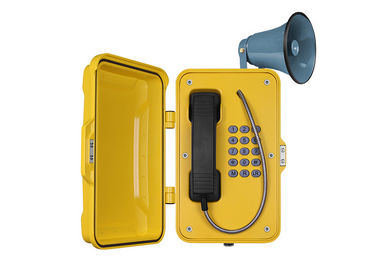

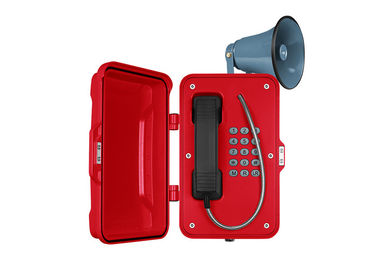

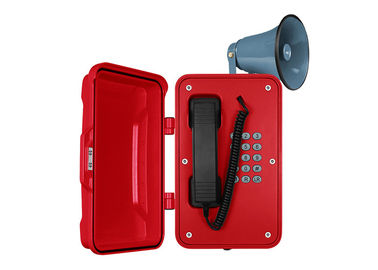

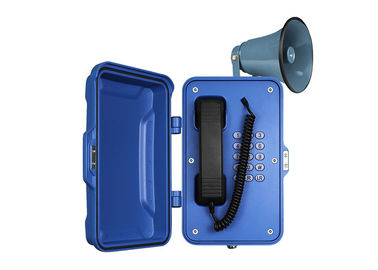

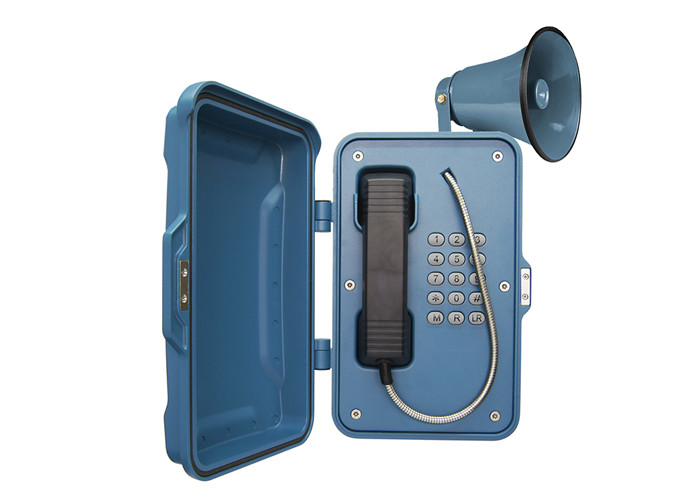

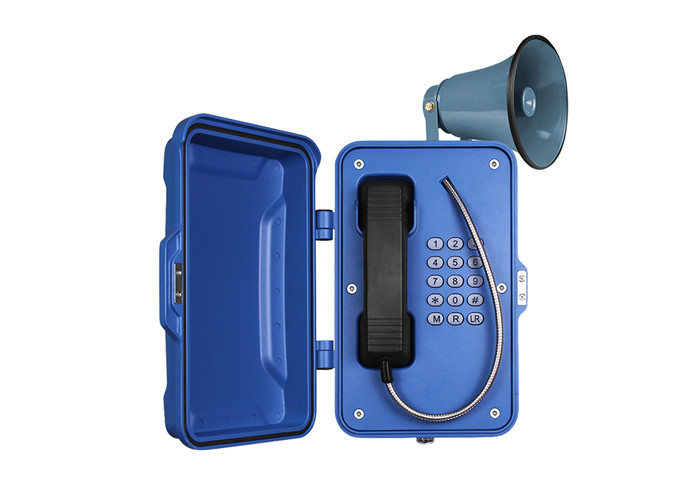

Broadcast  Public Address Weatherproof Emergency Telephone with Loudspeaker

As a weatherproof industrial telephone with flashing lamp & horn, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Equiped with horn and beacon, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished. The LED Red beacon begins to flash when ringing or in use, attracting attention to the phone when call comes, it could be very useful in the noisy environments.



Main Features

Broadcast Public Address Weatherproof Emergency Telephone with Loudspeaker

Standard Analogue phone,or SIP phone,or GSM/3G phone
Vandal resistant handset and armored cord
Weather proof protection to IP67
Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
"LR" button for last number redial
"R" for flash recall
"M" for muting
Wall mounting, simple installation
Built-in amplifier, with external ringer :15W (30W optional), for broadcasting feature
Phone line powered for Analog
External power supply or PoE (SIP)
RJ45 port for SIP phone
CE, FCC, RoHS, ISO9001 compliant




Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker


Specification

Broadcast Public Address Weatherproof Emergency Telephone with Loudspeaker

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.

Analogue Version
Power Supply
From the analogue telephone network
Supply Voltage
24 VDC to 65 VDC
Supply Current
20 mA DC to 100 mA DC
Ringer Volume
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method
DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply
PoE or 12V DC
Power Consumption
-Idle:1.5W
-Active:1.8W
SIP Protocol
SIP 2.0 (RFC3261)
Support Codec
G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type
Full duplex
Ringer volume
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply
12V DC
Power Consumption
-Idle:0.3W
-Active: 1.5W
Communication Type
Full duplex
Ringer volume
90~95dB(A) at a distance of 1 m
Program Method
Remote programming by SMS
Frequency
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type
IP 66 as per EN60529
Operating temperature
-25°C to +70°C
Storage temperature
-25°C to +85°C


Application

Broadcast Public Address Weatherproof Emergency Telephone with Loudspeaker

This weatherproof industrial telephone with flashing lamp & horn is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.



Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker

Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker

Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker
Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker





Certifications

Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker
Broadcast  Public Address Weatherproof Emergency Telephone With Loudspeaker


FAQ

Broadcast Public Address Weatherproof Emergency Telephone with Loudspeaker

Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available

Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.

Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.

Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.

Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.

Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.

Q: When can I receive your quotation?
A: Once learn your detail requirements.

Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
