| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR102-2B-HB |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Weather Resistant: | IP67 |
|---|---|---|---|
| Power Supply: | PoE, Or External Power Supply | Size: | 246 *339 *126 (mm) |
| Color: | Yellow, Blue, Orange (or Optional) | Installation: | Wall/ Pillar Mounting |
| Net Weight: | 12 KG (with Lamp&horn) | Anti-vandal: | Yes |
| Warranty: | 2 Years | ||
| High Light: | sos telephone,tunnel telephone,Yellow Broadcast Telephone |
||

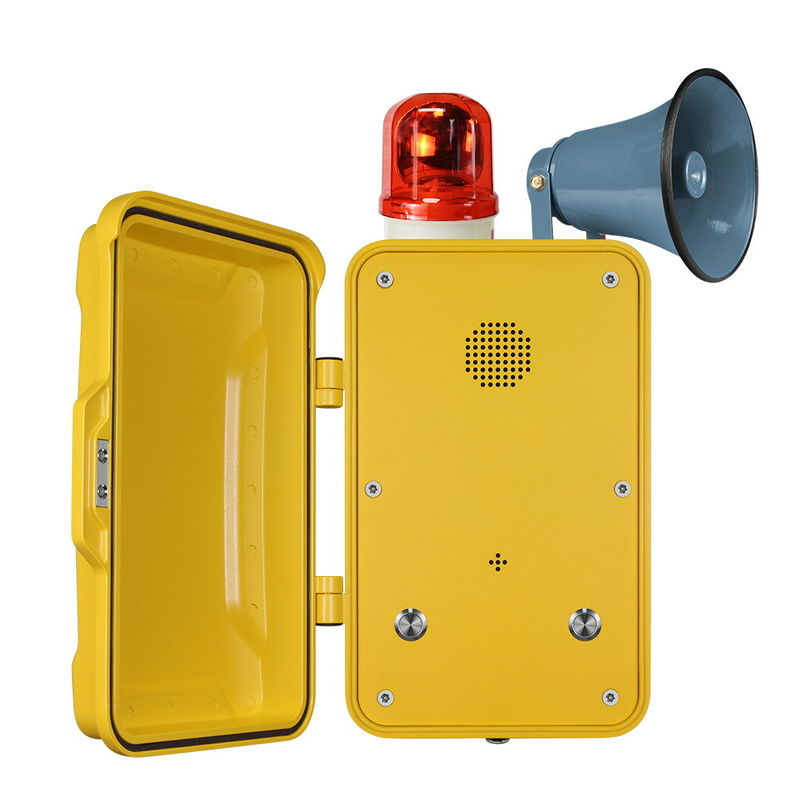

Impact Resistant Hands-free Tunnel Telephone with Flashing Lamp& Horn
This Moisture Resistant industrial telephone with flashing lamp& horn is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Applications
This weatherproof industrial telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Main Features:
- Standard SIP/VoIP phone
- Aluminum alloy die-casting body
- Weather proof protection to IP67
- Vandal resistant metal button
- Hands free operation
- Two buttons for emergency call
- Wall/ Pillar mounting, simple installation
- The phone will ringing loudly and lamp will flashing when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Technical Parameters
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 11 KG
Gross weight: 12 KG
