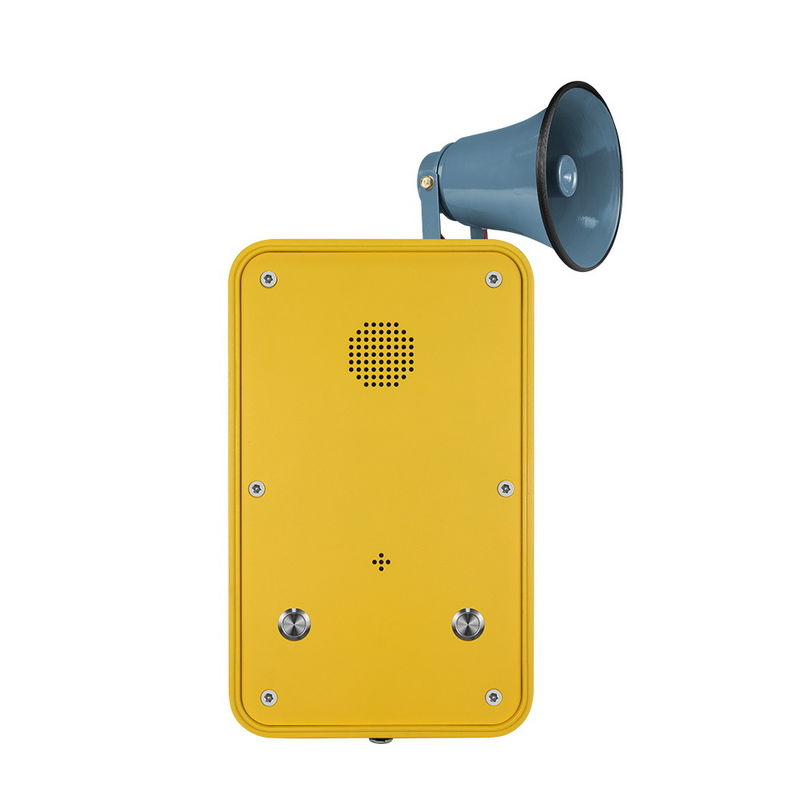

Weatherproof Broadcast Telephone Industrial Hands free Call Box for Emergency

Brand Name:	J&R
Model Number:	JR104-2B-H
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, IP67, ISO9001:2015

Material:

Aluminum Alloy

Weather Resistant:

IP66

Version:

Analog, SIP/VoIP

Size:

204 *334 *74 (mm)

Color:

Yellow, Blue, Orange (or Optional)

Installation:

Wall/ Pillar Mounting

Net Weight:

8 KG (with Horn)

Anti-vandal:

Yes

Warranty:

2 Years

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

heavy duty telephone

sos telephone

Weatherproof Broadcast Telephone

Product Description

Weatherproof Broadcasting Industrial Hands free Call Box for Emergency

Applications
This weatherproof industrial telephone is ideal for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.

Main Features:

- Standard Analog phone, or SIP/VoIP phone
- Vandal resistant handset with armored cord
- Weather proof protection to IP66

- Hands free operation

- Single or Dual button auto dial options with remote programming
- The phone will ringing loudly when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.

- Built-in amplifier, with external ringer and lamp:15W (30W optional), broadcasting feature
- Wall / Pillar mounting, simple installation

- CE, FCC, RoHS, ISO9001 compliant

- Phone line powered ( Analogue)
- External power supply or PoE (SIP)

- RJ45 port connector for SIP phone

Technical Parameters

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle: 1.5W -Active: 1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Package
Unit Size: 204 *334 *74 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
