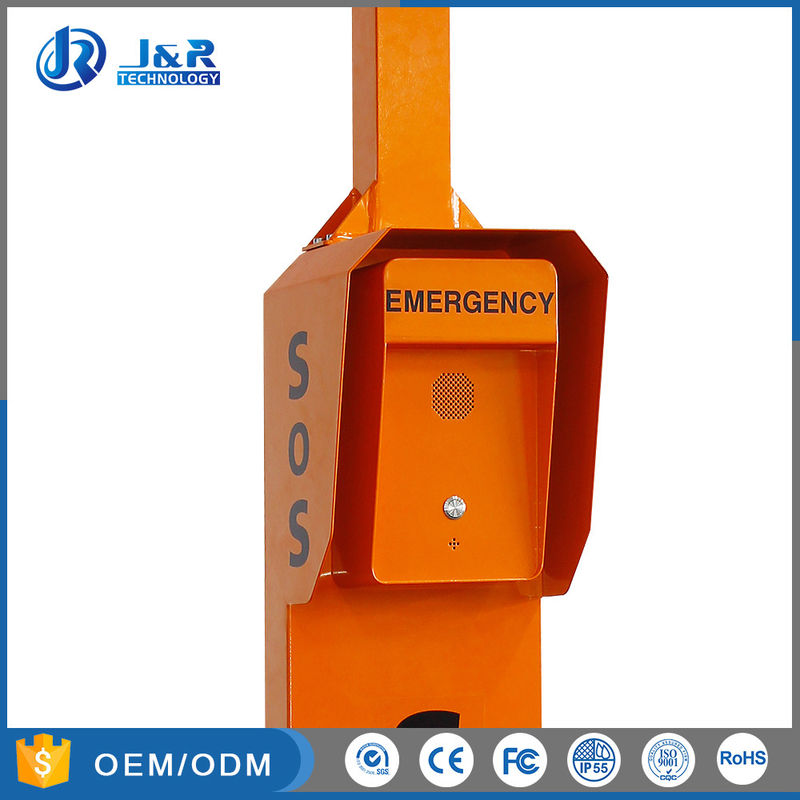

GSM / 3G Wireless Weatherproof SOS Call Box IP66 Roadside Emergency Help Phone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR306-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Cold Rolled Steel Color: Yellow (others Optional)
Warranty: 2 Years Weather Protection: IP65
Button: Stainless Steel Handsfree: Yes
Vandal Resistant: Yes LED Indicator: YES
Weight: 6 KG Option Accessories: Solar Panel,Battery,Pillar
High Light:

outdoor sip phone


sip outdoor intercom

Product Description

GSM/3G Wireless Weatherproof SOS call box,IP66 Roadside Emergency Help Phone


Housed in cold rolled steel box and manufactured to a high standard, this SOS call box offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.




- Emergency Handsfree  telephone

- Telephone can option for Analog,SIP,GSM or 3G version

- Robust housing, constructed of cold rolled steel

- Vandal resistant metal button

- Hands free operation


- Wall/ Pillar mounting, simple installation

- Weather proof protection: up to IP65-IP66

- Single or Dual button auto-dial options with remote programming

- More accessories: Solar Panel,Stand Pillar,Battery


- Phone line powered (Analogue)

- External power supply or PoE (SIP)

- DC 24V powered (GSM/3G)

- RJ45 Port for SIP connection

- Compatible with standard SIP protocol, independently accessible to VOIP phone system.

  (Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX);

- CE, FCC, RoHS, ISO9001 compliant




Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.




Voice Features

       - Support 2 lines SIP, SIP 2.0 (RFC3261)

- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

- Echo cancellation: Support G.168 and hand-free can support 96ms

- Supports full duplex.

- SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer

- SIP support 2 servers, user can through each server to calling in and out


Network Features

- WAN/LAN: support Bridge mode

- Support PPPoE for xDSL

- Support VLAN

- Support Stun penetration

       - Support DHCP get IP on WAN port


Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Unit size: 301 *180 *120 (mm)

Carton size: 200*300*440 (mm)

Packaging materials: pearl cotton, carton

Gross weight: 6 KG

Net weight: 5 KG
