Weatherproof Hands Free Telephone with Flashing Beacon and Metal Loudspeaker

Weatherproof Hands Free Telephone with Flashing Beacon and Metal Loudspeaker

Brand Name: J&R
Model Number: JR104-SC
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001:2015
Material:
Aluminum Alloy
Weather Resistant:
IP66
Version:
Analog, SIP, GSM
Size:
246 *339 *109 (mm)
Color:
Orange, Yellow, Blue, (or Optional)
Installation:
Wall/ Pillar Mounting
Net Weight:
9 KG (with Lamp&horn)
Anti-vandal:
Yes
Warranty:
2 Years
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

heavy duty telephone

,

sos telephone

Product Description

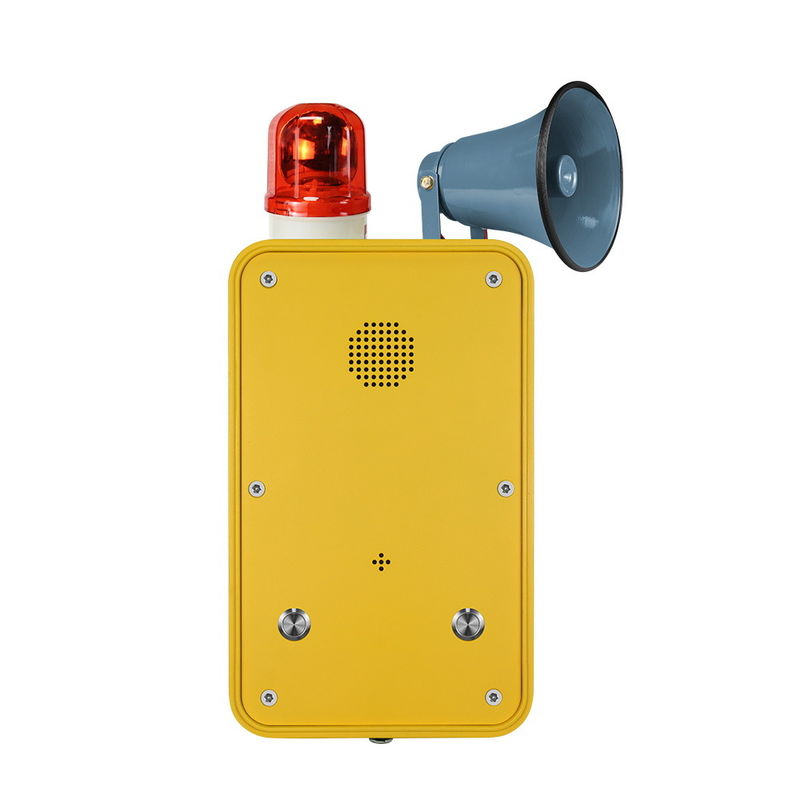

Weatherproof Hands Free Telephone with Flashing Beacon and Metal Loudspeaker



Equipped with horn and beacon, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished. The LED Red beacon begins to flash when ringing or in use, attracting attention to the phone when call comes, it could be very useful in the noisy environments.



Main Features of the Weatherproof Hands Free Telephone with Flashing Beacon and Metal Loudspeaker

- Standard Analog phone

- Available in SIP/VoIP phone and GSM/3G phone
- Aluminum alloy die-casting body
- Weather proof protection to IP66



- Hands free operation
- Programmable for auto-dial
- The phone will ringing loudly and lamp will flashing when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.


- Built-in amplifier, with external ringer and lamp:15W (30W optional), broadcasting feature
- Wall / Pillar mounting, simple installation

- CE, FCC, RoHS, ISO9001 compliant


- Phone line powered ( Analogue)
- External power supply or PoE (SIP)

- RJ45 port connector for SIP phone





Applications of the Weatherproof Hands Free Telephone with Flashing Beacon and Metal Loudspeaker
This weatherproof industrial telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.




Technical Parameters of the Weatherproof Hands Free Telephone with Flashing Beacon and Metal Loudspeaker

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C




Package of the Weatherproof Hands Free Telephone with Flashing Beacon and Metal Loudspeaker
Unit Size: 339*246*109 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 9 KG
Gross weight: 10 KG
