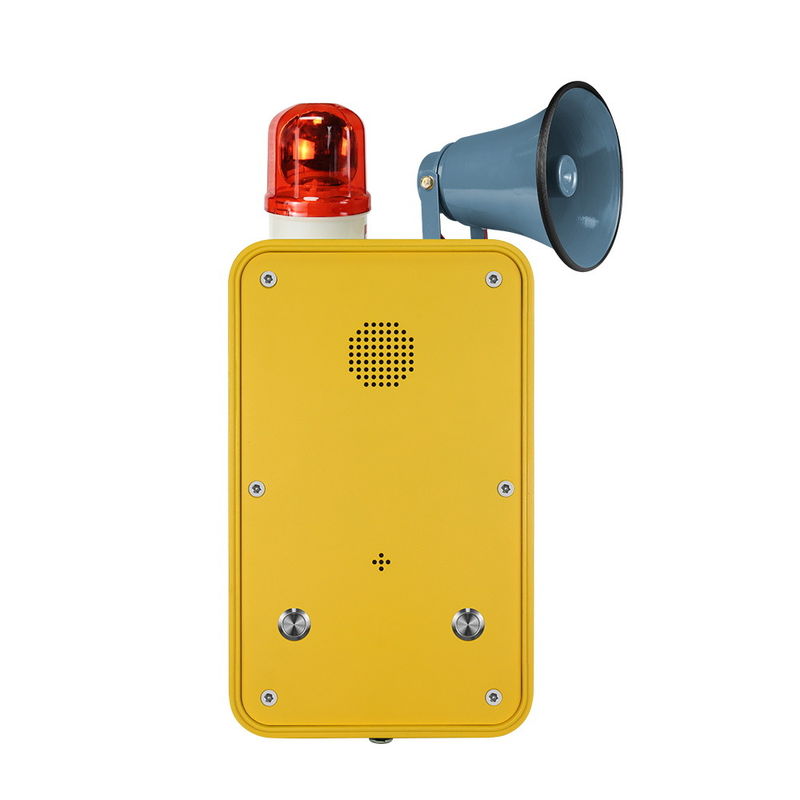

Anti Vandal Broadcast Telephone Simple Installation For Chemical Plants / Power Plants

Brand Name:	J&R
Model Number:	JR104-2B-HB
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, IP67, ISO9001:2015

Material:

Aluminum Alloy

Weather Resistant:

IP67

Version:

Analog, SIP/VoIP

Size:

204 *334 *74 (mm)

Color:

Yellow, Blue, Orange (or Optional)

Installation:

Wall/ Pillar Mounting

Net Weight:

9 KG (with Lamp&horn)

Anti-vandal:

Yes

Warranty:

2 Years

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

sos telephone

tunnel telephone

Anti Vandal Broadcast Telephone

Product Description

Anti-vandal Hands-free Intercom with Broadcasting for Industry Areas

Main Features:
- Standard Analog phone, or SIP/VoIP phone
- Aluminum alloy die-casting body
- Weather proof protection to IP67

- Vandal resistant metal button for Emergency

- Hands free operation
- Wall/ Pillar mounting, simple installation

- The phone will ringing loudly and lamp will flashing when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.

- Inductive coupler fitted as standard for hard of hearing

- Phone line power (Analog)
- External power supply or PoE (SIP-VoIP)

- RJ45 port for SIP phone

- CE, FCC, ISO9001, RoHS compliant

Applications
This weatherproof industrial telephone is ideal for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.

Technical Parameters

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle: 1.5W -Active: 1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

Package
Unit Size: 204 *334 *74 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 9 KG
Gross weight: 10 KG
