Loud Speaker Dust Proof Watertight Telephone With Warning Lamp For Noisy Industry

Loud Speaker Dust Proof Watertight Telephone With Warning Lamp For Noisy Industry

Brand Name: J&R
Model Number: JR101-FK-HB
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, IP67, ISO9001:2015
Material:
Aluminum Alloy
Weather Resistant:
IP67
Version:
Analogue, SIP/VoIP, GSM/3G
Warranty:
2 Years
Color:
Yellow, Blue, Red, Orange (or Optional)
Size:
246 *339 *126 (mm)
Net Weight:
12 KG (with Lamp&horn)
Vandal Resistant:
Yes
Installation:
Wall/ Pillar Mounting
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

heavy duty telephone

,

sos telephone

Product Description

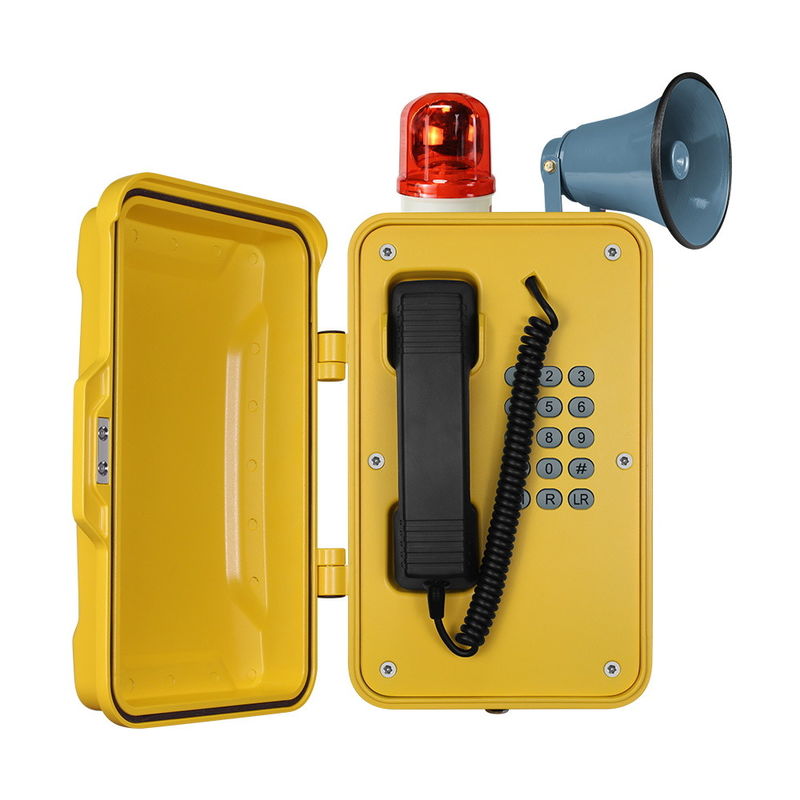

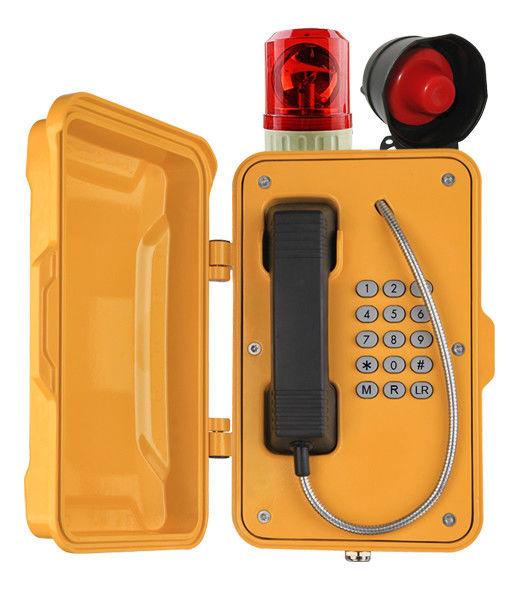

Loud Speaker Dust-proof Watertight Telephone with Warning Lamp for Noisy Industry


This Moisture Resistant industrial telephone JR101-FK-HB is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


Equipped with horn and beacon, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished. The LED Red beacon begins to flash when ringing or in use, attracting attention to the phone when call comes, it could be very useful in the noisy environments.



Main Features:
- Standard Analogue phone, or SIP phone, or GSM/3G phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67



- Full keypad with memory
- Wall/ Pillar mounting, simple installation

- CE, FCC, ISO9001, RoHS compliant


The phone will ringing loudly and lamp will flashing when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.

- Inductive coupler fitted as standard for hard of hearing



 Applications
This weatherproof industrial telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.



Technical Parameters

Analogue Version
Power Supply  From the analogue telephone network
Supply Voltage  24 VDC to 65 VDC
Supply Current  20 mA DC to 100 mA DC
Ringer Volume  - 80dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method  DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 11 KG
Gross weight: 12 KG
