SOS Hands Free Emergency VoIP phone Pillar Mounting For Tunnels / Parking Lots

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR330-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Cold Rolled Steel Power Supply: PoE
Weather Protection: IP65 Button: 1 Button
Color: Yellow , Red Installation: Pillar Mounting
Warranty: 2 Years Unit Size: 530 *280*200 (mm)
Weight: 10 KG
High Light:

outdoor sip phone


sip outdoor intercom

Product Description

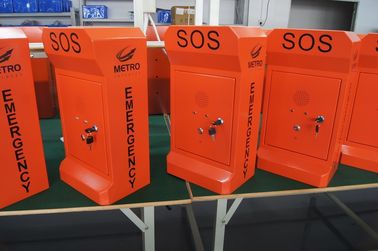

Rugged VoIP SOS Hands-free Call Box for Tunnels, Parking lots


This Emergency VoIP telephone is designed for outdoor use, based on a cold rolled steel with powder coated body, and stainless faceplate, offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.


VoIP connection offers wireless communications to provide a completely standalone telephone installation.




- Standard SIP/VoIP phone

- Robust Cold rolled steel body

- Weather resistant: IP65


- Vandal resistant metal button

- One button programmable for speed dial

- Two indicators: one for power supply; one for phone state

- Support message function for low battery, door opening & low signal strength


- Wall mounting or pole mounting, simple installation

- Standard or Customized units

- External power supply or PoE (SIP-VoIP)

- RJ45 port for SIP phone

- CE, FCC, RoHS, ISO9001 compliant




It is ideal for Highway side use, other than that, it is often used at university and college campuses, streets, public square, car-parks, police stations, outside buildings, shopping malls, industrial areas and remote areas.




SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)


Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C




Package Information

unit size: 530 *280*200 (mm)
Carton size: 600*320 *240 ( mm )
Packaging materials: pearl cotton, Carton
Gross weight: 15 KG
Net weight: 10 KG
