SIP Call Box
Created with Pixso.

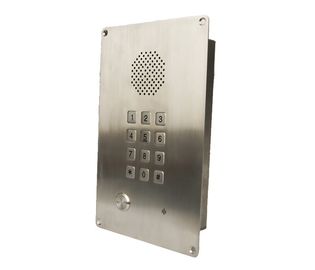

Flush Mounted Analog Door Intercom , Rugged Clean Room Phone

Flush Mounted Analog Door Intercom , Rugged Clean Room Phone

Brand Name: J&R
Model Number: JR308-FK-IW
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Material:
Stainless Steel
Warranty:
2 Years
Weather Protection:
IP65
Unit Size:
150*240*50 (mm)
Weight:
2 KG
Version:
Available In Analog, SIP, GSM/3G
Power Supply:
Phone Line/ PoE/ 12V DC
Keypad:
12-key Metal Keypad
Customized:
Support
Color:
Grey
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

outdoor sip phone

,

sip door intercom

,

Clean Room Analog Door Intercom

Product Description

Flush-mounted Clean Room Telephone with Stainless Steel Housing, Analogue Door Intercom


The Hands free Telephone is designed to meet the needs of client who experience loss through vandalism.

Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.





APPLICATIONS

Idead for Clean room, Schools, Streets, Public square, Court houses, Rail platforms, Car-parks, Police stations, Hospitals, Gate entry, Firefighter, Industrial, Prisons, Jail, Guard Stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.




MAIN FEATURES
- Standard Analog Phone, VoIP/SIP Phone, GSM/3G Phone

- Corrosion Resistant & Anti vandal body
- Stable, durable and violence-resistible with a waterproof ratio of IP65


- With the “one-touch call" function(by pre-setting up the target on the server), available for a full-duplex intercom
- Built in Ringer, which provides penetrating calling signal

- In wall mounting, simple installation

- 4 X Tamper proof screws for mounting


- With a built-in 8 ohm & 0.5W speaker and a microphone,available for making hands-free calls

- Modular parts for easy service

- 12V DC input or Power over Ethernet (PoE)
- Compatible with standard SIP protocol, independently accessible to VOIP phone system.
  (Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX)

- Inductive Coupler Fitted as Standard for Hard of Hearing

- Impact, shock, fall and vibration proof, able to perform in difficult environments
- CE, FCC, RoHS Compliant



TECHNICAL PARAMETERS


SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
  -Active:1.8W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C




PACKAGE
Unit size: 150*240*50 (mm)
Carton size: 340 *235 *165 ( mm )
Packaging materials: pearl cotton, carton
Gross weight: 3 KG
Net weight: 2 KG
