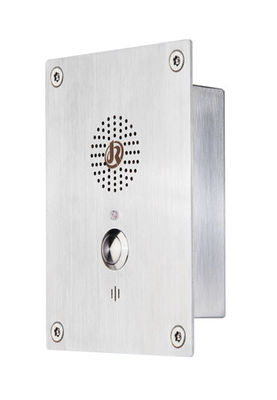

Robust Housing SIP Call Box PoE Powered For Car Parking / Elevator

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR304-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: SUS Steel Version: Available In Analog, SIP, GSM/3G
Warranty: 2 Years Weather Protection: IP55-IP65
Handsfree: Yes Vandal Resistant: Yes
Unit Size: 160*110*60 (mm) Weight: 1.5 KG
High Light:

outdoor sip phone

,

sip door intercom


Product Description

Robust Elevator SIP Intercom, Vandal-proof Hands-free Help Point for Car-parking



The rugged hands-free call box is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.



Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.





MAIN FEATURES

- Standard Analogue phone, or SIP phone

- Robust housing, constructed of stainless steel

- Weather proof protection: IP55 to IP65



- Vandal resistant metal button

- Hands free operation



- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- Phone line powered (Analogue)



- On wall mounting, simple installation

- 4 X Tamper proof screws for mounting

- CE, FCC, RoHS, ISO9001 compliant





APPLICATIONS

Idead for Clean room, Schools, Streets, Public square, Court houses, Rail platforms, Car-parks, Police stations, Hospitals, Gate entry, Firefighter, Industrial, Prisons, Jail, Guard Stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





TECHNICAL PARAMETERS

SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



3G Version
Power Supply 12V DC
Power Consumption -Idle:0.3W
-Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency

A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz






PACKAGE

Unit size: 160 *110 *60 (mm)

Carton size: 340 *235 *165 ( mm )

Packaging materials: pearl cotton, carton

Gross weight: 2.5 KG

Net weight: 1.5 KG
