Elevator Emergency Phone
Created with Pixso.

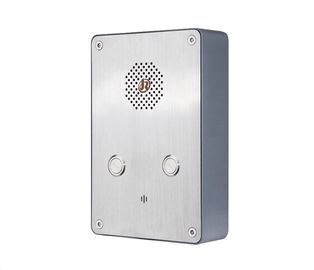

Speed Dial Elevator Emergency Phone / Lift Intercom Phone With 2 Buttons

Speed Dial Elevator Emergency Phone / Lift Intercom Phone With 2 Buttons

Brand Name: J&R
Model Number: JR301-2B-IW
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Material:
SUS Steel
Customized:
Yes
Warranty:
2 Years
Weather Protection:
IP65
Button:
Stainless Steel
Handsfree:
Yes
Vandal Resistant:
Yes
Unit Size:
136*206*42(mm)
Weight:
1.6 KG
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

lift emergency phone

,

lift intercom phone

,

Speed Dial Elevator Emergency Phone

Product Description

Stainless steel vandal proof help point , 2 buttons emergencya intercom



The Hands free SOS call box is designed to meet the needs of client who experience loss through vandalism.



Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.



Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

- Standard Analogue phone or SIP phone

- Robust housing, constructed of stainless steel

- Weather proof protection: up to IP55



- Hands free operation

- Two vandal resistant buttons can programmable for speed-dialing (PPT)

- On wall mounting, simple insntallation

- 4 X Tamper proof screws for mounting



- Phone line powered (Analog version)

- External power supply or PoE (SIP version)

- RJ45 Port for SIP connection

- CE, FCC, RoHS compliant





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)






PACKAGE

Unit size: 220 *150 *50 (mm)

Carton size: 340 *235 *165 ( mm )

Packaging materials: pearl cotton, carton

Gross weight: 3 KG

Net weight: 2 KG
