IP65 Voip Elevator Emergency Phone Call Box 170*130*60mm Powder Coated

Basic Information
Brand Name: JR
Model Number: JR313-SC
Minimum Order Quantity: 5
Price: customize
Packaging Details: Package: Pearl Cotton, Carton Carton Size:200*140*100( mm )
Delivery Time: 5-8day
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Color: Red,Yellow,Customized Material: Steel
Communication: Analogue,SIP,GSM,3G,4G Unit Size: 170*130*60(mm)
Net Weight: 2.2KG
High Light:

powder coated IP65 Elevator Emergency Phone


Voip Emergency Elevator Telephone


170*130*60mm Elevator Emergency Phone

Product Description

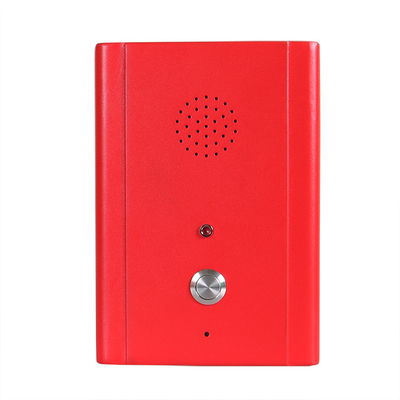

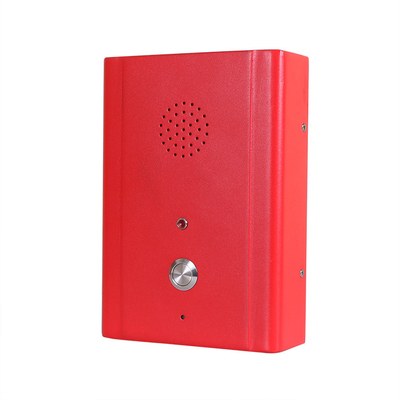

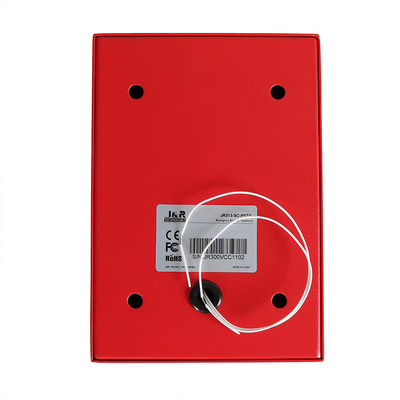

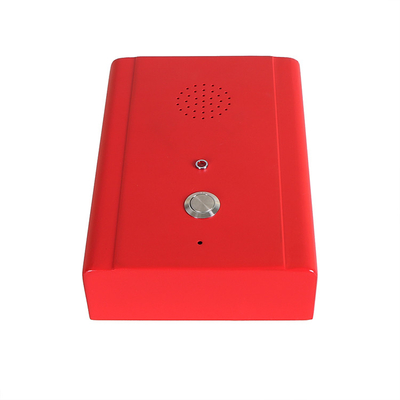

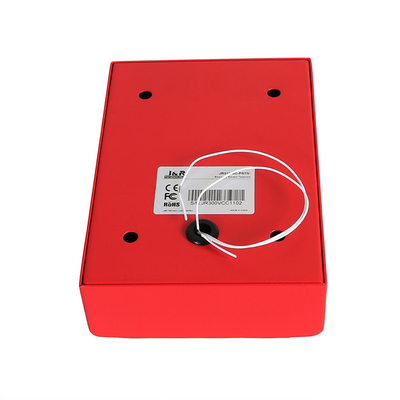

Elevator intercom JR313-SC

The elevator intercom phone is a phone specially designed for elevator emergency calls. The mobile phone adopts embedded installation, making the mobile phone a perfect embedded elevator, with a smooth and textured appearance. We not only provide elevator intercom phones but also provide a full set of elevator intercoms.

The elevator intercom adopts embedded and wall-mounted installation methods, which are easy to install and have a wide range of applications. Emergency elevator button, use the one-touch dial. Quick response, may encounter elevator emergency, seek help in time. As a professional elevator intercom factory, we provide different kinds of elevator intercoms and export to 100 countries. The world's professional elevator walkie-talkie manufacturer!


Description Item

Standard Analogue phone Robust housing, constructed of cold rolled steel with powder coated
Vandal resistant metal button Can be programmed remotely by tone phone
Hands free operation On wall mounting, simple installation
Programmable for speed-dialing (PPT) Weather protection IP54-IP65
4X Tamper proof screws for mounting CE, FCC compliant
Support Version:Analogue/SIP/GSM/3G/4G Certification:CE, ISO,RoHS,FCC
Package:Pearl Cotton,Carton HS Code:8517180090
Carton Size:200*140*100( mm ) Unit Size:170*130*60(mm)
Net Weight:2.2kg Vandal Resistant


Technical parameters

Operating Temperature:-30°C to +65°C
Storing Temperature:-40°C to +75°C
Ringing ToneShrill warble tone 80 dBA @ 1 metre typical
M.T.B.F.excess of 50,000 hours using
Dialing MF (tone)
Lightning/Transients Protection to ITU-T k.21 enhanced levels


Based on a cold rolled steel body, this emergency speakerphone provides clear hands-free, zoomed operation in any public area. It was designed to meet the needs of customers who suffered losses due to vandalism. It is suitable for schools, streets, squares, courts, railway stations, parking lots, police stations, hospitals, outdoor buildings, gate entrances, etc.
