| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR301-SC-IW |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Stainless Steel | Customized: | Support |
|---|---|---|---|
| Warranty: | 2 Years | Weather Protection: | IP55-IP65 |
| Button: | Vandalproof | Hands-free: | Yes |
| Unit Size: | 136*206*42 (mm) | Weight: | 2 KG |
| High Light: | sip outdoor intercom,sip door intercom,Stainless Steel Housing Clean Room Telephone |
||

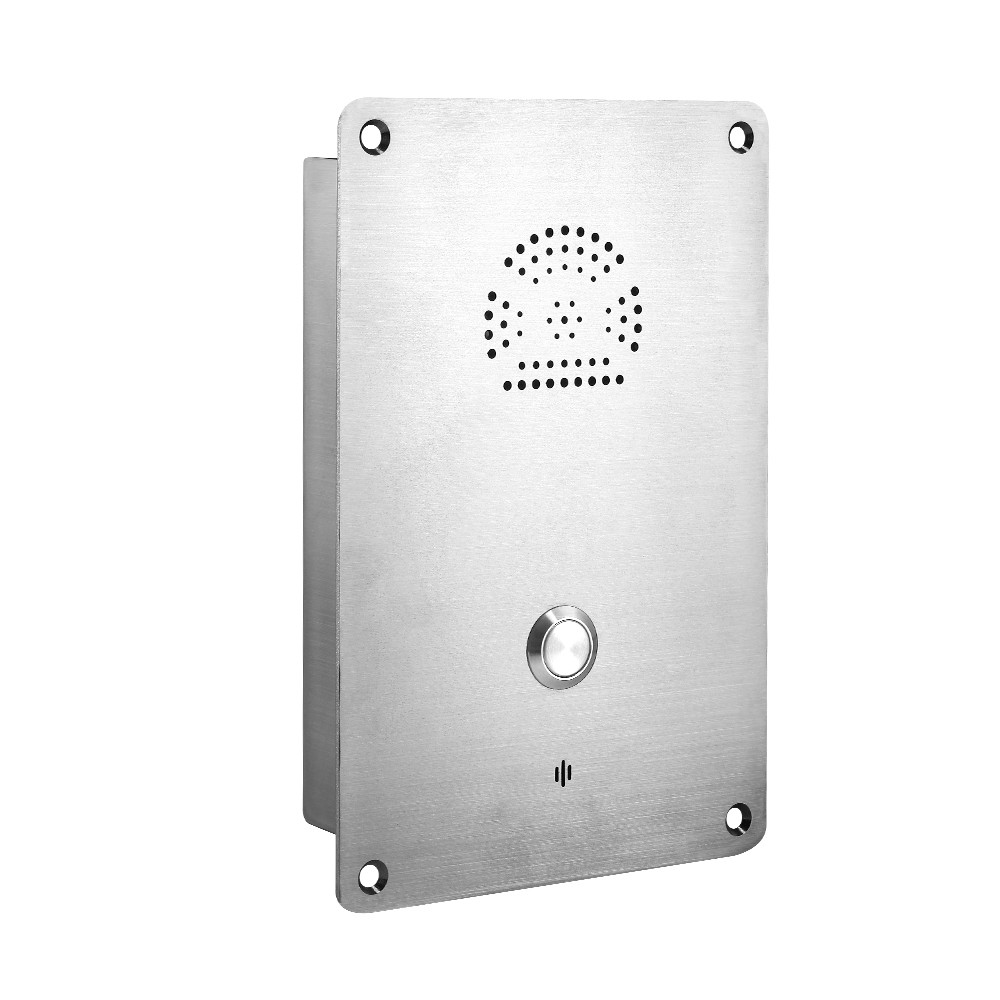

Vandal Proof Flush mounted Clean Room Telephone with Stainless Steel Housing
The Flush mounted vandal proof intercom is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area.
It is designed to meet the needs of clients who experience loss through vandalism.
This intercom has been widely used in Clean room, Schools, Streets, Public square, Court houses, Rail platforms, Car-parks, Police stations, Hospitals, Gate entry, Firefighter, Industrial, Prisons, Jail, Guard Stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard Analog Phone,VOIP/SIP Phone, GSM/3G Phone
- Corrosion Resistant & Anti vandal body
- Stable, durable and violence-resistible with a waterproof ratio of IP65
- With the “one-touch call" function (by pre-setting up the target on the server), available for a full-duplex intercom
- Built in Ringer, which provides penetrating calling signal
- Impact, shock, fall and vibration proof, able to perform in difficult environments
- Multipurpose Design for Surface or Post mounting, Simple Installation (Mounting Brackets for mounting on structure)
- With a built-in 8 ohm & 0.5W speaker and a microphone,available for making hands-free calls
- Inductive Coupler Fitted as Standard for Hard of Hearing
- Modular parts for easy service
- CE, FCC, RoHS Compliant
TECHNICAL PARAMETERS
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
PACKAGE
Unit size: 210 *140 *50 (mm)
Carton size: 340 *235 *165 ( mm )
Packaging materials: pearl cotton, carton
Gross weight: 3 KG
Net weight: 2 KG
