Waterproof Industrial VoIP Phone , Reliable Vandal Proof Heavy Duty Telephone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-FK-HB
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Weather Resistant: IP67
Warranty: 2 Years Installation: Wall/ Pillar Mounting
Color: Yellow, Blue, Red, Orange (or Optional) Size: 246 *339 *126 (mm)
Net Weight: 12 KG (with Lamp&horn) Vandal Resistant: Yes
Version: Analogue, SIP/VoIP, GSM/3G
High Light:

heavy duty telephone

,

sos telephone

,

Waterproof Industrial VoIP Phone Vandal Proof


Product Description

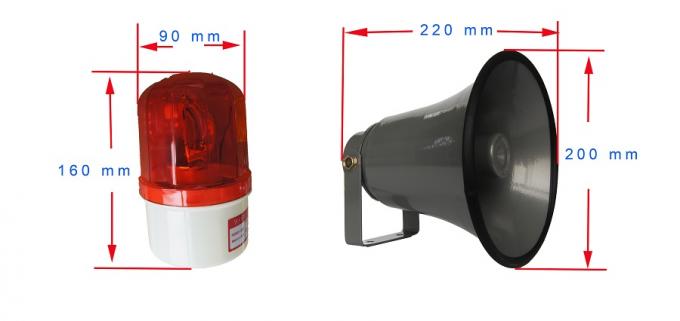

Moisture Resistant VoIP Industrial Telephones with Flashing Lamp & Horn


This Moisture Resistant industrial telephone JR101-FK-HB is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Extremely easy to install. The cable entrance is on the bottom of the phone to prevent from artificial damage, while thebutton is weather and vandal resistant.

Applications

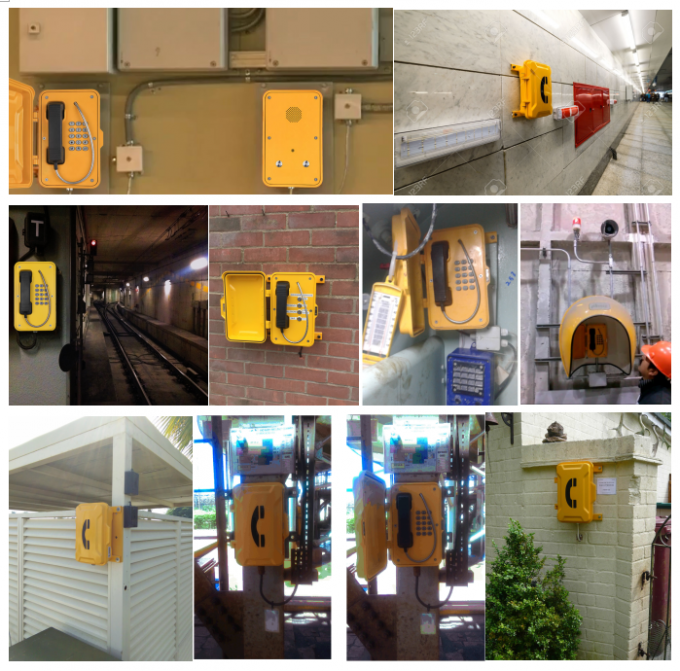

This weatherproof industrial telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.

Main Features:


- Standard Analogue phone, or SIP phone, or GSM/3G phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
   “LR button for last number redial
   “R for flash recall
   “M for muting
- Wall/ Pillar mounting, simple installation
The phone will ringing loudly and lamp will flashing when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.
- Phone line powered (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant


Technical Parameters



Analogue Version
Power Supply  From the analogue telephone network
Supply Voltage  24 VDC to 65 VDC
Supply Current  20 mA DC to 100 mA DC
Ringer Volume  - 80dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method  DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply  12V DC
Power Consumption  -Idle: 0.3W
 -Active: 1.5W
Communication Type  Full duplex
Ringer volume  90~95dB(A) at a distance of 1 m
Program Method  Remote programming by SMS
Frequency

 A version:
 - Dual-Band WCDMA/HSDPA 850/1900MHz
 - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
 E version:
 - Dual-Band UMTS/HSDPA 900/2100MHz
 - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
 J version:
 - Dual-Band UMTS/HSDPA 850(800)/2100MHz
 - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



 Waterproof Industrial VoIP Phone , Reliable Vandal Proof Heavy Duty Telephone 0

Package

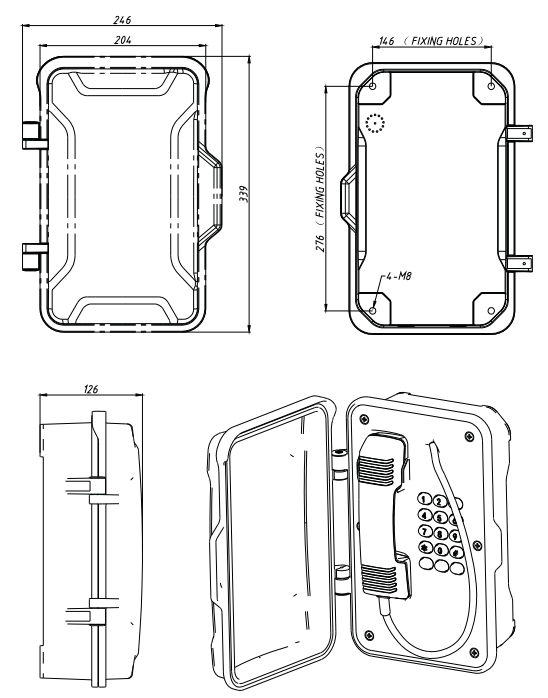

Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 11 KG
Gross weight: 12 KG
Waterproof Industrial VoIP Phone , Reliable Vandal Proof Heavy Duty Telephone 1
Waterproof Industrial VoIP Phone , Reliable Vandal Proof Heavy Duty Telephone 2
Waterproof Industrial VoIP Phone , Reliable Vandal Proof Heavy Duty Telephone 3
