| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JRSP-SIP-01 |
| Minimum Order Quantity: | 1 Piece |
| Price: | USD 179 Negotiable |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 5-10 working days after payment |
| Payment Terms: | L/C, T/T, Western Union，PayPal |
| Supply Ability: | 10000pcs per month |
| Product Name: | SIP Horn Speaker | Material: | Impact-resistant Engineering Plastic |
|---|---|---|---|
| Version: | SIP | Ringing Volume: | >115dB |
| Protection Type: | IP65 | Application: | Metro, Railway, Highway Side,Tunnel,Roadside Etc |
| Operating Conditions: | -40°C To 60 °C | Dimensions: | 280mm*205mm*280mm |
| Weight: | 1.8KG | Installation: | Wall Mounting Or Pillar Mounting |
| High Light: | Waterproof SIP Speaker Horn,25W SIP Speaker Horn,SIP Horn Speaker For Broadcasting Propaganda |
||

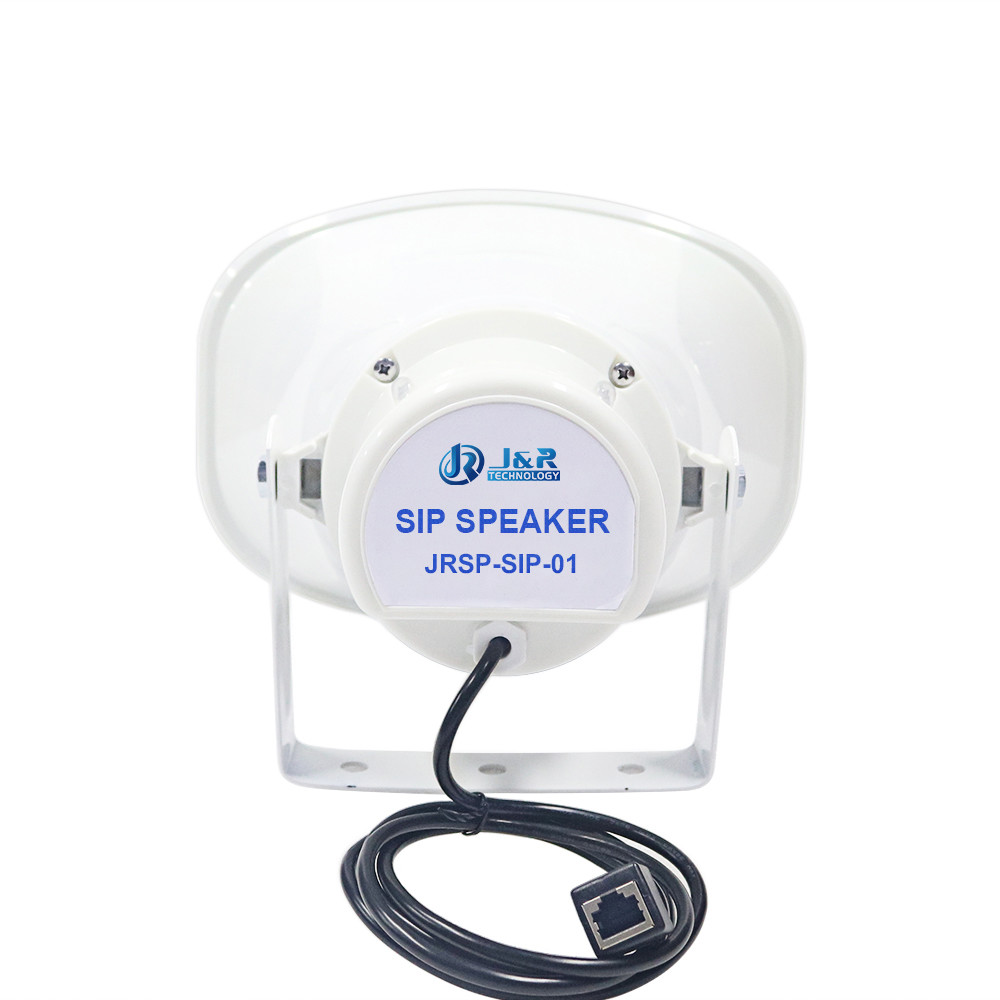

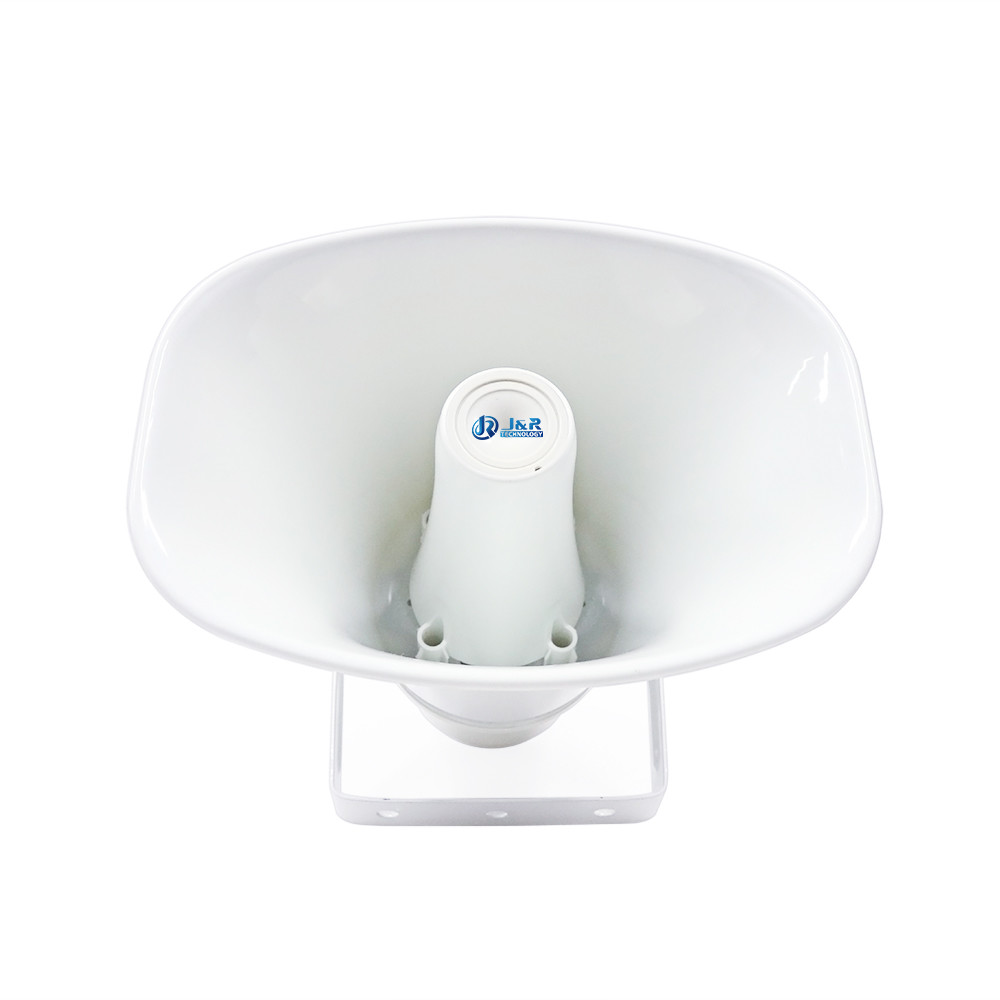

SIP Speaker JRSP-SIP-01 is designed for outdoor environments. It allows users to remotely warn off intruders before they commit a crime, to deliver instructions during an emergency or to make general voice messages. The SIP speaker also support to play a prerecord audio file manually or automatically in response to an alarm event.
Open standards support easy integration with network video, access control and VoIP (supporting SIP). JRSP-SIP-01 is a standalone unit that can be placed almost anywhere, which supports a flexible, stable and cost-effective approach to system design.
> All-in-one speaker system
> Connect to standard network
> PoE, Simple installation
Specification
| Audio | |
| Audio streaming | One-way |
| Audio encoding | G.722, G.722.2, G.711μ/a, G.729A/B, G.723.1,OPUS |
| Additional Media Features |
Acoustic echo cancelation (AEC)- multiple path, wideband acoustic EC, Packet Loss Concealment, Silence Suppression, Voice Activation Detection, Adaptive Jitter Buffer |
| Speaker | |
| Max sound pressure level | >115dB |
| Frequency response | 280 Hz - 12.5 kHz |
| Coverage pattern | 70° horizontal by 100° vertical (at 2 kHz) |
| Amplifier | |
| Amplifier description | Built-in 25 W Class D amplifier |
| Protocol Support | |
| VoIP and Signaling |
SIP–RFC 3261, SDP–RFC 2327, SIP over TCP/UDP/TLS, DNS_SRV (Redundancy), Digest authentication, PRACK, Early Media, SIP Subscribe notify, BLF (busy lamp field) |
| Data Protocols |
IPv4,TCP,UDP, ICMP, ARP, RTP, SRTP, RTCP-XR,802.1x,Static IP/DHCP IP Assignment, IEEE802.1p/Q,QoS/ToS,HTTP/HTTPS/DHCP,NTP,FTP/TFTP,CDP/LLDP VLAN Configuration, LDAP |
| Security | 802.1x, HTTPS, SIP over TLS and SRTP, Configuration file encryption |
| Provisioning & Management | Web Server for Configuration and Management,Configuration update via FTP, TFTP, HTTP, HTTPS, DHCP Options (66,67,160,12,60,77) |
| General Specifications | |
| Casing | Impact-resistant engineering plastic, IP65-rated |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at (max. 12.95 W) |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| Operating conditions |
-40°C to 60 °C Humidity 10-100% RH (condensing) |
| Dimensions | 280mm*205mm*280mm |
| Weight | 1.8KG |
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: transtation, plant, oil and gas,Outdoor station, Bridge,Mine, and related industrial application, etc.
