JR205-FK Prison Outdoor Vandal Proof Telephones 16 Key Rugged Keypad

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR205-FK
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Stainless Steel Keypad: 16-key Rugged Keypad
Protection Type: IP65 Net Weight: 3 KG
Version: Analog, SIP, GSM/3G Armored Cord: Yes
Handset: Vandal Resistant MOQ: 1 Set
High Light:

Stainless Steel Prison Telephone

,

16 Key Rugged Keypad Prison Telephone

,

ISO9001 Vandal Proof Telephones


Product Description

Anti-corrosion VoIP Telephone for Prison, Vandal-proof Inmate Telephone



Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

Extremely easy to install.



The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

1. Standard Analogue/ SIP/ GSM/ 3G Phone
2. Can be programmed remotely by tone phone or locally via keypad
3. Robust housing, constructed of stainless steel
4. Handset operation


5. Weatherproof and corrosion resisitant handset
6. Mini Size, on wall mounting, simple intallation
7. Weather proof protection IP54-IP65
8. Inductive coupler fitted as standard for hard of hearing


9. Tamper resistant fixings
10. Fast-fit terminal connection
11. Full Rugged & Durable keypad (16keys),easy to operate
12. Non-volatile memory


13. Stainless steel armoured handset cord
14. Four additional buttons programmable for speed dial
15. Inductive coupler fitted as standard for hard of hearing
16. CE, FCC, RoHS, ISO9001 compliant







TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C





PACKAGE

unit size: 300 *120 *101(mm)

Packaging materials: pearl cotton, carton

Net weight: 3 KG

Gross weight: 4 KG

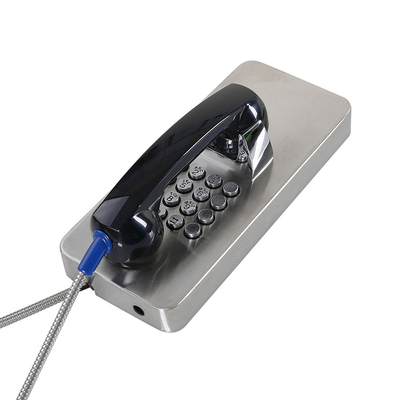

JR205-FK Prison Outdoor Vandal Proof Telephones 16 Key Rugged Keypad 0

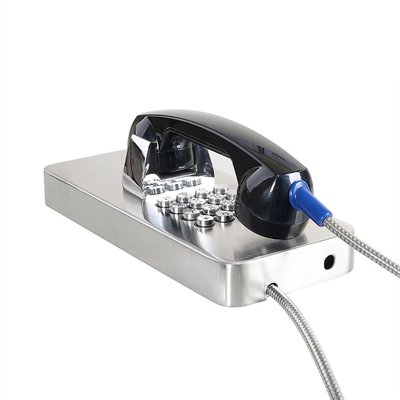

JR205-FK Prison Outdoor Vandal Proof Telephones 16 Key Rugged Keypad 1

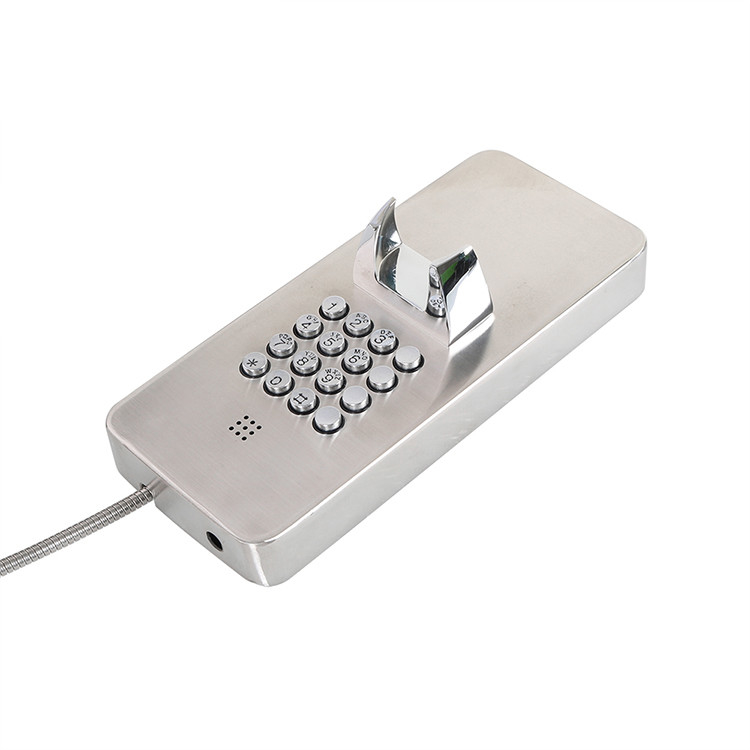

JR205-FK Prison Outdoor Vandal Proof Telephones 16 Key Rugged Keypad 2

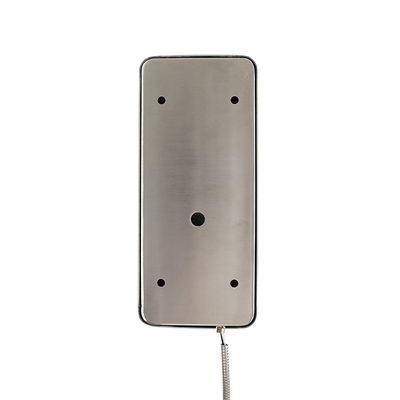

JR205-FK Prison Outdoor Vandal Proof Telephones 16 Key Rugged Keypad 3
