IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing

China IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing supplier
IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing supplier IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing supplier IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing supplier IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing supplier IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing supplier

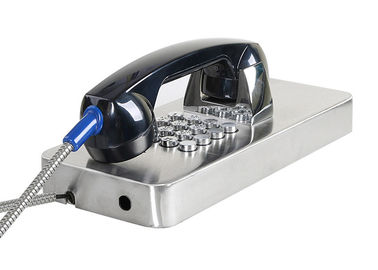

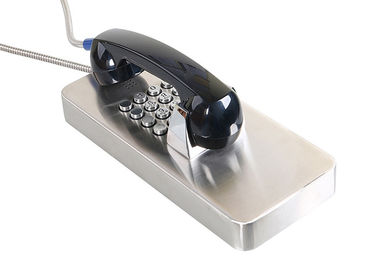

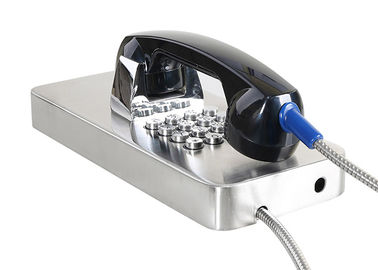

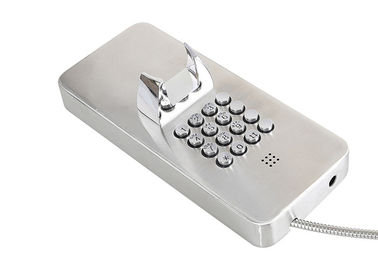

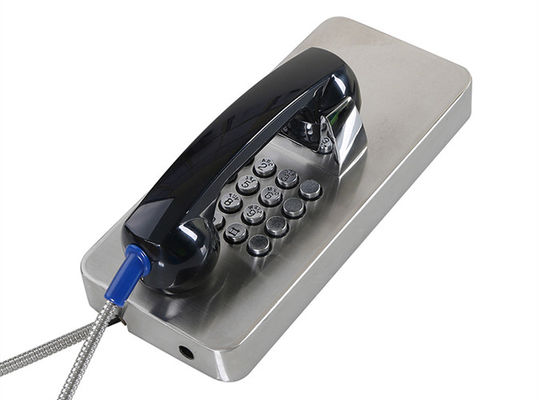

Large Image :  IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR205-FK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Full Keypad: Yes
Protection Type: IP55-IP65 Net Weight: 3 KGS
Dialing: MF (tone) Armored Cord: Yes
Magnetic Hook: Yes Power Supply: Telephone Line/POE/DC Powered
Application: Prison,Factory,other Public Area

Vandal proof Speed Dial Heavy Duty Stainless Steel Prison Telephone



Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.



Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.



IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing



Stainless Steel Prison Telephone MAIN FEATURES

- Standard Analogue phone, available for SIP version

- Robust housing, constructed of stainless steel

- Vandal resistant handset with armored cord

- Weather proof protection up to IP65



- Full Rugged & metal keypad

- Four additional buttons programmable for speed dial

- Can be programmed remotely by tone phone or locally via keypad

- Non-volatile memory



- Telephone line powered (Analog version )

- External Power supply or PoE powered (SIP version)

- RJ45 port for SIP phone



- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliant

- On wall mounting, simple installation





Stainless Steel Prison Telephone APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C







PACKAGE

Unit size: 300 *120 *101 (mm)

Carton size: 340 *235 *165 (mm )

Packaging materials: Pearl cotton, Carton

Net weight: 3.5 KG

Gross weight: 4 KG



IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing

IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing

IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing

Our Company

J&R is a China-based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model available for Analogue version, IP/SIP version,GSM/3G version)
After well study your information, we sincerely hope to enter into partnership with your esteemed company. and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and cost-effective solution to support you with the project requirement and marketing proposal.


IP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone DialingIP55-IP65 Heavy Duty Analog Phone , Stainless Steel Jail Telephone MF Tone Dialing
