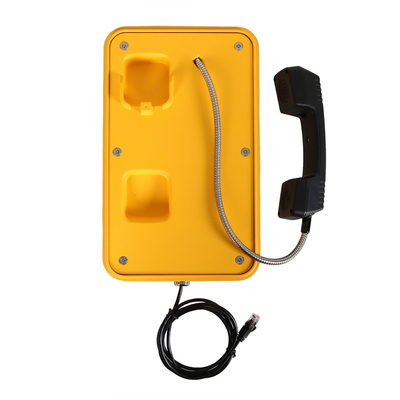

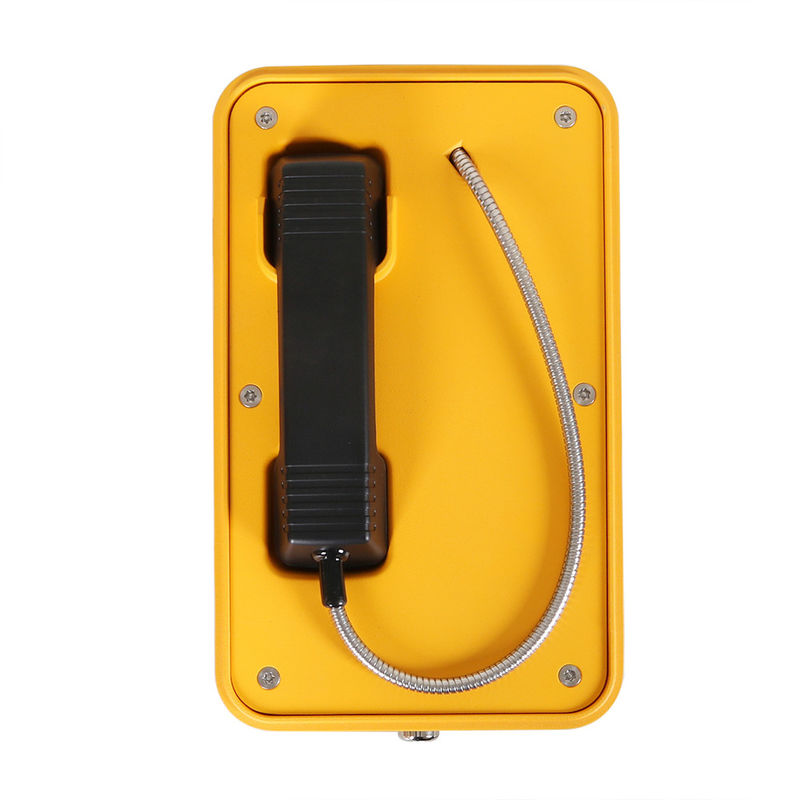

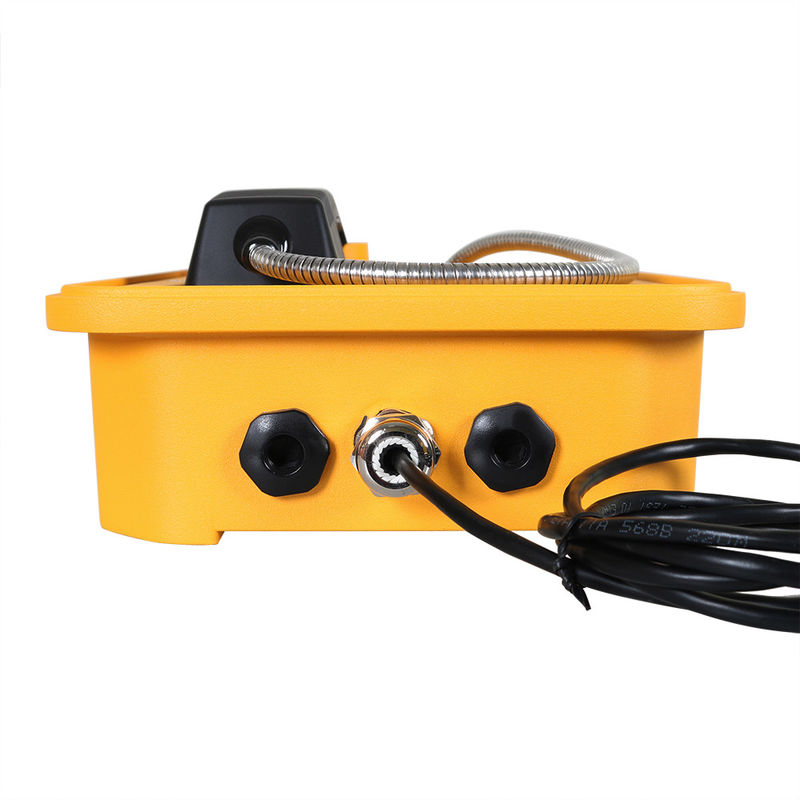

PoE Waterproof Industrial Voip Telephone Aluminum Alloy Material

PoE Waterproof Industrial Voip Telephone Aluminum Alloy Material

Brand Name:	J&R
Model Number:	JR103-CB
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, IP67, ISO9001:2015

Material:

Aluminum Alloy

Color:

Yellow, Blue, Red, Orange (or Optional)

Power Supply:

PoE

Weather Resistant:

IP67

Warranty:

2 Years

Size:

246 *339 *109 (mm)

Net Weight:

6 KG

Installation:

Wall/ Pillar Mounting

Corrosion Resistant:

Yes

Anti-vandal:

Yes

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

Waterproof Industrial Voip Telephone

PoE Industrial Voip Telephone

PoE weatherproof voip phone

Product Description

Impact Resistant Watertight Industrial Auto-dial Intercom, Rugged Mining Telephone

This auto-dial SIP telephone is fully contained within a corrosion resistant cast aluminum weatherproof case, providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platforms, Highways side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants, and related heavy duty industrial applications, etc.

Main Features:
Standard SIP/ VoIP phone

Aluminum alloy die-casting body

Vandal resistant handset and armored cord

Wall/ Pillar mounting, simple installation

Inductive coupler fitted as standard for hard of hearing

Weather proof protection to IP67

Programmable for auto-dial

External power supply or PoE (SIP-VoIP)
RJ45 port for SIP phone

CE, FCC, ISO9001, RoHS compliant

SIP-VoIP Technical Parameters

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

Adapter Input:

100-240VAC 50～60Hz Output:5V/1A

Port:

WAN:10/100Base- T RJ-45 for LAN, Auto MDIX

LAN:10/100Base- T RJ-45 for PC, Auto MDIX

Power Consumption:

Idle:1.5W/ Active:1.8W

Voice Features

Support 2 lines SIP, SIP 2.0 (RFC3261)

Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

Echo cancellation: Support G.168 and hand-free can support 96ms

Supports full duplex.

SIP support SIP domain,SIP authentication (none, basic, MD5), DNS name of server, peer to peer

SIP support 2 servers, user can through each server to calling in and out

Network Features

WAN/LAN: support Bridge mode

Support PPPoE for xDSL

Support VLAN

Support Stun penetration

Support DHCP get IP on WAN port

Package

Unit Size:	339246124 mm (H W D)
Carton Dimension:	200 * 300 440 mm (H W * D)
Packaging materials:	pearl cotton, carton
Net Weight:	5 KG
Gross weight:	6 KG

PoE Waterproof Industrial Voip Telephone Aluminum Alloy Material 0
