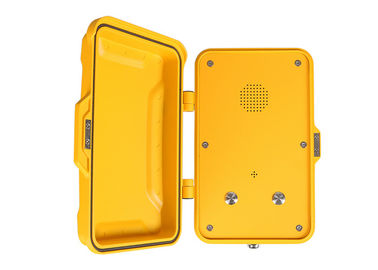

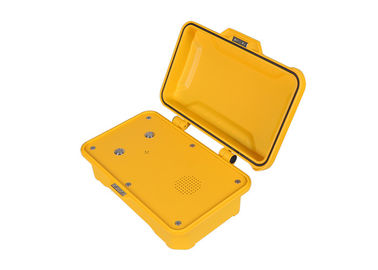

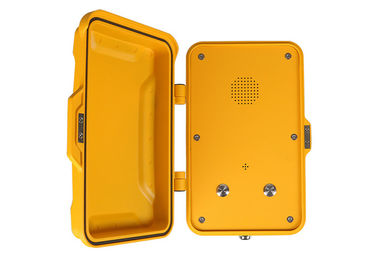

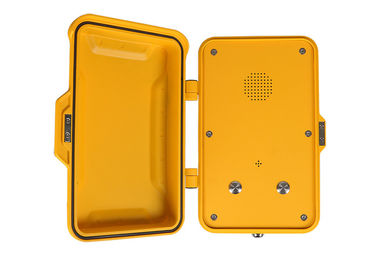

IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel

China J&R Technology Limited certifications
China J&R Technology Limited certifications
I'm Online Chat Now

IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel

IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel
IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel

Large Image :  IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR102-2B

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 3000 sets per month
Detailed Product Description
Product Name: IP67 Outdoor Emergency Industrial VOIP/SIP Telephone Intercom For Tunnel Material: Die-casting Aluminum Alloy
Function: SOS,speed Dial, Emergency Call Main Chip: Audiocodec
Modle: Analog/ SIP/ GSM/ 3G Mounting: Wall /Pillar Mounted
Ingress Protection Rating: IP65-IP67 Temperature: -35°C To +65°C
Warranty: 2 Years For Telephone, 6 Months For Telephone Parts Net Weight: 6.5kg
Gross Weight: 7kg Powered: Telephone Line Powered Or POE/DC12V Powered
High Light:

rugged voip phone

,

voice over ip phone

Product Description



IP67 Outdoor Emergency Industrial VOIP/SIP Telephone Intercom for Tunnel



The industrial telephones Intercom are fully contained within a corrosion resistant die-casting aluminium alloy weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.
The industrial Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.



Feature

IP67 Outdoor Emergency Industrial VOIP/SIP Telephone Intercom for Tunnel

VoIP/SIP phone
Robust construction, Vandal resistant
All weather protection IP66-67
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Programmed via web interface
Non-volatile memory
Magnetic reed hook switch to reduce parts subject to wear

DC 5V powered or PoE(Power Over Ethernet)
No Additional Interface Required
Web Page Configuration
Real-time Alarm Reporting
SIP Compatible
RJ45 LAN or WAN Direct Connection
Automatic Call Divert (rollover), via Memory List
Auto Answer
Multicast Capable

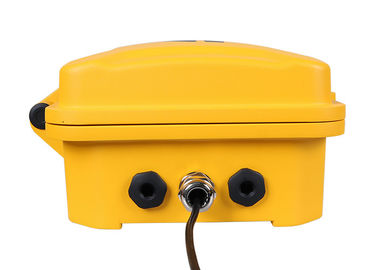

Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice


Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
Compatible with standard SIP protocol VOIP phone systems. (Asterisk,Cisco,Mitel,Elastix,Freeswitch,MiniSipServer,Yeastar MyPBX etc.)



Specification

IP67 Outdoor Emergency Industrial VOIP/SIP Telephone Intercom for Tunnel

Casing Material Die cast aluminium body, cold rolled steel paceplate epoxy powder coated
Colors yellow, other colors to special order
Handset MaterialNo handset No handset
Keypad No Keypad
Temperature:Operating Operating: -30°C to +65°C Storing: -40°C to +75°C
Weather Resistance IP66-IP67
Ringing Tone Shrill warble tone 90 dBA @ 1 metre typical
Hook switch No hook switch
Push button Vandal resistant stainless steel button
M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight Up to 6 kg depending on option
Power Input 12-24V DC

Application
IP67 Outdoor Emergency Industrial VOIP/SIP Telephone Intercom for Tunnel

Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.

IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel 0



IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel 1
IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel 2
IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel 3
Our Company
Speed Dial Emergency Intercom Industrial Waterproof Telephone for Highway

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.

IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel 4

Packing
New Design J&R Speed Dial Orange VOIP Industrial Tunnel Telephone

Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 6KG
Gross weight: 7KG

IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel 5

IP67 Outdoor Emergency Industrial VoIP Phone SIP Intercom Simple Installation For Tunnel 6
