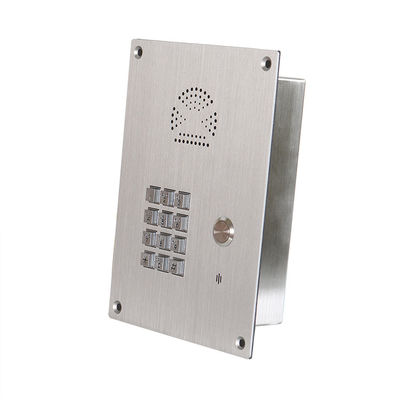

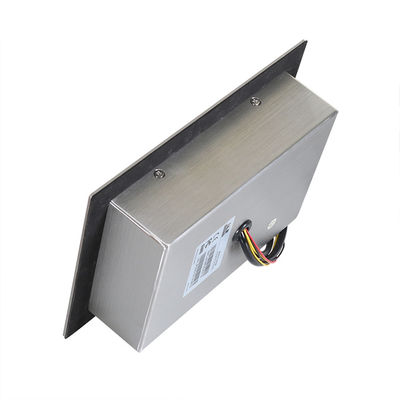

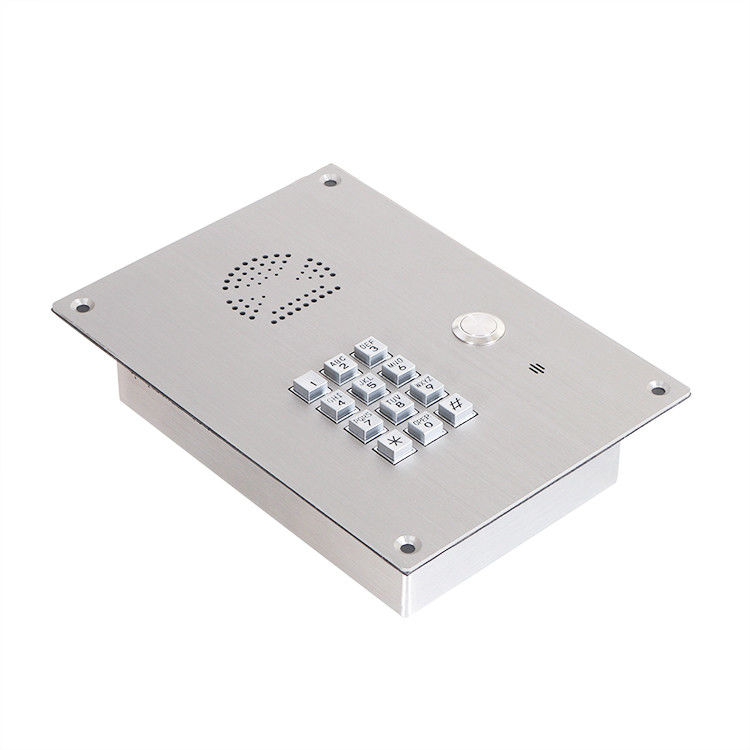

GSM 3G IP55 SS Speed Dial Telephone 65VDC DTMF For Pharmaceutical Factories

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, ISO9001

Model Number: JR308-FK

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Reconsideration

Packaging Details: pearl cotton, carton

Delivery Time: 2-5 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

IP55 SS Speed Dial Telephone

,

GSM 3G Speed Dial Telephone

,

65VDC DTMF Sos Emergency Phone

Material:
Stainless Steel
Warranty:
2 Years
Weather Protection:
IP55-IP65
Handsfree:
Yes
Unit Size:
150*200*50(mm)
Weight:
2 KG
Version:
Available In Analog, VoIP, GSM/3G
Power Supply:
Phone Line/ 12VDC/ PoE
Material:
Stainless Steel
Warranty:
2 Years
Weather Protection:
IP55-IP65
Handsfree:
Yes
Unit Size:
150*200*50(mm)
Weight:
2 KG
Version:
Available In Analog, VoIP, GSM/3G
Power Supply:
Phone Line/ 12VDC/ PoE
Product Description





Product Description



JR308-FK-IW Speed Dial Telephone Sos Emergency Call System,Emergency phone for pharmaceutical factories



JThe Vandal Resist Emergency Telephone is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking

operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.





Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20mA DC to 100mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +75°C









Features



Speed Dial Telephone Sos Emergency Call System,Emergency phone for pharmaceutical factories





★ Stainless steel body - Strong impact resistance

★ Handsfree speakerphone - push button to connect rescue center

★ In wall mounting - simple installation

★ Vandal resistant full keyboard - can be programmed

★ Weather proof protection - up to IP65

★ Standard Analogue phone or SIP phone



★ Transients - Protection to ITU-T k.21 enhanced levels



★ CE,FCC,ROSH compliant - quality assurance



★ Flexible dial map, support hot-line









Applications



Speed Dial Telephone Sos Emergency Call System,Emergency phone for pharmaceutical factories



JR308-FK Elevator Telephone VoIP / Lift Emergency Telephone is suitable for use in airport, hospital, bank, ATM, campus,

lift/elecator , clean room, outside or outside building, etc.





Emergency phone for pharmaceutical factories
