Product Details:
Payment & Shipping Terms:
|
| Size: | 216 *146 *40(mm) | Color: | Customized |
|---|---|---|---|
| Material: | Stainless Steel | Function: | Communication |
| Installation: | Wall Or Post Mounting | Ringer Volume: | Shrill Warble Tone 90 DBA @ 1 Metre |
| Temperature: | Operating: -30°C To +65°C | Ingress Protection Rating: | IP55 |
| Warranty: | 2 Years | Net Weight: | 2 Kg |
| Gross Weight: | 3 Kg | Feature1: | Waterproof |
| Feature: | Speed Dial | Version: | Analogue/SIP/GSM/3G |
| High Light: | Stainless Steel Elevator Emergency Telephone,GSM Elevator Emergency Telephone,IP65 Auto Dialer Emergency Telephone |
||
Product Description

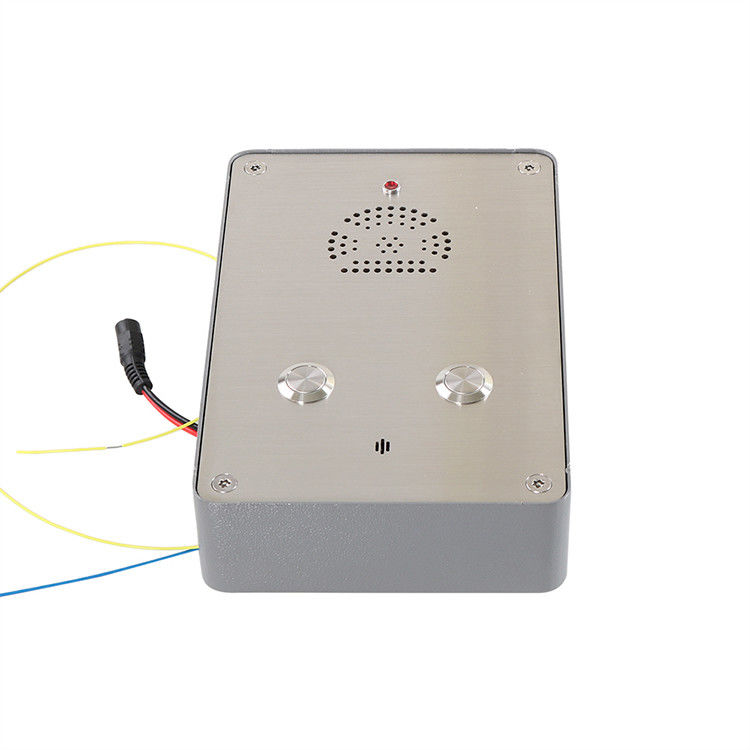

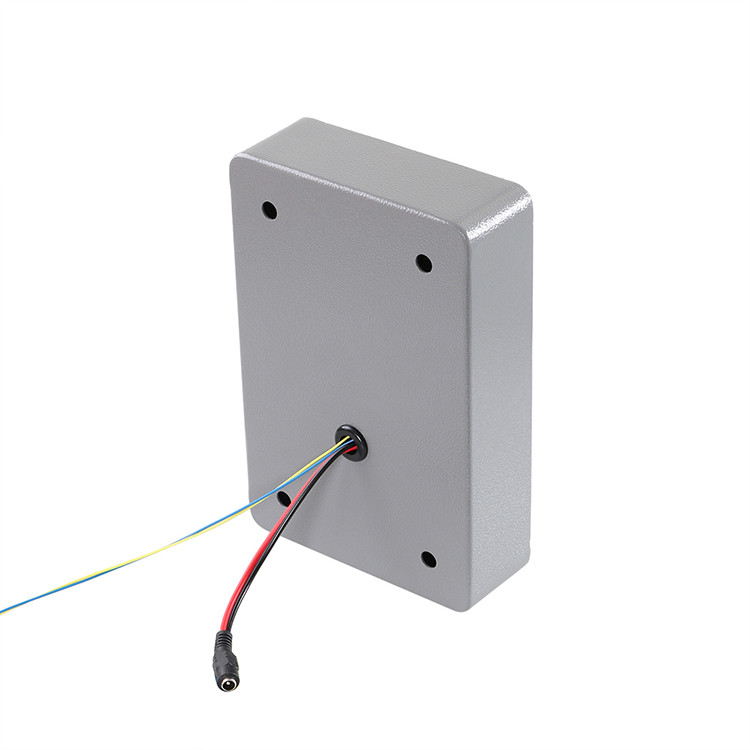

JR301-2B-OW Auto Dialer Elevator Emergency Telephone
Auto Dialer Elevator Emergency Telephone is housing in a cold rolled steel body with a stainless steel panel. Telephone call is a hands-free intercom form, and supports pre-storage number speed dial. The color of the phone has not faded for a long time use. If you have special custom requirements, please contact us.
| Casing Material | Cold rolled steel body |
| Colors | Red, Yellow, Grey |
| Handset | No handset |
| Keypad |
No keypad |
| Temperature | Operating: -30°C to +70°C Storing: -40°C to +75°C |
| Weather Resistance | IP65 |
| Ringing Tone | Shrill warble tone 80 dBA @ 1 metre typical |
| Hook switch | No hook switch |
| Weight | Up to 1 KG depending on option |
Product Specification
Auto Dialer Elevator Emergency Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +75°C |
Features
Auto Dialer Elevator Emergency Telephone
★ Stainless steel panel, anti-vandal & anti-theft
★ Support prestored number and speed dial
★ 3G/GSM mode with standard SIM card
★ Microprocessor control, automatic detection and hang-up
Applications & Project Display
Auto Dialer Elevator Emergency Telephone
Auto Dialer Elevator Emergency Telephone is ideal for elevator, hospital, campus, business & apartment building, ATM, cleanroom, swimming pool etc.
Packing & Delivery
Auto Dialer Elevator Emergency Telephone
| Unit Size | 170 *130 *60 (mm) |
| Carton Size | 200 *140 *100 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 0.8 KG |
| Gross Weight | 1 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
