| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR308-FK |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Stainless Steel | Warranty: | 2 Years |
|---|---|---|---|
| Weather Protection: | IP55-IP65 | Handsfree: | Yes |
| Unit Size: | 150*200*50(mm) | Weight: | 2 KG |
| Version: | Available In Analog, VoIP, GSM/3G | Power Supply: | Phone Line/ 12VDC/ PoE |
| High Light: | IP55 VoIP Elevator Emergency Telephone,GSM 3G Elevator Emergency Telephone,80dBA VoIP Lift Intercom Phone |
||
Product Description

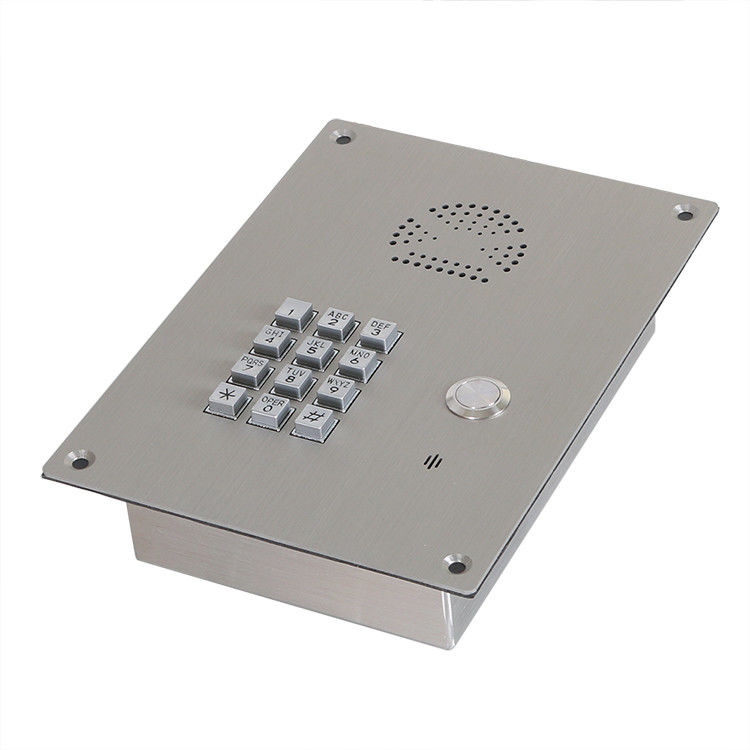

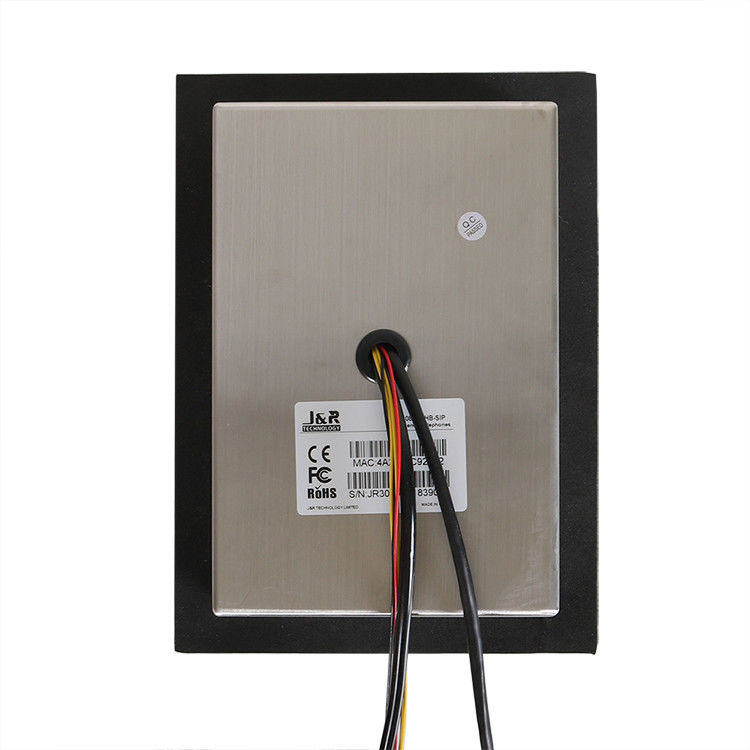

JR308-FK-IW Elevator Telephone VoIP / Lift Emergency Telephone
JR308-FK Elevator Telephone VoIP / Lift Emergency Telephone is constructed of stainless steel which is completely sealed dust and corrosion protected surface.
Four embedded mounting holes to prevent phone be stolen.
| Casing Material | Stainless steel body |
| Colors | RED, YELLOW, GREY |
| Handset Material | No handset |
| Keypad |
Rugged metal keypad (Push button: Stainless steel button with IP65 rate) |
| Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance | IP65 |
| Ringing Tone | Shrill warble tone 80dBA at 1 metre typical |
| Hook switch | No hook switch |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 2.5 kg depending on option |
Technical Specification
Elevator Telephone VoIP / Lift Emergency Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
Features
Elevator Telephone VoIP / Lift Emergency Telephone
Applications
Elevator Telephone VoIP / Lift Emergency Telephone
JR308-FK Elevator Telephone VoIP / Lift Emergency Telephone is suitable for use in airport, hospital, bank, ATM, campus, lift/elecator , clean room, outside or outside building, etc.
Packing & Delivery
Elevator Telephone VoIP / Lift Emergency Telephone
| Unit Size | 200 *150 *52 (mm) |
| Carton Size | 340 *235 *165 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2 KG |
| Gross Weight | 3 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Our Services
Elevator Telephone VoIP / Lift Emergency Telephone
✬ ODM & OEM products or solutions
✬ Sample order is greatly welcomed
✬ We will reply your inquiry within 12 hours
✬ Update the productive process and show the packing details
✬ After delivered the goods, we will track the products for you once every two days, until you get the products.
✬ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
✬ J&R telephone is guaranteed for two years.
Our Company
Elevator Telephone VoIP / Lift Emergency Telephone
FAQ
Elevator Telephone VoIP / Lift Emergency Telephone
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new one with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days
2.Send by Air: Arrive at destination Airport fast then pick it up by yourself
3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
