Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel

China J&R Technology Limited certifications
China J&R Technology Limited certifications
I'm Online Chat Now

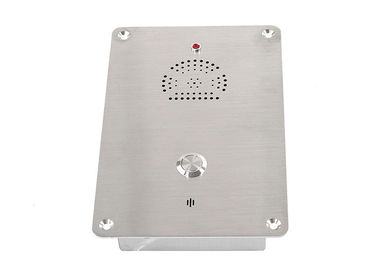

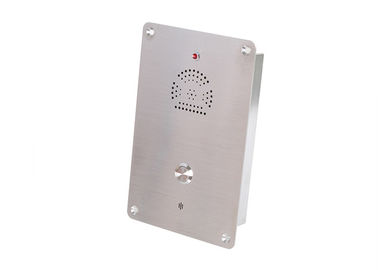

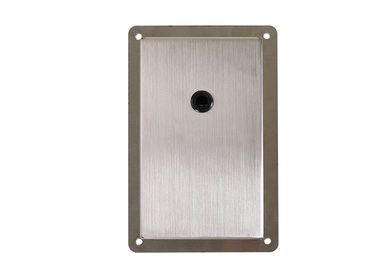

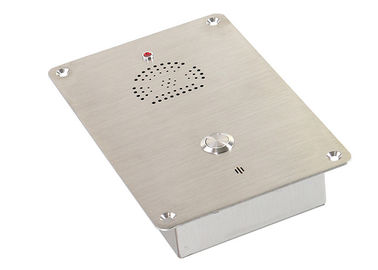

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel
Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel

Large Image :  Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR301-SC-IW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detailed Product Description
Material: SUS 304 Stainless Steel Customized: Support
Warranty: 2 Years Weather Protection: IP55
Unit Size: 206 *136 *42 (mm) Gross Weight: 2 KG
High Light:

lift intercom phone

,

elevator intercom phones

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 0

Product Description

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 1












Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 2



Waterproof Dustproof

Clean Room Intercom

is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking

operation for any public area.



The telephone has high reliability which included 4 anti-tamper screws for mounting

in case the phone is stolen.









Waterproof Dustproof

Clean Room Intercom



Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 3



  Casing Material SUS 304 Stainless Steel
  Colors RED, YELLOW, GREY
  Handset Material No handset
  Push Button Stainless steel push button
  Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

  Weather Resistance IP65 for faceplate
  Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
  Hook switch No hook switch
  M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
  Weight Up to 3 kg depending on option











Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 0

Technical Specification

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 1






Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 6














​






Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 7





Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 3



 Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



 SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711A/u, G.7231 high/low, G.729, G.722
  Communication Type Full duplex
  Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



 Ambient conditions
  Protection type IP 66 as per EN60529
  Operating temperature -30°C to +65°C
  Storage temperature -40°C to +75°C











Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 0

Features

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 1





Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 11


Waterproof Dustproof Clean Room Intercom

★  Robust housing, constructed of stainless steel

  Hands free operation, HD voice quality

  Safe and reliable, 4 X Tamper proof screws for mounting

  In wall mounting, simple installation

  Lightning or Transients protection to ITU-T k.21 enhanced levels













Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 0

Application

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 1









Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 14
Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 15
Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 16




Waterproof Dustproof Clean Room Intercom is ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.











Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 0

Warranty Repair

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 1














Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 19
Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 20


Waterproof Dustproof Clean Room Intercom





1

J&R offers free repair for the following products within 1 year, but additional warranties are available at additional cost:

1.1. Scope: Defects in materials, workmanship and functionality.

2

Requirements:

2.1. Model No. P.O. No. PI No., Shipment date etc.
2.2. Intact J&R label, so the model number and SN can be clearly identified.
2.3. Provide a detailed description of any defects and cause, including a literal description and picture illustrations.

2.4. Other description need for J&R.



3

J&R may refuse to offer free repair for following situations:

3.1. Without intact J&R label, or serial number has been removed or defaced, or SN cannot be clearly identified from purchaser
3.2. Any illegal disassembling, repairing, refitting etc .such as if the products are maintained or modified by any maintainer unauthorized by J&R
3.3. If the products are maintained or modified by any maintainer unauthorized by J&R.
3.4. Any defects that resulted from improper storage or unsuitable working environment.
3.5. Damage or loss of J&R products because of natural disaster (such as earthquake, fire or flood) or other external causes, social unrest or governmental policies etc.
3.6. The product or part that has been modified to alter functionality or capability without the written permission of J&R;
3.7. Any lack of components, components damage from purchaser.









Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 0

Packing & Delivery

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 1








Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 23


PACKING



DELIVERY

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 24




 Unit size 206 *136 *42 (mm)
 Carton size 340 *235 *165 ( mm )
 Packaging materials pearl cotton, carton
 Net weight 2.7 KG
 Gross weight 3.5 KG



Port Shenzhen



Lead Time

(If you finish the payment today, your order will ship out within the delivery date.)



Quantity(Units) 1-10 11-100 100-1000 >1000
Est. Time(days) 2 10 25 To be negotiated













Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 0

Our Company

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 1



Waterproof Dustproof Clean Room Intercom



Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 3



J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP version,GSM/3G/4G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.



Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 28









Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 0

FAQ

Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 1



Waterproof Dustproof Clean Room Intercom



Waterproof Elevator Emergency Phone Clean Room Intercom SUS 304 Stainless Steel 3



Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available

Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.

Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.

Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.

Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.

Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.

Q: When can I receive your quotation?
A: Once learn your detail requirements.

Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
