| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR306-SC |
| Minimum Order Quantity: | 1 set |
| Price: | US$699 - US$1399 |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Color: | Yellow (others Optional) |
|---|---|---|---|
| Warranty: | 2 Years | Weather Protection: | IP65 |
| Button: | Stainless Steel | Handsfree: | Yes |
| Vandal Resistant: | Yes | LED Indicator: | YES |
| Weight: | 6 KG | Option Accessories: | Solar Panel,Battery,Pillar |
| High Light: | outdoor sip phone,sip door intercom |
||
❍ Product Description

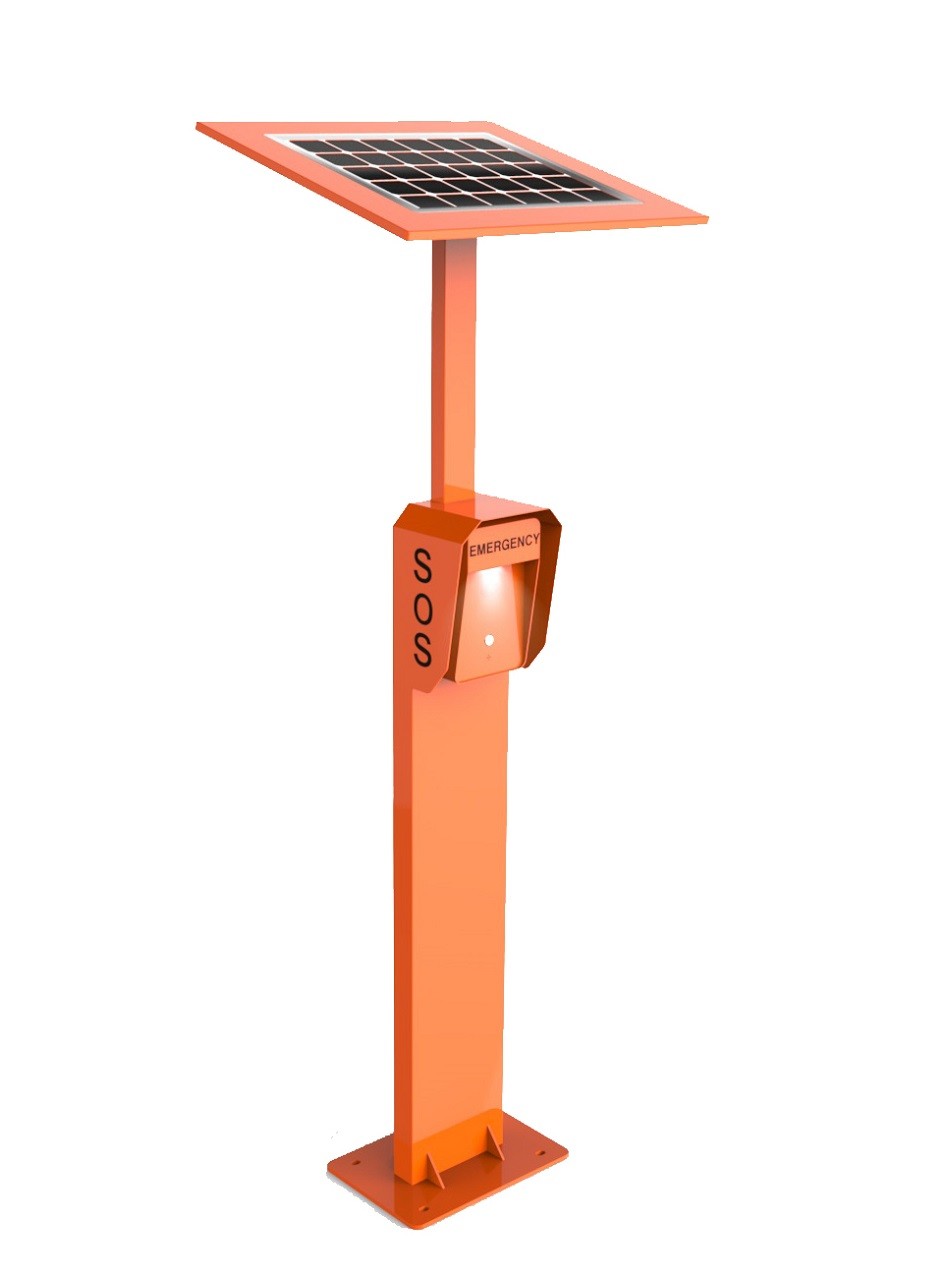

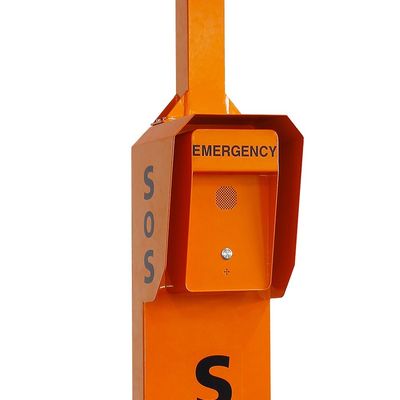

JR306-SC.pdf 3G/4G Roadside Emergency Waterproof Telephone Station, Sip Call Box
Housed in cold rolled steel box and manufactured to a high standard, this SOS call box offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.
| Casing Material | Cold Rolled Steel (salt & dust &corrosion resistant) |
| Colors | Orange, other colors to special order |
| Relative Humidity High | 93% R.H at 40°C (non condensing) |
| Keypad Option | Available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply |
| Temperature | Operating: -25°C to +65°C |
| Excellent Sound Quality | STI approved to 0.9 (Excellent Sound) |
| Ringing Tone | Shrill warble tone 80 dBA at 1 metre typical |
| Type Of Service (ToS) | High throughput and reliability (RFC3168) |
| Quality Of Service (QoS) | Ensuring optimal delivery of voice |
❍ Technical Specification
3G/4G Roadside Emergency Waterproof Telephone Station, Sip Call Box, with Solar Panel
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient Conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -25°C to +85°C |
❍ Features
3G/4G Roadside Emergency Waterproof Telephone Station, Sip Call Box, with Solar Panel
✪ RJ45 Ethernet socket through IP67 plug connector
✪ Corrosion Resistant & Anti vandal body
✪ Built in Ringer, which provides penetrating calling signal
✪ Multipurpose Design for Surface or Post mounting, Simple Installation
✪ It adopts high strength stainless steel shell and hexagon socket screw
✪ Advanced digital echo cancellation technology, fully eliminate echo and prevent squeal
❍ Packing & Delivery
3G/4G Roadside Emergency Waterproof Telephone Station, Sip Call Box, with Solar Panel
| Telephone Unit Size | 339*146*126(mm) |
| Telephone Carton Size | 200*300*440(mm) |
| Packaging Materials | Pearl cotton, Wooden case |
| Port | Shenzhen | ||||
|
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Units) | 1-10 | 11-100 | 101-1000 | >1000 |
| Est. Time(days) | 2 | 10 | 25 | To be negotiated | |
❍ Our Company
3G/4G Roadside Emergency Waterproof Telephone Station, Sip Call Box, with Solar Panel
J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with Thousands Of Customers All Over The World and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include Weatherproof Phones, Explosion Proof Telephone, Prison Phones, Emergency Phones, Elevator Phones , Acoustic Phone Booths And Telephone Kits as well.
❍ FAQ
3G/4G Roadside Emergency Waterproof Telephone Station, Sip Call Box, with Solar Panel
Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available
Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Once learn your detail requirements.
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
