Home > products > Industrial VoIP Phone > Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display

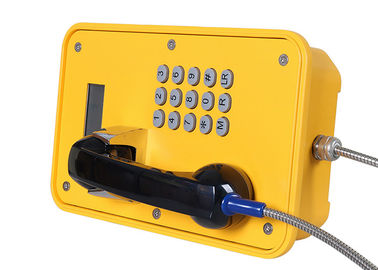

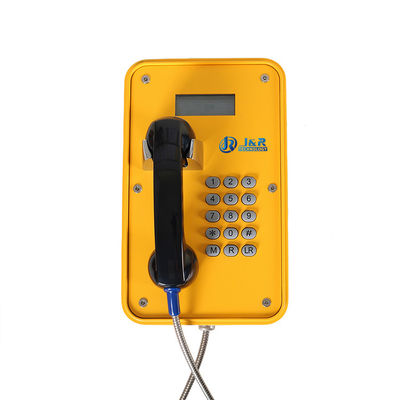

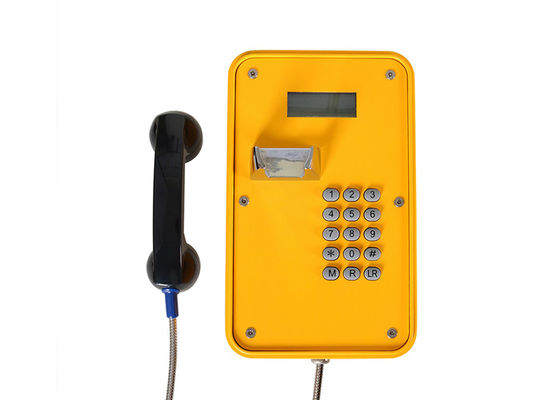

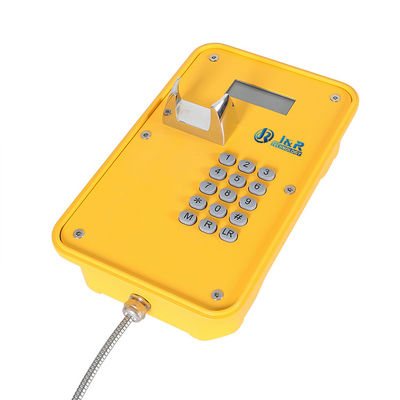

Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, ISO9001

Model Number: JR105-FK

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: US$399~US$599

Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG

Delivery Time: 3-5 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

rugged voip phone

,

voice over ip phone

Material:
Aluminum Alloy
Function:
SOS
Main Chip:
Audiocodec
Package:
Pearl Cotton, Carton
Modle:
Analog/ SIP/ GSM/ 3G/ 4G
Mounting:
Wall /Pillar Mounted
Ingress Protection Rating:
IP66-IP67
Full Keypad:
Yes
Door Cover:
Optional
Temperature:
-30°C To +65°C
OEM:
Yes
Warranty:
2 Years
Feature1:
Anti Vandal
Feature2:
LCD
Material:
Aluminum Alloy
Function:
SOS
Main Chip:
Audiocodec
Package:
Pearl Cotton, Carton
Modle:
Analog/ SIP/ GSM/ 3G/ 4G
Mounting:
Wall /Pillar Mounted
Ingress Protection Rating:
IP66-IP67
Full Keypad:
Yes
Door Cover:
Optional
Temperature:
-30°C To +65°C
OEM:
Yes
Warranty:
2 Years
Feature1:
Anti Vandal
Feature2:
LCD
Product Description



 Product Description

JR105-FK.pdf Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone

┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.



  Relative humidity high 93% R.H at 40°C (non condensing)
  Casing Material Die cast aluminium, epoxy powder coated
  Handset Material Cycoloy with stainless steel spiral cord
  Keypad Rubber Keypad
  Ringing Tone Shrill warble tone 80 dBA @ 1 metre typical
  Hook switch Electronic / magnetic with no visible moving parts
  M.T.B.F. Calculated to have an M.T.B.F. in excess of 60,000 hours using
  Weight

Up to 5 kg depending on option

  Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C





  Analogue Version
  Power Supply Drawn from telephone line
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
  SIP Version
  Power Supply PoE or 12V DC
  Power Consumption

-Idle:1.5W

-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer volume

- 90~95dB(A) at a distance of 1 m

- 110dB(A) at a distance of 1 m (for external horn speaker)
  3G Version
  Power Supply 12V DC
  Power Consumption

-Idle:0.3W

-Active: 1.5W
  Communication Type Full duplex
  Ringer volume 90~95dB(A) at a distance of 1 m
  Program Method Remote programming by SMS




  Frequency
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
  Ambient conditions
  Protection type IP 66 as per EN60529
  Operating temperature -40°C to +70°C
  Storage temperature -45°C to +85°C





Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display 0





Technical Specification

Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display

┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄

Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display 1









Features

Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display

┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄



Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display 2

Standard Analogue phone/VoIP SIP phone with LCD display

Vandal resistant handset and cord

Weather proof protection to IP66

Full keypad with memory

Wall mounting or Pole mounitng, Simple installation

Inductive coupler fitted as standard for hard of hearing







Packing & Delivery

Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display

┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄

IMG_0233

IMG_4080



  Unit size 339*246*126 (mm)
  Carton size 200*300*440 (mm)
  Packaging materials pearl cotton, carton
  Net weight 6.2 KG
  Gross weight 7 KG



Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display 5

  Port Shenzhen

  Lead Time

(If you finish the payment today, your order will ship out within the delivery date.)

Quantity(Pieces) 1-10 11-50 51-200 >200
Est. Time(days) 1 10 20 To be negotiated







 Our Company

Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display

┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄



J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.

Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display 6

FAQ

Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display

┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄



Q: Do you have any MOQ limit for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Low MOQ, 1pc is available



Q: What about the lead time for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.

And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q:Will you do OEM or Customzied work for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Yes. Any OEM/ODM/Customzied work are welcomed!!! Pls send your email to us about it.



Q: How is your after sell service?

A: 2 years warranty time, 7*24 hours online professional technical support!!!

If you have more questions, Pls kindly contact with us, Thank you.
