Home > products > Industrial VoIP Phone > Vandal Proof Industrial VoIP Phone Emergency Telephone Industrial Intercom For Elevator

Vandal Proof Industrial VoIP Phone Emergency Telephone Industrial Intercom For Elevator

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, ISO9001

Model Number: JR301-SC

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Reconsideration

Packaging Details: pearl cotton, carton

Delivery Time: 2-5 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

rugged voip phone

,

voice over ip phone

Material:
Stainless Steel
Customized:
Support
Warranty:
2 Years
Weather Protection:
IP65
Button:
Stainless Steel
Handsfree:
Yes
Vandal Resistant:
Yes
Unit Size:
136*206*42 (mm)
Weight:
1.6 KG
Material:
Stainless Steel
Customized:
Support
Warranty:
2 Years
Weather Protection:
IP65
Button:
Stainless Steel
Handsfree:
Yes
Vandal Resistant:
Yes
Unit Size:
136*206*42 (mm)
Weight:
1.6 KG
Product Description

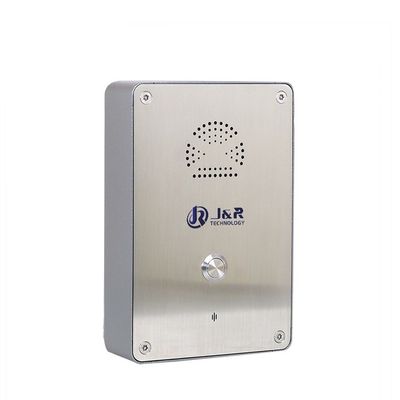

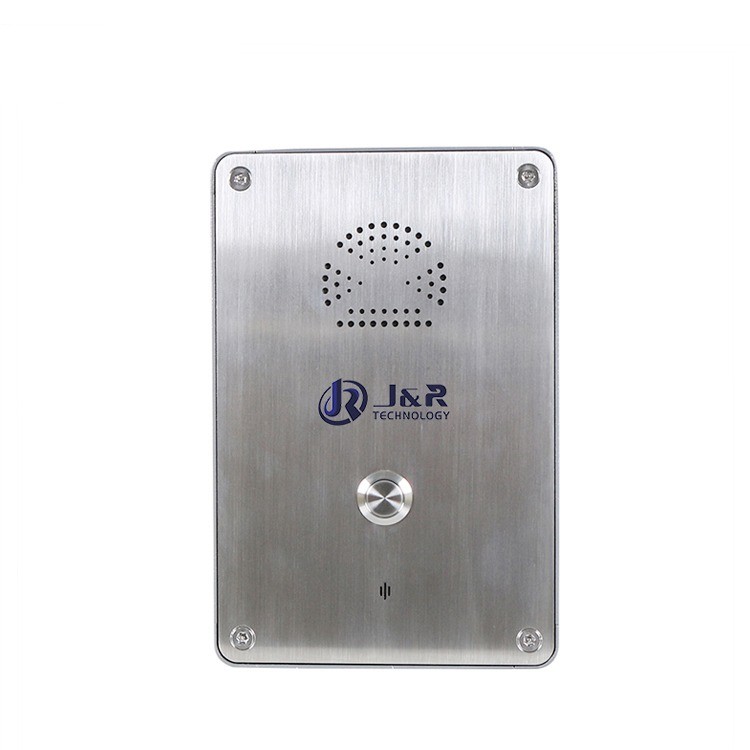

VoIP Vandal-proof Emergency Telephone Industrial Intercom for Elevator



The handsfree call box is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.





APPLICATIONS

Ideal for Elevator, Lifts, Bus station, Parking lots, Doors, Metro, Subway, Tunnels, Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

- Standard Analog Phone, VoIP/SIP Phone, GSM/3G Phone

- Robust housing, constructed of stainless steel, back-cover made of cold rolled steel with powder coated

- Vandal resistant metal button

- Weather proof protection: IP55 to IP65



- Hands free operation

- Programmable for speed-dialing (PPT)

- On wall mounting, simple installation

- 4 X Tamper proof screws for mounting



- Phone line powered (Analog)

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- CE, FCC, RoHS, ISO9001 compliant





TECHNICAL PARAMETERS

Voice Features

       - Support 2 lines SIP, SIP 2.0 (RFC3261)

- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

- Echo cancellation: Support G.168 and hand-free can support 96ms

- Supports full duplex.

- SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer

- SIP support 2 servers, user can through each server to calling in and out



Network Features

- WAN/LAN: support Bridge mode

- Support PPPoE for xDSL

- Support VLAN

- Support Stun penetration

       - Support DHCP get IP on WAN port



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C






PACKAGE

Unit size: 210 *140 *50 (mm)

Carton size: 340 *235 *165 ( mm )

Packaging materials: pearl cotton, carton

Gross weight: 3 KG

Net weight: 2 KG
