Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport

China Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport supplier
Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport supplier Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport supplier Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport supplier Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport supplier Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport supplier

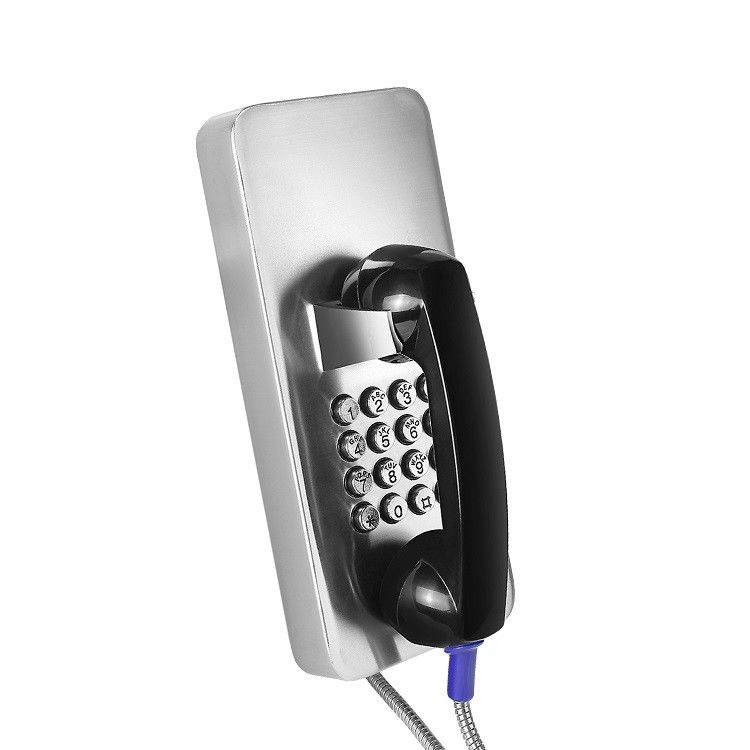

Large Image :  Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR205-FK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Full Keypad: Yes
Protection Type: IP55-IP65 Net Weight: 3 KGS
Dialing: MF (tone) Armored Cord: Yes
Magnetic Hook: Yes Power Supply: Telephone Line/POE/DC Powered
Application: Prison,Factory,other Public Area,jail,airport Product Name: Stainless Steel Courtesy Emergency Security Prison Telephone For Airport

Eva Jiang

sales5@jrteck.com

+86 13927453945

Product Description

Stainless Steel Courtesy Emergency Security Prison Telephone for Airport

This Prison Emergency Telephone is housed in stainless steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant

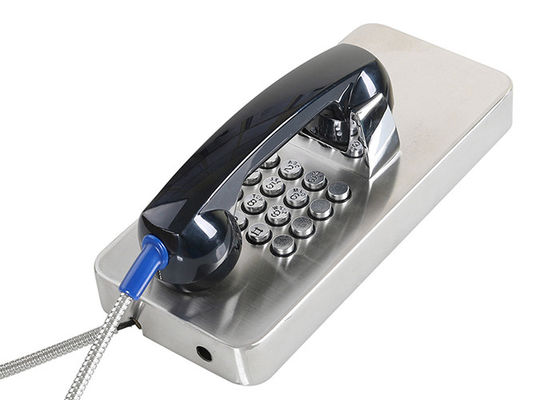

Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport





Main Features

Stainless Steel Courtesy Emergency Security Prison Telephone for Airport

1. Standard Analogue/ SIP/ GSM/ 3G Phone
2. Can be programmed remotely by tone phone or locally via keypad
3. Robust housing, constructed of stainless steel
4. Handset operation


5. Weatherproof and corrosion resisitant handset
6. Mini Size, on wall mounting, simple intallation
7. Weather proof protection IP54-IP65
8. Inductive coupler fitted as standard for hard of hearing


9. Tamper resistant fixings
10. Fast-fit terminal connection
11. Full Rugged & Durable keypad (16keys),easy to operate
12. Non-volatile memory


13. Stainless steel armoured handset cord
14. Four additional buttons programmable for speed dial
15. Inductive coupler fitted as standard for hard of hearing
16. CE, FCC, RoHS, ISO9001 compliant

Specification

Stainless Steel Courtesy Emergency Security Prison Telephone for Airport

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply 12V DC
Power Consumption -Idle:0.3W
-Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -25°C to +70°C
Storage temperature -25°C to +85°C


Application

Stainless Steel Courtesy Emergency Security Prison Telephone for Airport

This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport



Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport



PACKAGE of Rugged Airport Telephones

Stainless Steel Courtesy Emergency Security Prison Telephone for Airport

Unit size: 300 *120 *101 (mm)

Carton size: 340 *235 *165 (mm )

Packaging materials: Pearl cotton, Carton

Net weight: 3.5 KG

Gross weight: 4 KG

Courtesy Emergency Security Prison Telephone Stainless Steel Full Keypad For Airport





Certifications

Stainless Steel Courtesy Emergency Security Prison Telephone for Airport

Weatherproof Vandal Resistant Telephone Volume Controlled For Jail 247 * 130 * 132 Mm


Our Partner

Stainless Steel Courtesy Emergency Security Prison Telephone for Airport

Our partner:ABB,Honrywell,Thales,Siemens,Avaya,Zenitel,Huawei,LG ,MTR etc



Weatherproof Vandal Resistant Telephone Volume Controlled For Jail 247 * 130 * 132 Mm


FAQ

Stainless Steel Courtesy Emergency Security Prison Telephone for Airport

Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available

Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.

Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.

Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.

Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.

Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.

Q: When can I receive your quotation?
A: Once learn your detail requirements.

Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
