Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

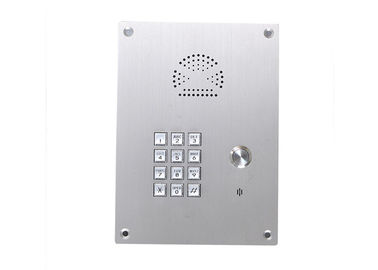

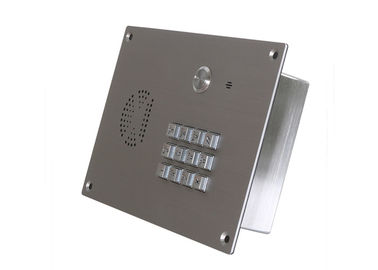

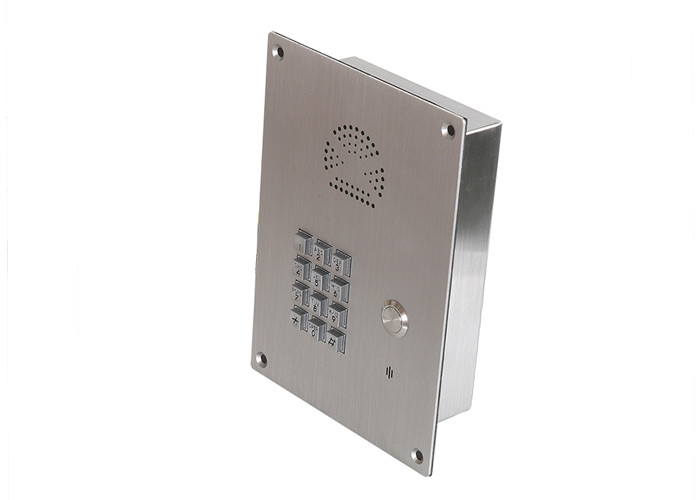

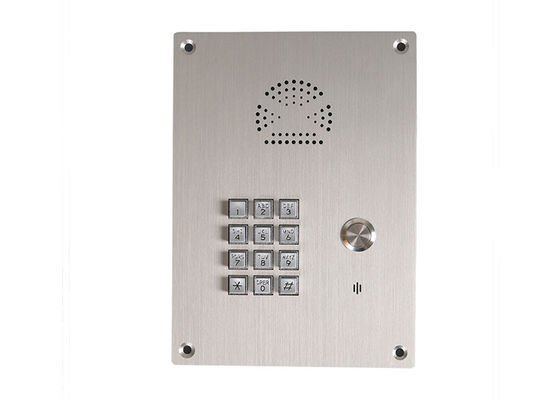

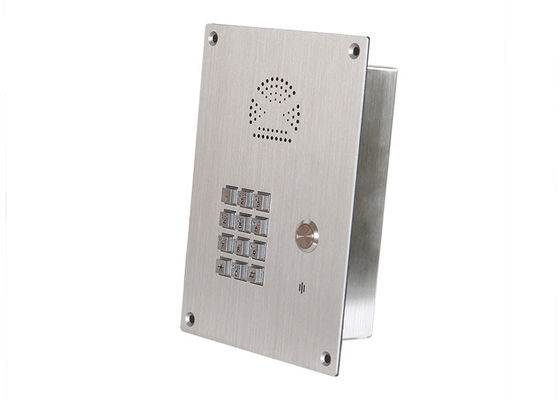

Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type

China Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type supplier
Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type supplier Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type supplier Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type supplier Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type supplier Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type supplier Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type supplier

Large Image :  Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR308-FK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Warranty: 2 Years
Weather Protection: IP55-IP65 Handsfree: Yes
Unit Size: 150*200*50(mm) Weight: 2 KG
Version: Available In Analog, VoIP, GSM/3G Power Supply: Phone Line/ 12V DC/ PoE

Eva Jiang

sales5@jrteck.com

+86 13927453945



Product Description

Analogue Handsfree Hotline Flat Keypad Emergency Clean Room Telephone for Elevator

This Flush mounting Clean Room Phone JR308-FK-IW is housed in stainless steel box and manufactured to a high standard, this Vandal Resistant Clean room Telephone offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all time.

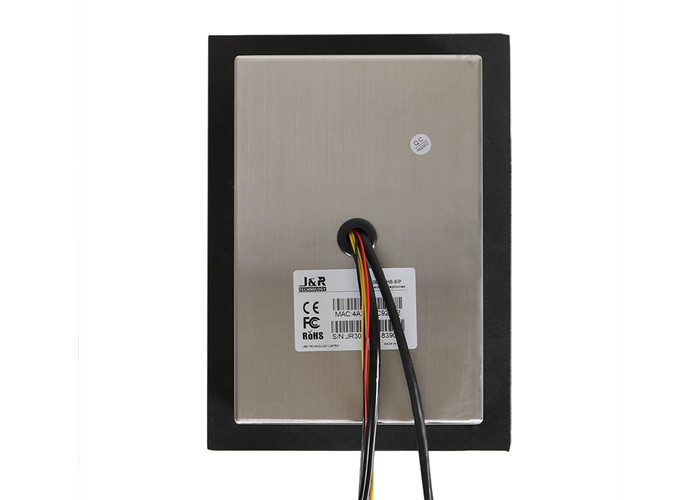

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.



Main Features

Analogue Handsfree Hotline Flat Keypad Emergency Clean Room Telephone for Elevator

Features:
- Standard Analogue telephone, available for SIP, GSM/3G phone
- Robust housing, constructed of stainless steel
- Vandal resistant metal button and rugged keypad(backlight keypad optional)
- Hands free operation
- Can be programmed remotely by tone phone
- Non-volatile memory
- Flush mounting, simple installation
- Weather protection IP54-IP65
- 4 X Tamper proof screws for mounting
- Fast-fit terminal connection
- Telephone line powered (Analogue)
- CE, FCC, RoHS, ISO9001 compliant






Specification

Analogue Handsfree Hotline Flat Keypad Emergency Clean Room Telephone for Elevator

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply 12V DC
Power Consumption -Idle:0.3W
-Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -25°C to +70°C
Storage temperature -25°C to +85°C


Packing

Analogue Handsfree Hotline Flat Keypad Emergency Clean Room Telephone for Elevator
Unit size: 150*240*32 (mm)
Carton size: 340 *235 *165 ( mm )
Packaging materials: pearl cotton, carton
Gross weight: 3 KG
Net weight: 2 KG

Stainless steel Elevator Emergency Phone Analogue Handsfree Hotline Emergency Type


Application

Analogue Handsfree Hotline Flat Keypad Emergency Clean Room Telephone for Elevator

This clean room telephone is for Clean room, Sterile areas, Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc







Certifications

Analogue Handsfree Hotline Flat Keypad Emergency Clean Room Telephone for Elevator



Our Company

Analogue Handsfree Hotline Flat Keypad Emergency Clean Room Telephone for Elevator



J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.



As a reliable supplier of different kinds of industrial telephones, we have been sharing the equipments and systems with different customers and users all over the world. The professional service and excellent quality made us enjoy the reputation over more than 80 countries, including USA, China, Thailand, Malaysia, Turkey, Israel, Greece, Spain, France, UK, Denmark, South Africa, Australia, Mexico, Colombia, Chile etc.








Dedication and profession have been our pursuing goal during any procedures of our production, not only in developing and quality controlling, but also in marketing and after sales. We serve any single potential customer with special individual solutions and systems.





Choose J&R technology, choose reliable talks.









FAQ

Analogue Handsfree Hotline Flat Keypad Emergency Clean Room Telephone for Elevator

Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available

Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.

Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.

Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.

Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.

Q:Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.

Q: When can I receive your quotation?
A: Once learn your detail requirements.

Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
