Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR201-FK
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days after payment
Payment Terms: L/C, T/T,paypal, Western Union
Supply Ability: 3000 sets per month
Detail Information
Material: Cold Rolled Steel Or Stainless Steel Warranty: 2 Years
Weather Protection: IP55-IP65 Handset: ABS Material With Armored Cord
Size: 247 *130 *132 (mm) Weight: 3.5 KG
Version: Analogue/SIP/GSM Powered: Telephone Line Powered Or DC12V
Product Name: Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone For Public
High Light:

inmate phone

,

prison visitation phone


Product Description

Product Description

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone for Public

This Prison Emergency Telephone is housed in stainless steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant

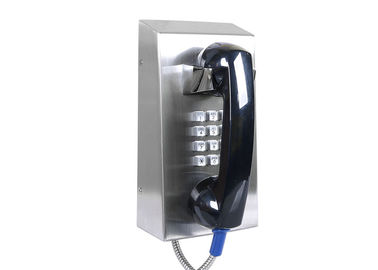

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 0

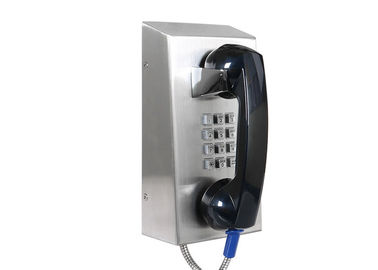

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 1



Main Features

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone for Public

Features:
- Standard Analogue Phone, SIP Phone, Avaliable for GSM/3G Phone
- Telephone line powered for Analog Phone,POE or DC12V powered for IP version
- 24V DC input or Power over Ethernet (PoE)
- RJ45 Ethernet socket through IP67 plug connector
- Robust housing, constructed of stainless steel
- Vandal resistant handset and armored cord
- Full Rugged & durable keypad
- Can be programmed remotely by tone phone or locally via keypad
- On wall mounting, simple installation
- Weather proof protection up to IP65
- Impact, shock, fall and vibration proof,able to perform in difficult environments
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliant

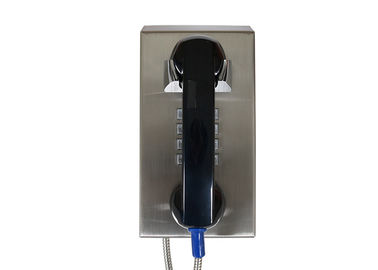

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 2



Specification

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone for Public

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.

Analogue Version
Power Supply
From the analogue telephone network
Supply Voltage
24 VDC to 65 VDC
Supply Current
20 mA DC to 100 mA DC
Ringer Volume
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method
DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply
PoE or 12V DC
Power Consumption
-Idle:1.5W
-Active:1.8W
SIP Protocol
SIP 2.0 (RFC3261)
Support Codec
G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type
Full duplex
Ringer volume
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply
12V DC
Power Consumption
-Idle:0.3W
-Active: 1.5W
Communication Type
Full duplex
Ringer volume
90~95dB(A) at a distance of 1 m
Program Method
Remote programming by SMS
Frequency
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type
IP 66 as per EN60529
Operating temperature
-25°C to +70°C
Storage temperature
-25°C to +85°C


Application

Vandal Resistant Cold Rolled Steel Prison Telephone for Public

This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

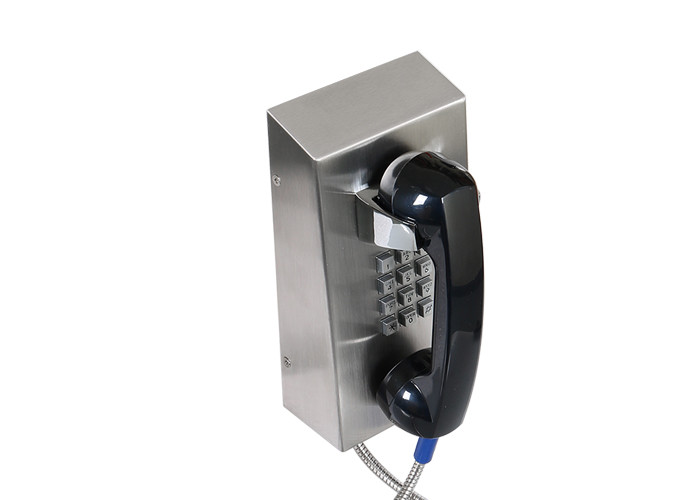

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 3

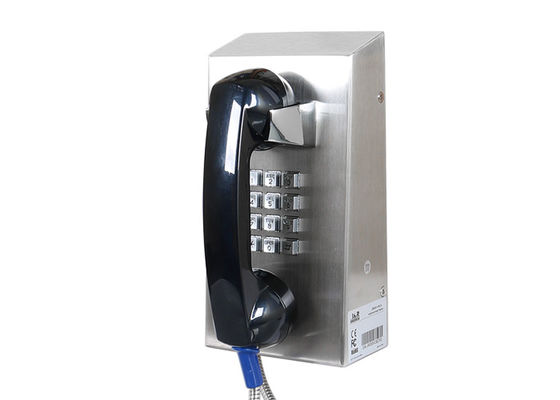

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 4
Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 5


Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 6

PACKAGE of Rugged Airport Telephones

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone for Public


Unit size: 130*247*132 (mm)
Carton size: 340 *240 *160 (mm)
Packaging materials: pearl cotton, carton
Net weight: 2.5 KG
Gross weight: 3 KG

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 7



Certifications

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone for Public

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 8


Our Partner

Prison Weatherproof Vandal Resistant Telephone with Volume Control Button

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone IP55-IP65 For Public 9


FAQ

Stainless Steel IK10 Prison Telephone Vandal Resistant Telephone for Public

Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available

Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.

Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.

Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.

Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.

Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.

Q: When can I receive your quotation?
A: Once learn your detail requirements.

Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
