Flush mounted steel telephone with fully keypad for elevator , clean room

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR309-FK-IW
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Stainless Steel Customized Unit: Support
Warranty: 2 Years Weather Protection: IP55-IP65
Version: Analog, SIP, GSM/3G Installation: Flush Mounted
Unit Size: 240 *150 *31.5 (mm) Weight: 2 KG
Fully Metal Keyapd: Yes
High Light:

lift emergency phone

,

lift intercom phone


Product Description

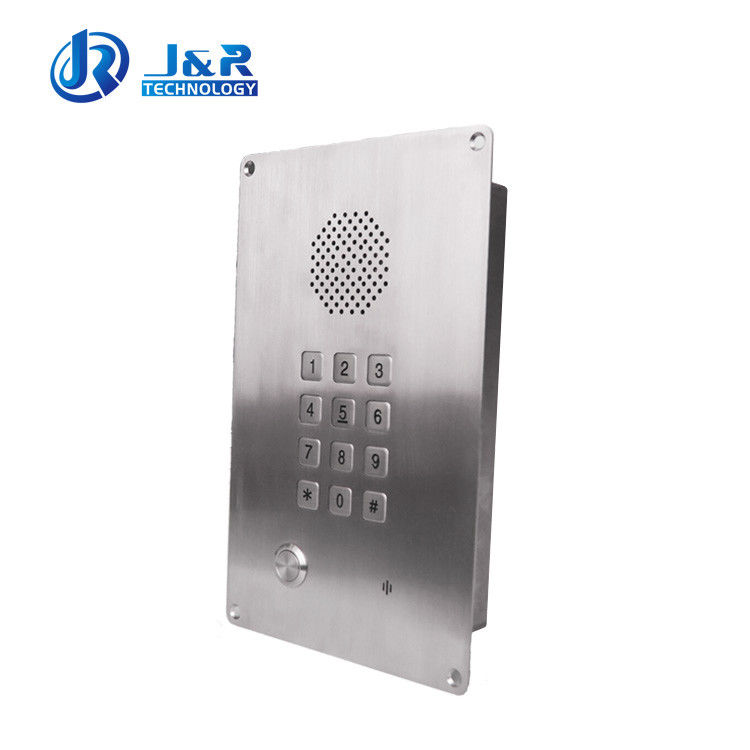

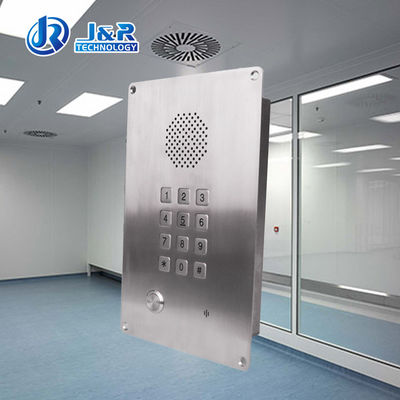

Flush-mounted steel telephone with fully keypad for elevator,clean room

The Flush Mounted Emergency Telephones is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.



Application

Idead for Clean room, Schools, Streets, Public square, Court houses, Rail platforms, Car-parks, Police stations, Hospitals, Gate entry, Firefighter, Industrial, Prisons, Jail, Guard Stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

- Available in Analog, VoIP/SIP, and GSM/3G version

- Robust housing, constructed of stainless steel

Weather proof protection: IP55-IP65



- Vandal resistant metal button, Programmable for speed-dialing (PPT)

- Hands free operation,Fully dial keypad

- Inductive Coupler Fitted as Standard for Hard of Hearing


- Available for a full-duplex intercom
- Built in Ringer, which provides penetrating calling signal
- With a built-in 8 ohm & 0.5W speaker and a microphone,available for making hands-free calls



- In wall mounting, simple installation

- 4 X Tamper proof screws for mounting

- CE, FCC, RoHS, ISO9001 compliant



TECHNICAL PARAMETERS

Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



PACKAGE
Unit size: 240 *150 *31.5 (mm)
Carton size: 340 *235 *165 ( mm )
Packaging materials: pearl cotton, carton
Gross weight: 3 KG
Net weight: 2 KG
