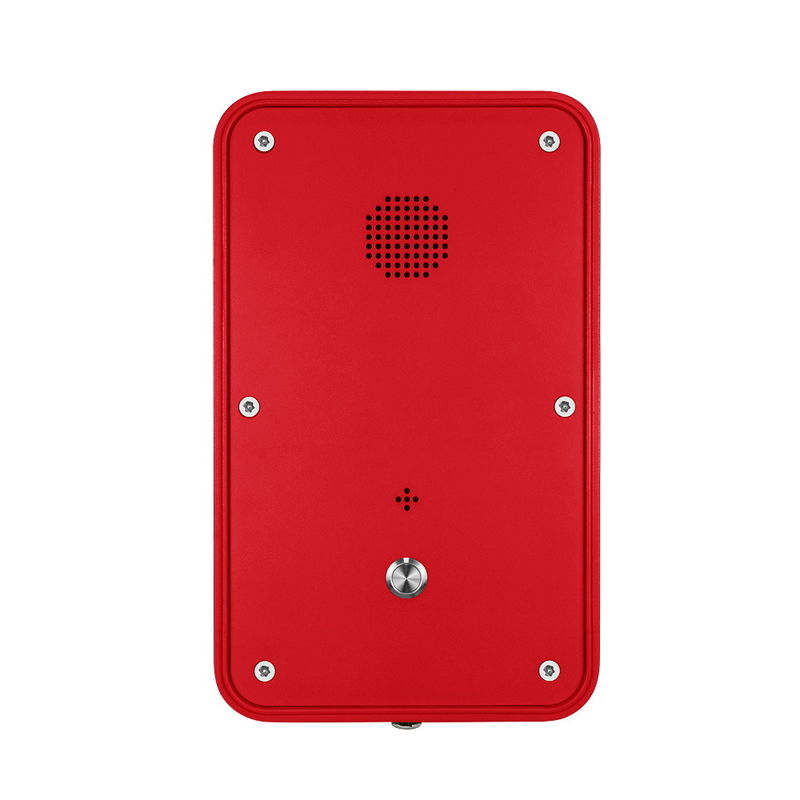

Impact Resistant Hands Free Industrial VoIP Phone with Speed Dial Buttons

Impact Resistant Hands Free Industrial VoIP Phone with Speed Dial Buttons

Brand Name: J&R
Model Number: JR104-SC
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001:2015
Material:
Aluminum Alloy
Weather Resistant:
IP66
Power Supply:
Power Over Ethernet (PoE)
Size:
246 *339 *109 (mm)
Color:
Orange, Yellow, Blue, (or Optional)
Installation:
Wall/ Pillar Mounting
Net Weight:
6 KG
Anti-vandal:
Yes
Warranty:
2 Years
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

rugged voip phone

,

weatherproof voip phone

Product Description

Impact Resistant Hands Free Industrial Emergency Call Box with Speed Dial Buttons



This heavy duty hotline telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



Main Features of the Impact Resistant Hands Free Industrial Emergency Call Box with Speed Dial Buttons



- Standard SIP/VoIP phone
- Aluminum alloy die-casting body
- Weather proof protection to IP66



- Hands free operation
- Programmable for auto-dial

- Wall / Pillar mounting, simple installation



- CE, FCC, RoHS, ISO9001 compliant
- External power supply or PoE (SIP)

- RJ45 port connector for SIP phone





Applications of the Impact Resistant Hands Free Industrial Emergency Call Box with Speed Dial Buttons
This weatherproof industrial telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.




Technical Parameters of the Impact Resistant Hands Free Industrial Emergency Call Box with Speed Dial Buttons



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)





Package of the Impact Resistant Hands Free Industrial Emergency Call Box with Speed Dial Buttons
Unit Size: 339*246*109 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 5 KG
Gross weight: 6 KG
