Vandalism Resistant Stainless Steel Corded Phone For Correctional Center Inmate

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR201-FK-white
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Cold Rolled Steel Vandalproof Handset: Yes
Metal Keypad: Yes Armored Cord: Yes
Magnetic Hook: Yes Color: White
Warranty: 2 Years Communication Type: Full Duplex
High Light:

jail telephone

,

prison visitation phone


Product Description

Vandal Resistant Telephone for Correctional Center Inmate, Rugged Analog Prison Telephone



This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.





MAIN FEATURES

-Standard Analogue phone
-Robust construction, Vandal resistant
-Weather protection IP54-IP65
-Tamper resistant fixings

-Simple installation
-Fast-fit terminal connection
-Full rugged Keypad
-Can be programmed remotely by tone phone or locally via keypad
-Non-volatile memory

-Telephone line powered (Analog)
-Weatherproof and corrosion resistant handset
-Stainless steel armoured handset cord
-CE, FCC, RoHS compliant





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C





PACKAGE

unit size: 247 *130 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3.5 KG

Gross weight: 4 KG

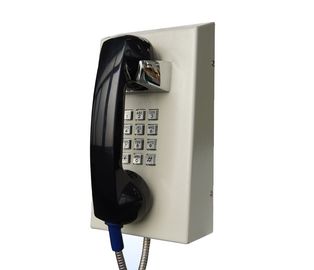

Vandalism Resistant Stainless Steel Corded Phone For Correctional Center Inmate 0
